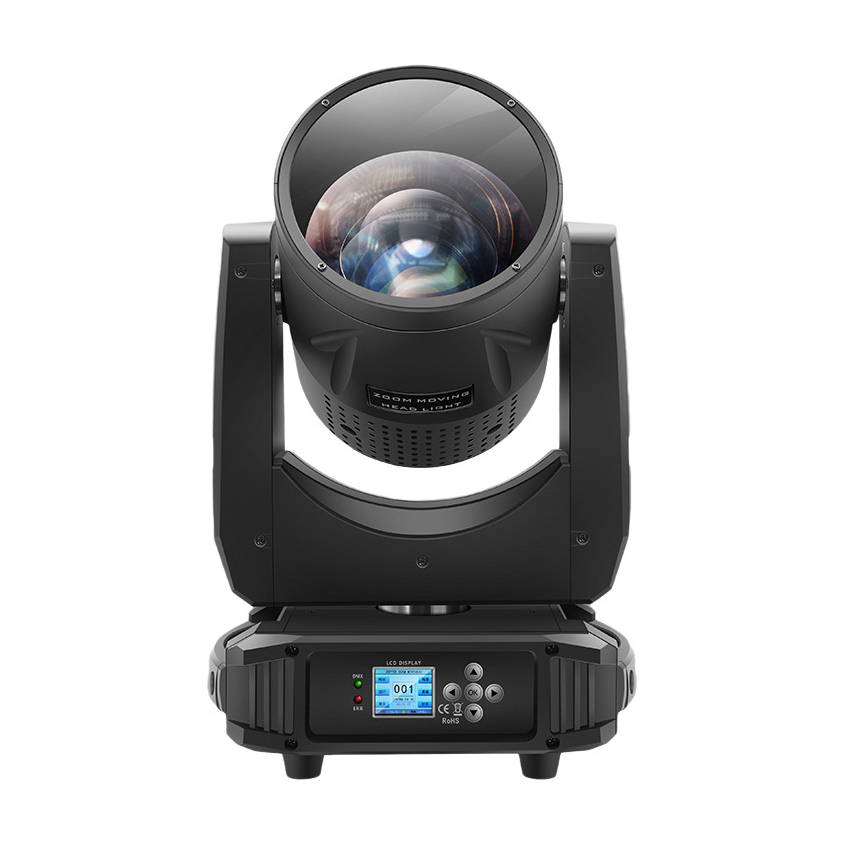

FD-DM480
Fondlites
Light Source
Leds:480W Bulb
Average life: 50,000 hours
Color temperature:7000K
Color temperature correction: With CTO, 3200K-6600K
Beam angle:1.9°
Lens Diameter:180mm
Lumen:29000LM
Power Supply
Voltage:AC100-240V 50-60Hz
Power :600W
Optical System
Optics: High-precision optical lens.
Dimmer: 0-100% linear dimmer
Strobe: 1-20 times/second
Color wheel: 13 colors + white light, two-way variable speed rainbow effect
Gobo wheel: 17 fixed gobos + white light
Atomization: 1 atomizing mirror
Double prism: 8-16 prism bidirectional variable speed rotation
Movement
X-axis: 540°, 16Bit
Y- axis: 270°, 16Bit
Control
Control panel: LCD display
Control protocol: DMX512
Construction
Housing Material:Aluminum
Housing Color: Black
Connections
DMX connector: 3Pin/5Pin XLR
Working Environment
Working environment:-20°C ~ 40°C
IP rate: IP20
Packages
Product Size: 400x280x640mm
Net weight: 21.5Kg
Light Source
Leds:480W Bulb
Average life: 50,000 hours
Color temperature:7000K
Color temperature correction: With CTO, 3200K-6600K
Beam angle:1.9°
Lens Diameter:180mm
Lumen:29000LM
Power Supply
Voltage:AC100-240V 50-60Hz
Power :600W
Optical System
Optics: High-precision optical lens.
Dimmer: 0-100% linear dimmer
Strobe: 1-20 times/second
Color wheel: 13 colors + white light, two-way variable speed rainbow effect
Gobo wheel: 17 fixed gobos + white light
Atomization: 1 atomizing mirror
Double prism: 8-16 prism bidirectional variable speed rotation
Movement
X-axis: 540°, 16Bit
Y- axis: 270°, 16Bit
Control
Control panel: LCD display
Control protocol: DMX512
Construction
Housing Material:Aluminum
Housing Color: Black
Connections
DMX connector: 3Pin/5Pin XLR
Working Environment
Working environment:-20°C ~ 40°C
IP rate: IP20
Packages
Product Size: 400x280x640mm
Net weight: 21.5Kg
