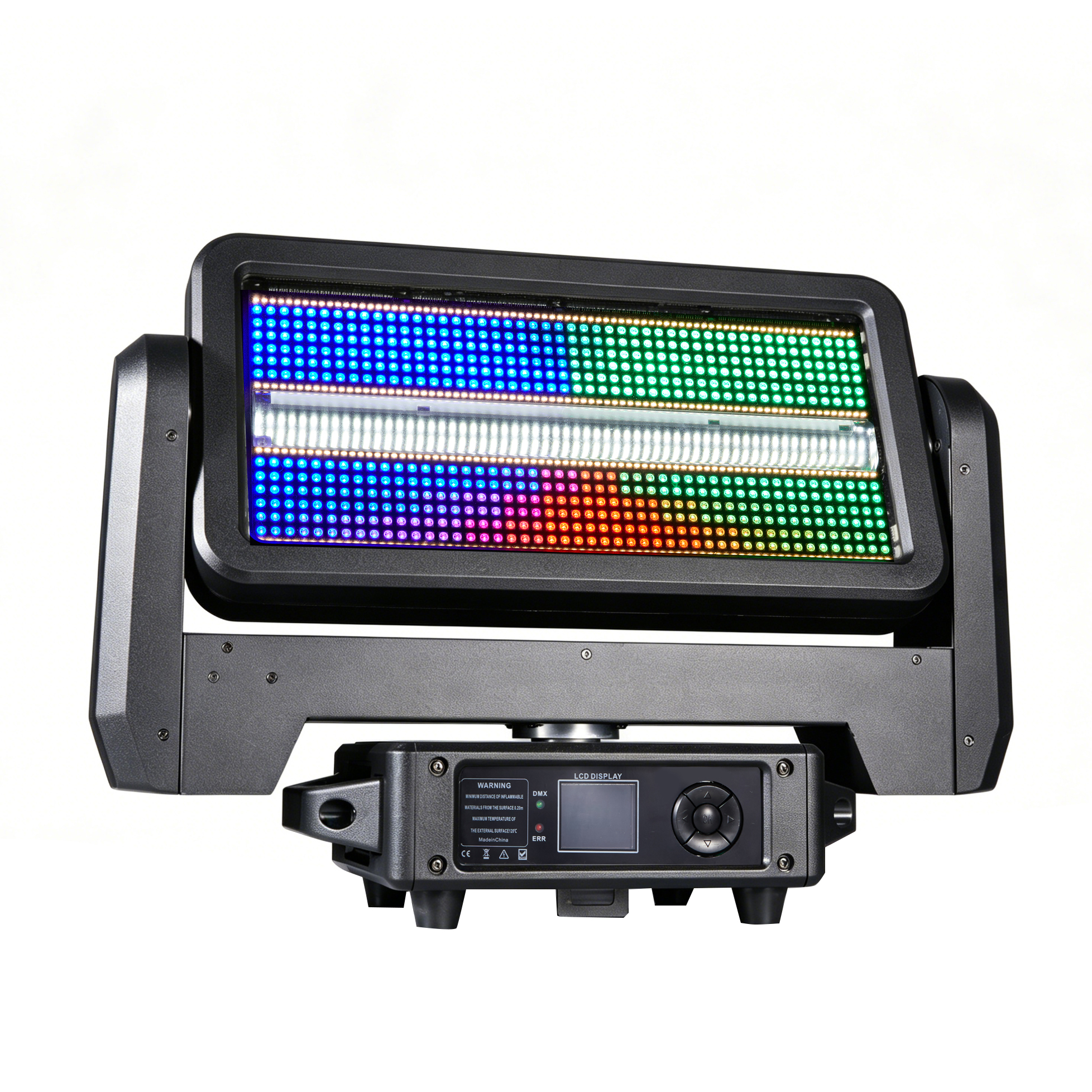

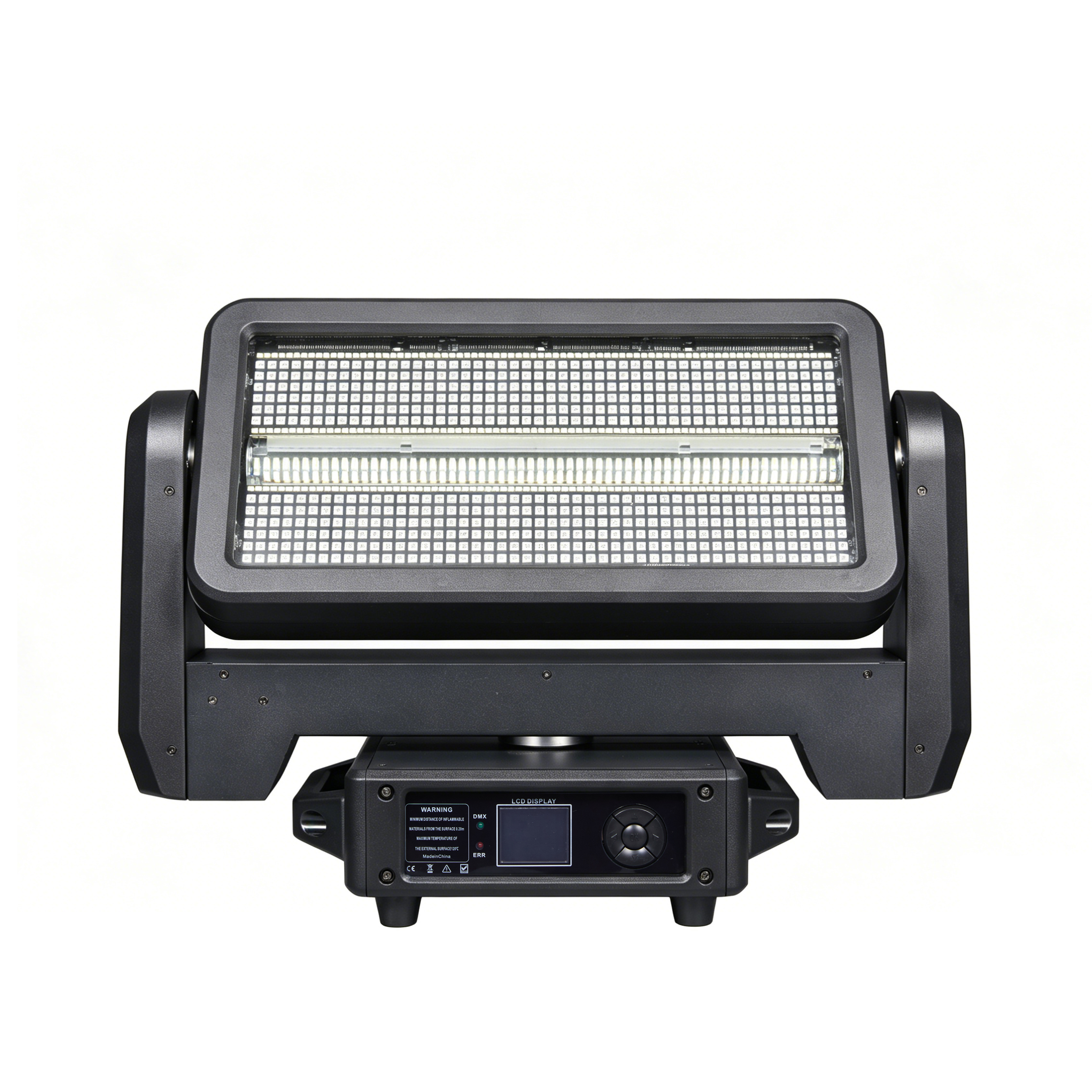

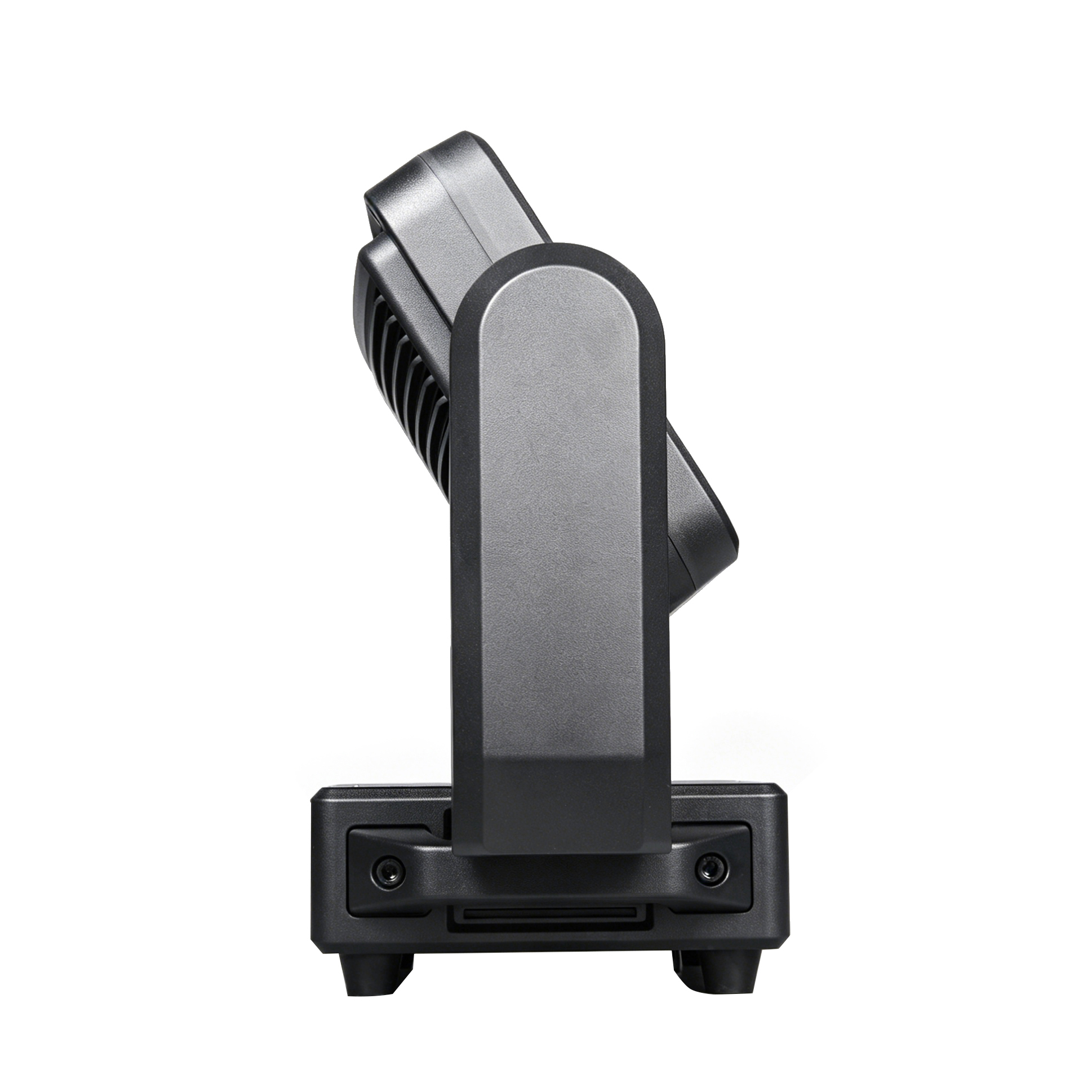

360° Infinite Rotation X Strobe Moving Head Light for Events Concert FD-STMX1000

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Light source: 3in1 RGB 576*0.5W 96 Zones
2in1 White 240*2W 56 Zone
White 240*3W 20 Zones
Power: 1000W
X Tilt angle: 360° rotation
Protocol: DMX-512, RDM

Availability:
Quantity:
  • FD-STMX1000

  • Fondlites

Light Source

3in1 RGB 576*0.5W 96 Zones

2in1 White 240*2W 56Zone

White 240*3W 20 Zones

LED Lifespan: 50,000 hours


Power

Input Voltage: 100-220V, 50/60Hz

Power Consumption: 1000W


Optical system
Advanced optical system


Control and Program
Protocols:ArtNet ,Auto ,DMX512, self-propelled, master-slave, voice control, with RDM

DMX Channel:11CH / 28CH / 49CH / 96CH

Dimming: 32bit 0~100% linear dimming

Display: Illuminated graphic LCD

Cooling: Temperature controlled, overheating protection

Features: Flash + dyeing + effect + shaking head

Stroboscopic frequency: 1~30hz


Beam Angle: 120°

Y Tilt angle: 190°

X Tilt angle: 360° rotation


Connectors

Data In/Out: XLR 5-Pin or 3-Pin In/Out


Work environment

Appearance: metal, black

Working temperature: -30 ℃ ~50 ℃

Protection Rating: IP20

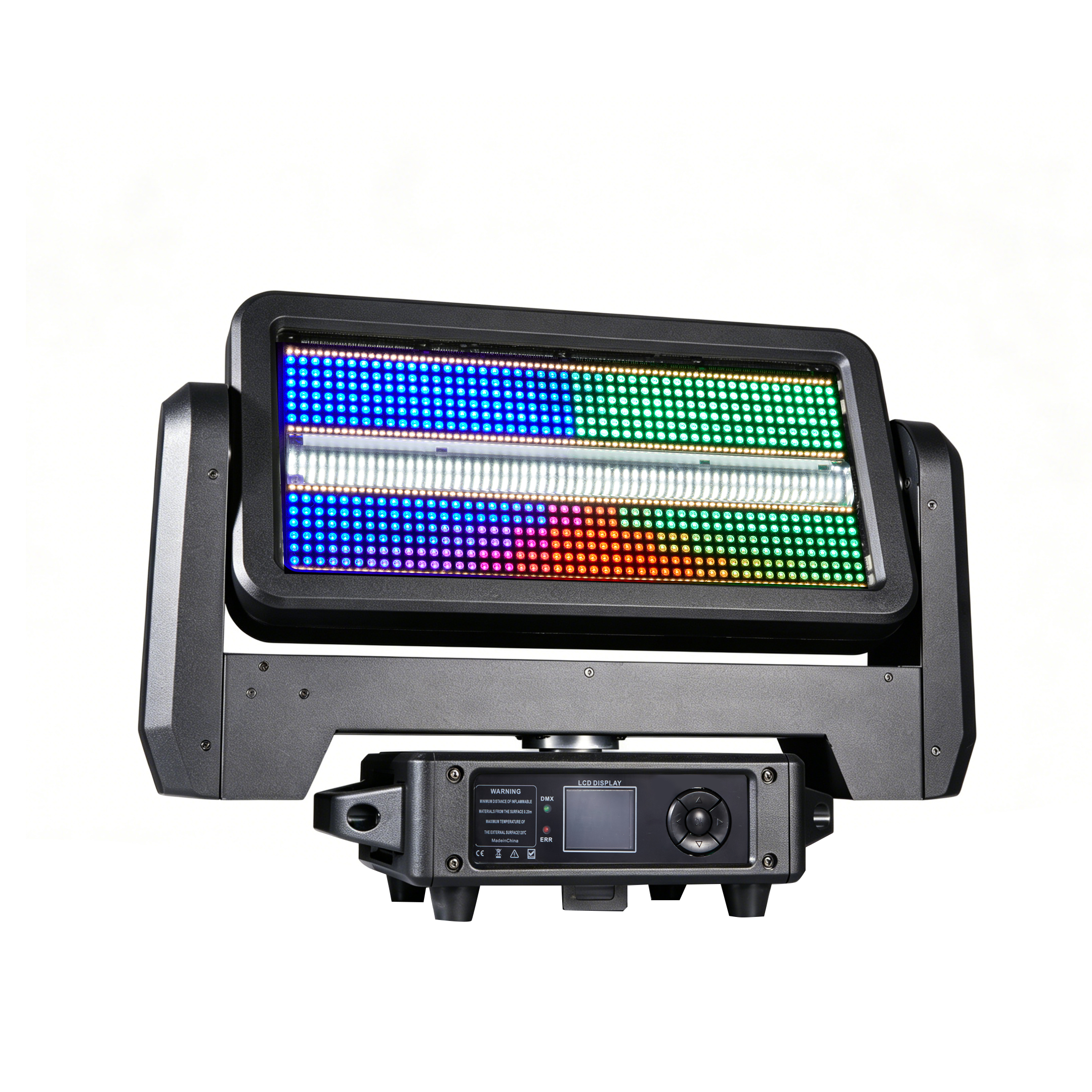

360° Infinite Rotation X Strobe Moving Head Light for Events Concert

11acd5abca773ef15ab4c270d9ee4f11



Take your lighting productions to the next level with this high-performance 1000W LED Moving Head Strobe Wash Light, engineered for concerts, festivals, television studios, theaters, clubs, and large-scale live events. Combining ultra-bright white strobe, vibrant RGB color mixing, pixel mapping, and fast pan/tilt movement, this fixture delivers outstanding visual impact for any professional lighting application.

Brilliant Multi-Source LED System

Equipped with three independent LED arrays, this fixture provides exceptional brightness and creative flexibility:

  • 576 × 0.5W RGB 3-in-1 LEDs divided into 96 controllable zones for stunning pixel mapping and dynamic color effects.

  • 240 × 2W Cool White LEDs divided into 56 independent zones for powerful strobe performance.

  • 240 × 3W White LEDs divided into 20 zones, producing intense white output with excellent punch and clarity.

Independent zone control enables spectacular chase sequences, animated graphics, and advanced lighting effects that are ideal for professional productions.

Dynamic Moving Head Performance

Unlike traditional strobe fixtures, this unit features a moving head design with:

  • 360° continuous X-axis rotation

  • 190° Y-axis tilt

The combination of high-speed movement and powerful lighting effects creates immersive aerial visuals and expands programming possibilities for lighting designers.

Smooth Dimming and High-Speed Strobe

Featuring 32-bit linear dimming, the fixture provides exceptionally smooth brightness transitions from 0–100% without visible stepping, making it suitable for both television broadcasting and live performances.

The adjustable 1–30Hz strobe frequency delivers everything from subtle flashing effects to intense high-energy strobes for concerts, EDM festivals, and stage productions.

Professional Control Options

Designed for modern lighting systems, this fixture supports multiple control methods, including:

  • DMX512

  • Art-Net network control

  • RDM remote device management

  • Auto Run

  • Master/Slave

  • Sound-Activated Mode

With selectable 11, 28, 49, and 419 DMX channels, the fixture can accommodate both simple installations and advanced pixel-mapped lighting systems.

Wide Wash Coverage

A generous 120° beam angle produces broad, even illumination, making the fixture ideal for stage washes, audience lighting, architectural effects, and background illumination while maintaining vivid color saturation.

Built for Professional Applications

Constructed with a durable black metal housing, the fixture is designed for demanding touring and installation environments. It operates reliably in temperatures ranging from -30°C to 50°C, ensuring dependable performance in both indoor and challenging venue conditions.

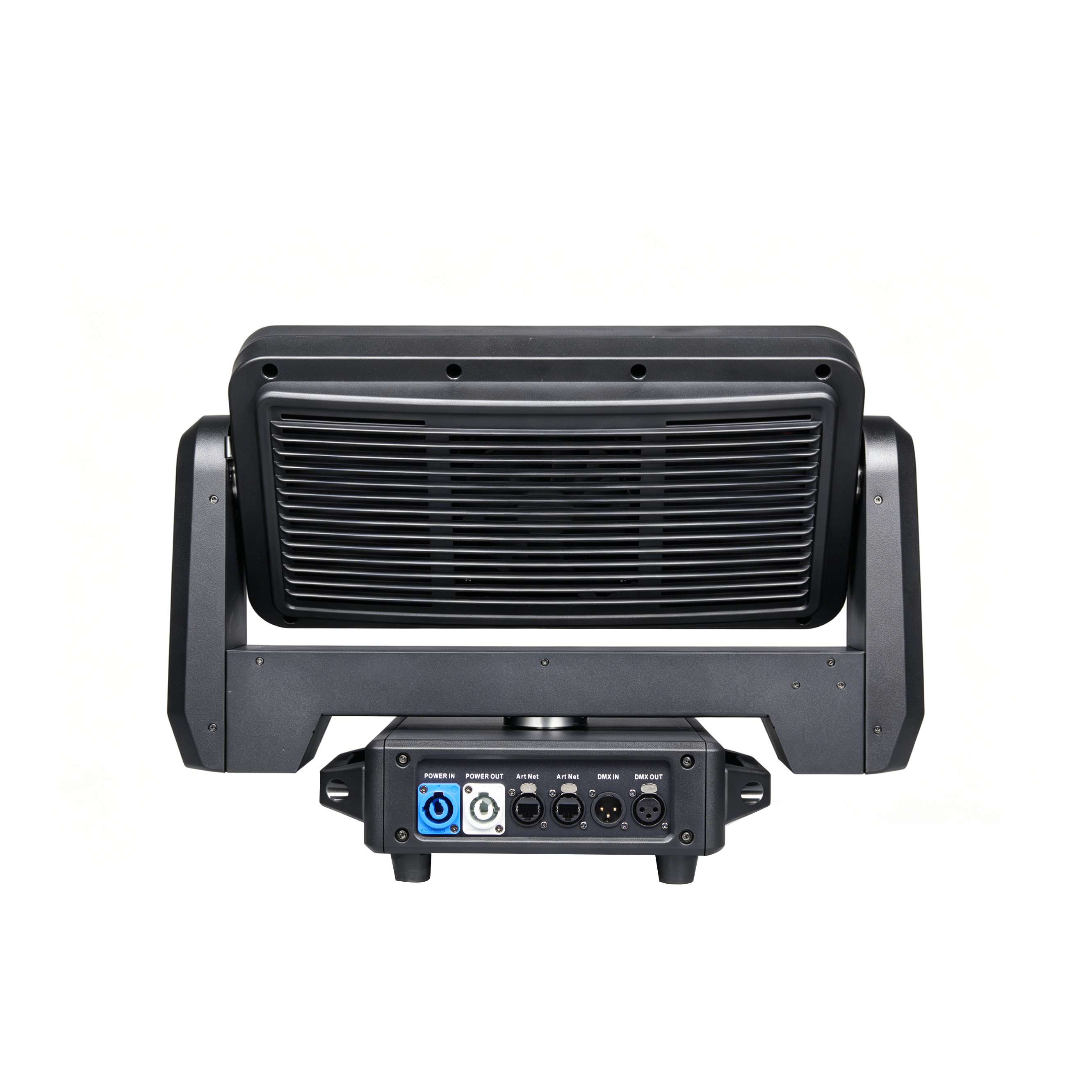

Integrated DMX512 input/output and power input/output connectors simplify installation and allow convenient daisy-chain connections for large lighting rigs.

Ideal for concerts, touring productions, theaters, TV studios, clubs, festivals, and rental companies

Whether used as a powerful audience blinder, dynamic pixel effect fixture, high-output strobe, or moving wash light, this versatile 1000W LED Moving Head Strobe Wash Light delivers exceptional brightness, precision control, and limitless creative possibilities for today's professional lighting designers.
