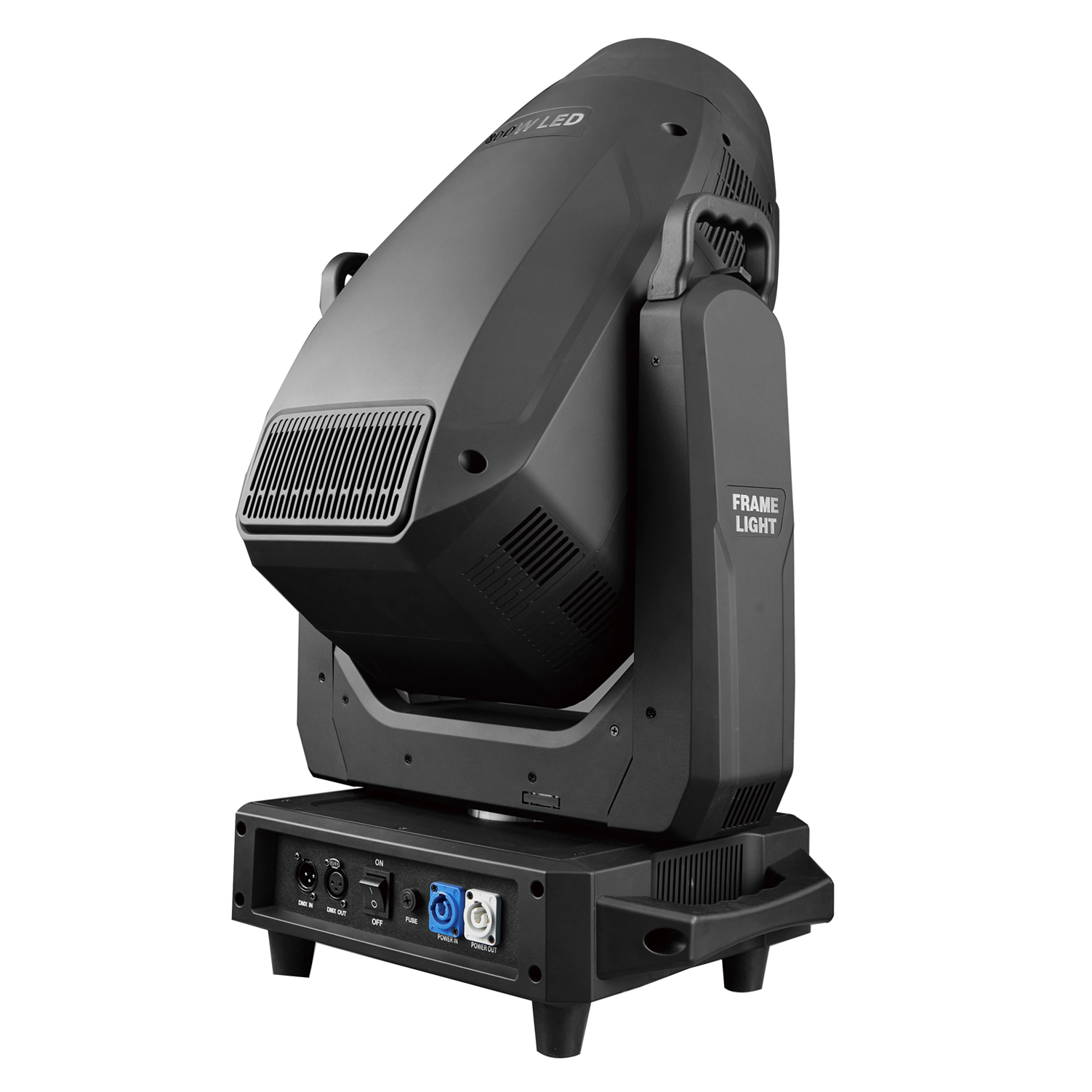

Mini 800W BSWF Zoom Profile Framing CMY Moving Head Spot Light FD-LF800BSWM

Mini 800W BSWF Zoom Profile Framing CMY Moving Head Spot Light

800W LED Frame Moving Head Light not only integrates beam, color mixing, atomization, and dimming functions, but also has the characteristics of flame retardancy, high temperature resistance, and foldable integration. It has bright and full colors, uniform distribution of light spots, clear imaging, and powerful penetration, which can reach high as 9100 lumens. Can be applied to the needs of concerts, theaters, TV shows, and other performances.

800W LED Frame Moving Head Light, with a total output voltage of AC100-240V, 50/60Hz, and a rated power of 900W. 800W LED module, with a lifespan of up to 20000 hours, a color temperature of 6500k, and a diameter of 150mm. In the color rendering index, in standard mode, Ra>75, and in high rendering mode, Ra>90. The luminous flux is 22000LM; The signal interface is an optional three chip/five core XLR socket; There are five control modes available: DMX512, RDM, self-propelled, master-slave, and voice control; The channel mode is 36 international standard DMX512 channels.

800W LED Frame Moving Head Light with a 2.7-inch touchscreen LCD display in both Chinese and English, capable of 180 degree rotation, available in six colors with white light; There are 3 prisms and 6 rows of mirrors in the prism disk, which have a super dazzling simulation of dynamic flames, flowing water and other dynamic effects. The independent CMY color mixing system and independent CTO 2800K-6500K linear adjustment can create rich color effects.

There are 7 plug-in fixed pattern pieces with an outer diameter of 25.4mm and white circles; Seven pattern pieces (removable) with an outer diameter of 26.9mm, an effective diameter of 16.5mm, and a thickness of 1.1mm. The cutting system can operate separately, with 4 independent cutting pieces, each piece can be individually turned off and rotated 90 °. 0 to 100% linear atomization, with good atomization effect. The aperture can be smoothly adjusted from 6% to 100%, and linear zoom can be achieved within 5 ° to 50 °. Dimming can be linearly adjusted from 0 to 100%. The maximum flicker frequency can reach 25Hz, and it can flash randomly and pulse, which is convenient and efficient. Horizontal scanning has 540 ° (16 bit accuracy scanning), vertical scanning has 270 ° (16 bit accuracy scanning), and comes with an automatic positioning system for quick positioning. XY adopts a five phase motor with magnetic encoding positioning function, and its protection level is IP20. It can operate completely in a working environment from 0 ° to 45 °, with a wide range of usable conditions.

The net weight of the product is 43KG, and the gross weight of the product is 51.5KG; The product size is 510L * 345W * 800H (mm), and the cardboard box size is 730 * 690 * 590 (mm). The foldable integrated light hook with integrated hooks is easy to install and will provide a new ideal choice for all stage lighting engineers.
