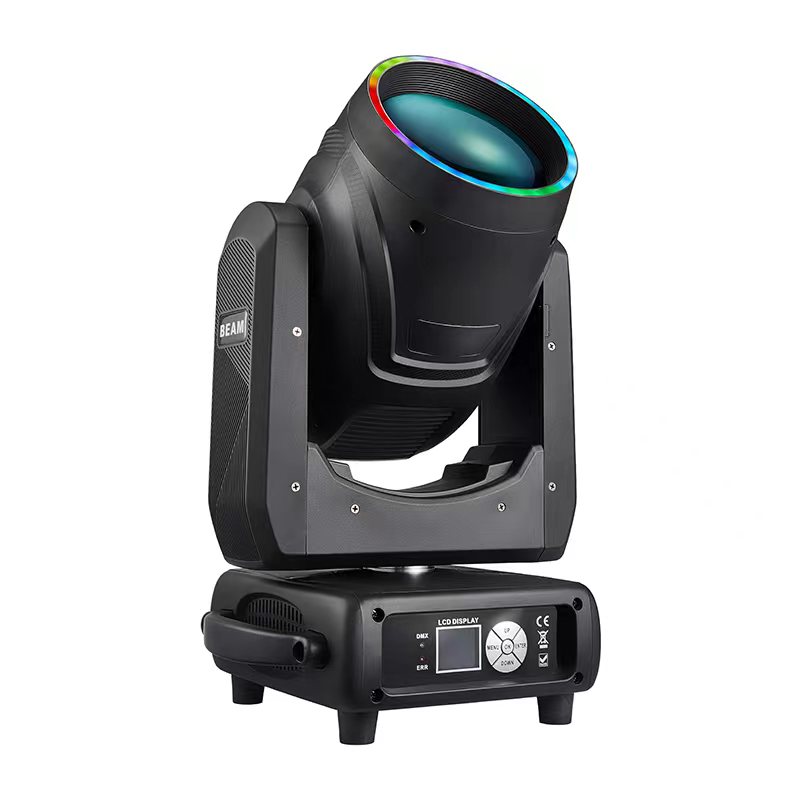

320W Beam With Strip Moving Head Stage Lights FD-DM320

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Original Philips light bulb/Phoenix bubble
48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotated independently in both directions
0-100% mechanical dimming
Fixed pattern disc with 17 pattern effects and white light
DMX512/WMDMX/self-propelled
Availability:
Quantity:
  • FD-DM320

  • Fondlites

Light Sources

Bulb: Phoenix bulb (Original Philips light bulb optional)

         AC/DC switch power supply


Power Supply

Voltage:AC100-240V  50-60Hz

Power :450W


Optical System

Atomization: with atomization effect

Dimmer: 0-100% mechanical dimming

Focus:Linear focusing, from near to far.Linear focusing

Color wheel: A color plate, each consisting of 14 color chips+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect.

Pattern disc: Fixed pattern disc with 14 pattern effects and white light

Prism: 48 prisms, 12 prisms, double prisms can be stacked and rotated independently in both directions.


Movement

Horizontal scan: 540°

Vertical scan: 270°


Control

Control:DMX512, Auto-run, master/slave,RDM

Channels: 16 channels

Display mode: LCD display



Working Environment

Working temperature: -20-40℃

IP rate: IP20





320W Beam With Strip Moving Head Stage Lights FD-DM320

3.18



*Beautiful dot matrix display with four light touch switches, capable of reversing 180 ° display

*The luminous flux is 7950lm, the color temperature can reach 8500K, and the output aperture is 152mm

*0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function, mechanical strobe is 1-12 F.P.S.

*Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation

*Equipped with horizontal and vertical fine automatic error correction functions.

*Using today's advanced technology to realize the remote sleep function, when the lamp is disconnected from the signal, it will automatically enter the sleep state, making the lamp more stable and safer, and you can set the sleep time by yourself.
