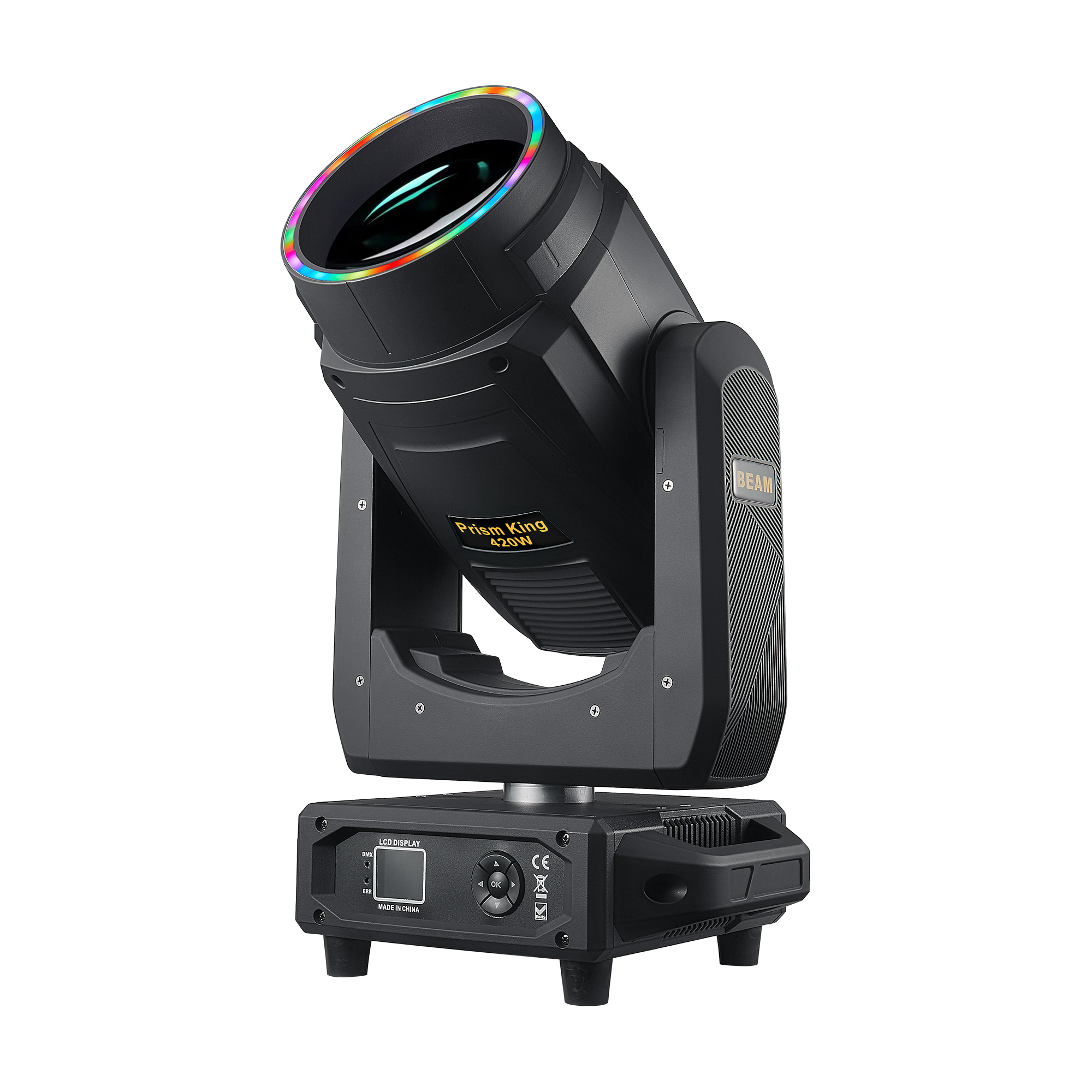

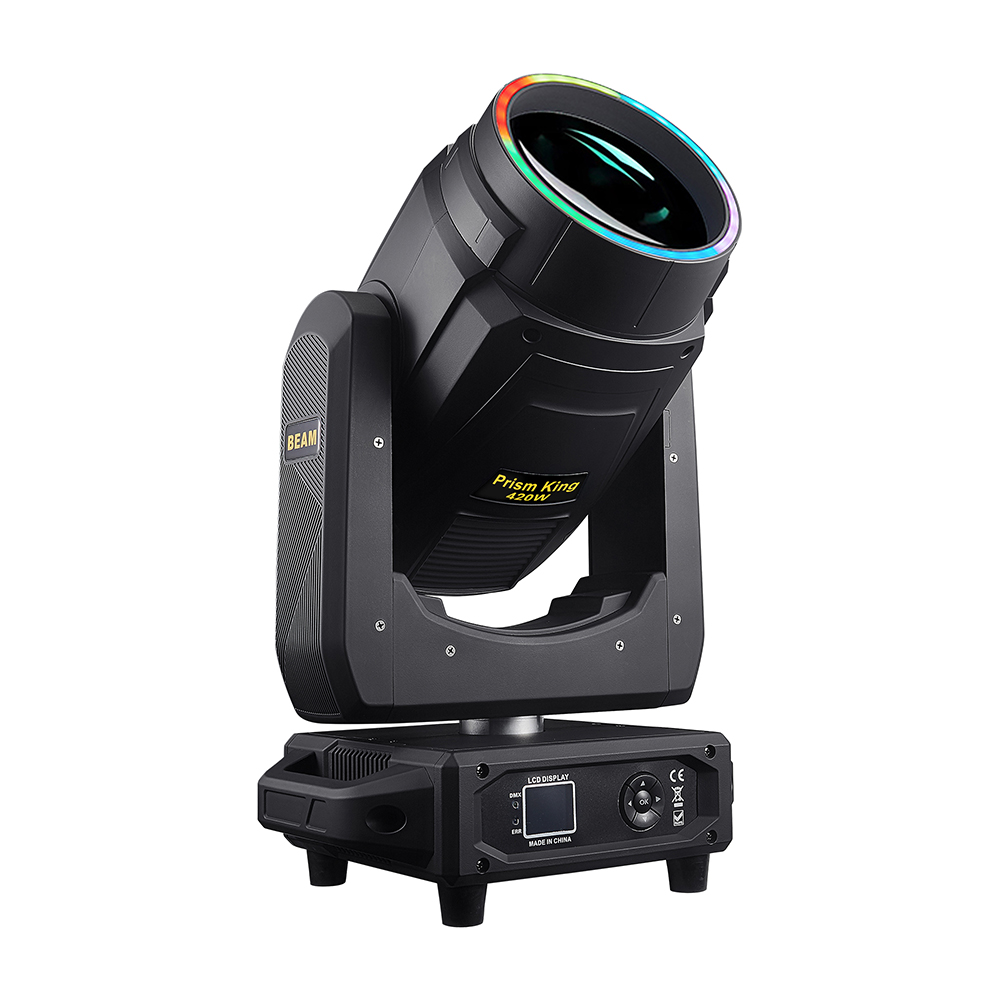

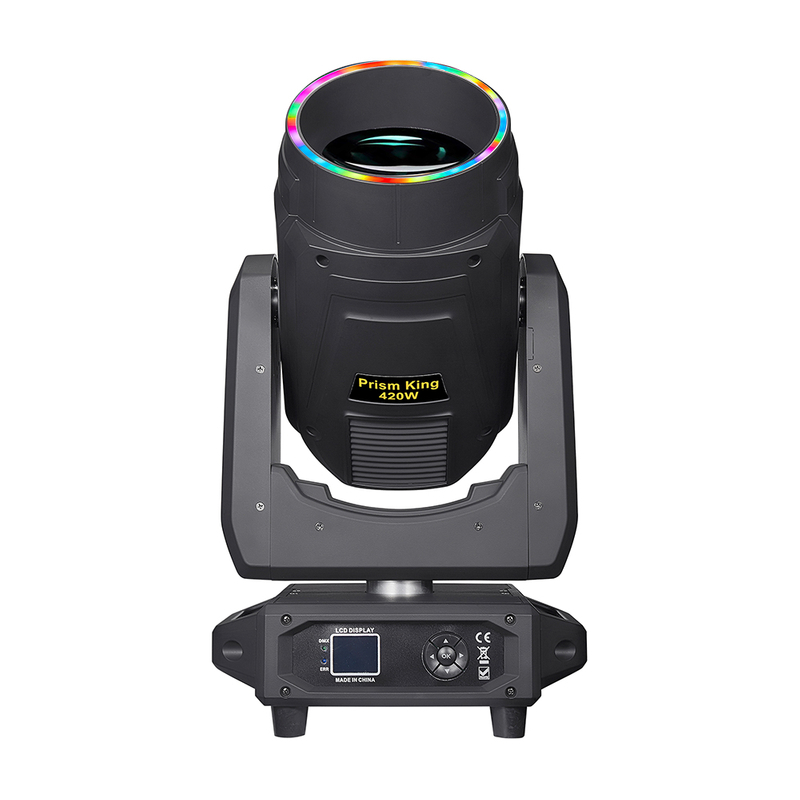

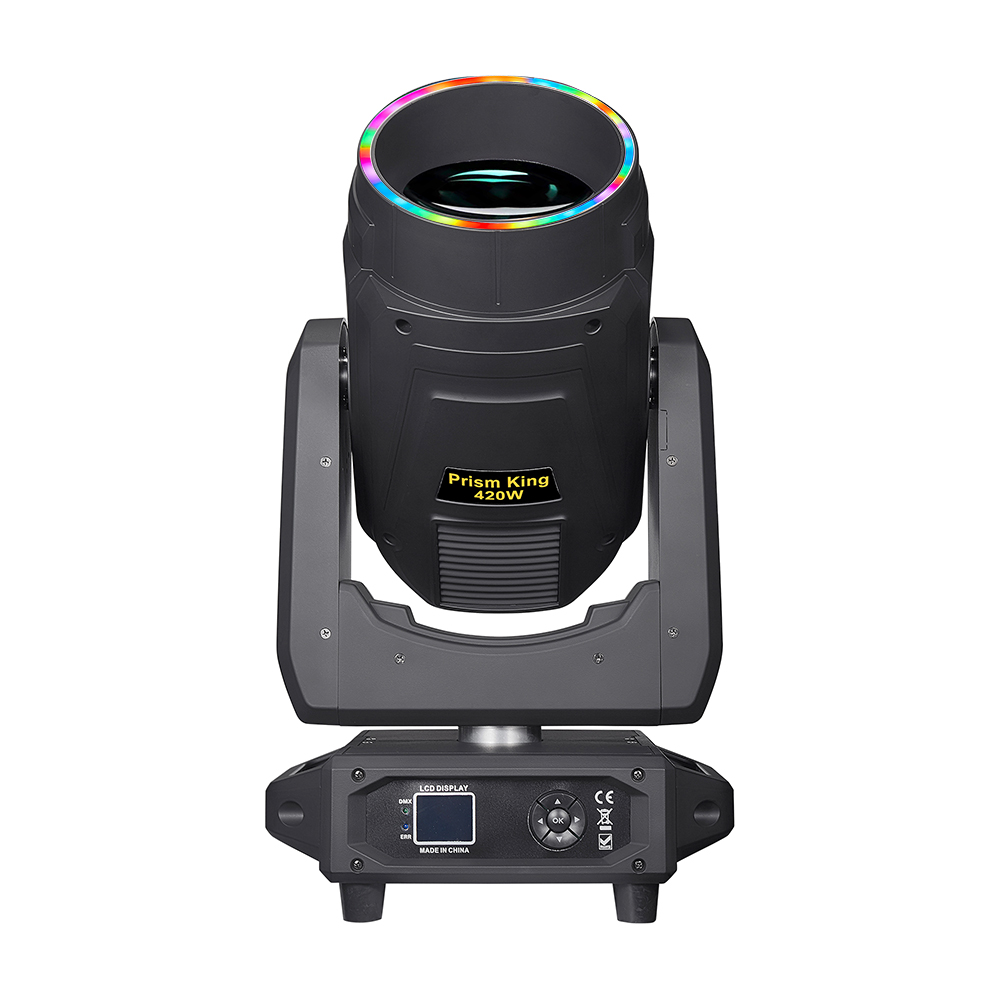

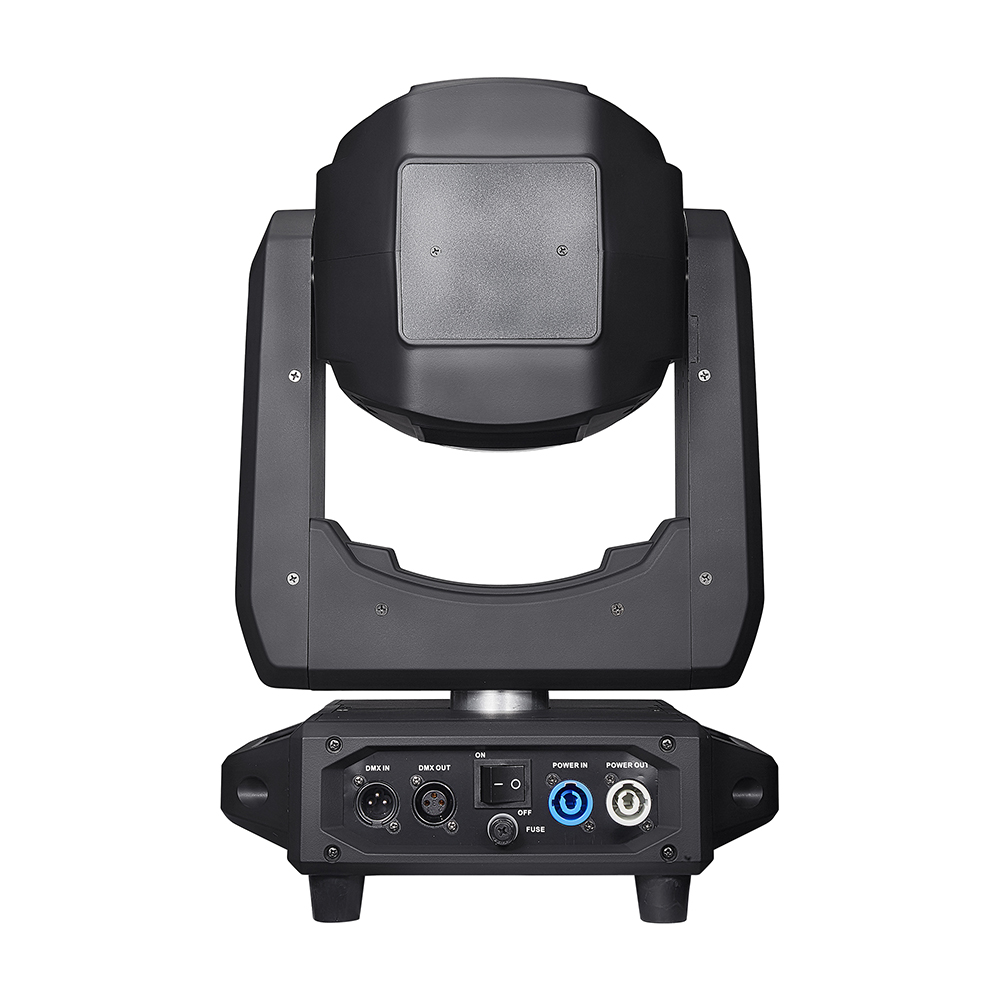

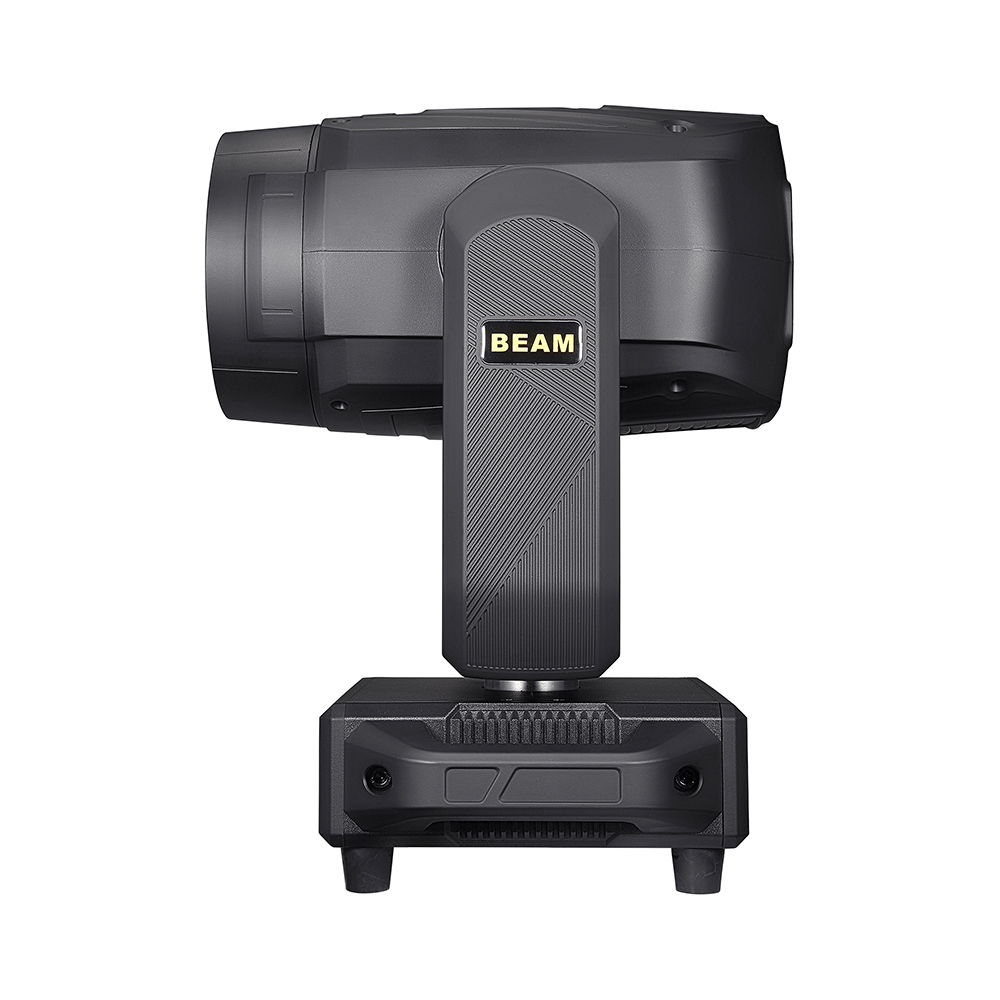

420W Prism King Sharpy Beam Moving Head Light for Bar Nightclub FD-DM420

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Rated power: 600W
Light bulb model: 420W, 31 0.5WRGB three in one LEDs
Luminous :7950lm
Color temperature: 8500K
Output aperture :152mm
Prism : 12-prism, 24 honeycomb prism
48 honeycomb prism, 6-row mirror
Availability:
Quantity:
  • FD-DM420

  • Fondlites

Light Sources

Bulb: 420W, 31 0.5WRGB three in one LEDs


Power Supply

Voltage:AC100-240V  50-60Hz

Power :600W


Optical System

Luminous flux :7950lm,

Color temperature :8500K

Output aperture:152mm

Ballast: electronic inductor ballast

Control mode: DMX512/voice control/self-propelled/RDM

Beautiful dot matrix display, with four touch sensitive Baiqi button switches that can be reversed 180 ° for display

Color Wheel: 14 color +white, adjustable rotation speed, bidirectional flowing effect and rainbow effect.

Gobo plate: 14 gobos+white (including 4 waveform effects)

Prism 1: a large angle 12-prism, Prism 2:24 honeycomb prism, Prism 3:48 honeycomb prism, 4-prism: a 6-row mirror,

Stackable and capable of bidirectional independent rotation

Bidirectional rotation, adjustable rotation speed+rainbow effect.

Focusing: Linear focusing, from near to far.

Equipped with atomization function,

0-100% mechanical dimming, supports mechanical strobe and adjustable strobe effects, supports strobe macro function, mechanical strobe is 1-12 F.P.S.

Lens group optical system, electric focusing, beam angle 0-4 °

Adopting a photoelectric reset system, the reset can be automatically retrieved in case of accidental misoperation


Movement

Horizontal scan: 540° 8Bit/16Bit fine tuned

Vertical scan: 270° 8Bit/16Bit fine tuned


Control

Control:DMX512/self-propelled

Channel: 18/22 channels

Display mode: LCD display


Working Environment

Size:55 * 31 * 25 cm

Net weight: 13.5Kg

IP rate: IP20





420W Prism King Sharpy Beam Moving Head Light for Bar Nightclub

                         420 Prism Beam Moving head light



A narrow beam is impressive on its own. But when several optical effects can be combined inside the same fixture, the possibilities become much more interesting.

This 420W beam moving head is built around a 0–4° beam angle, producing the concentrated beams commonly seen across concerts, clubs, live events and stage productions.

The real highlight is the optical system.

It comes with four prism effects: a 12-facet large-angle prism, 24-facet honeycomb prism, 48-facet honeycomb prism and a six-row mirror. The prisms can be combined and rotated independently in both directions, allowing one beam to be split into multiple rays and more complex patterns.

There is also an LED aperture effect around the beam, adding another layer to the visual effect.

The color system includes 14 colors + white, with adjustable rotation speed, rainbow effects and bidirectional color-flow effects. A 14-gobo fixed pattern wheel, including four wave effects, provides another option when the lighting design needs more texture.

With electronic focus, mechanical dimming, adjustable strobe, frost, DMX512, RDM and 540° Pan / 270° Tilt, the fixture is designed for productions where strong aerial effects and movement are more important than general illumination.

That makes it a practical choice for concerts, clubs, touring shows, event productions and rental inventories.

For rental businesses in particular, having multiple beam, gobo and prism effects in one fixture can make the equipment useful across a wider range of productions.

The point of this fixture isn't simply to produce a bright beam.

It's about taking one narrow beam and turning it into multiple visual effects.
