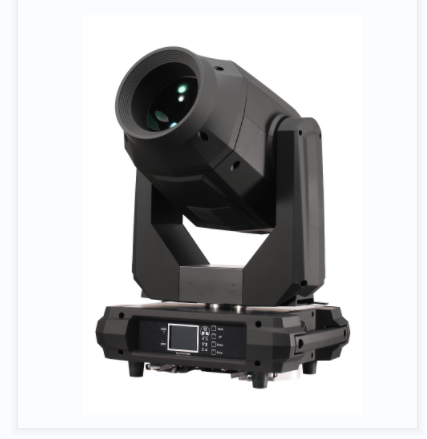

FD-DM380BSW
Fondlites
Light Sources
Bulb : OSRAM SIRIUS HRI 371W
Lifespan:1500 hours
Color temperature : 7800K
Power Supply
Voltage:AC100-240V 50-60Hz
Max Power :450W
Optics
Beam angle: 2.9－40°
Dimmer: 0-100% linear dimmer
Fixed Color Wheel : 11 color +white, half color effect, linear color conversion and bidirectional variable speed rotating rainbow effect
Static Gobo Wheel : 11 gobos +white
Rotating Gobo Wheel: 7 gobos +white
Effect plate: one effect plate, 4 patterns
Prism: one 8 prism; one 25 prism;
Atomization: 1 independent atomization effect, the light spot is soft and natural
Control
Control：DMX512, Auto-run, master/slave
Channels: 23/20 channels
Movement
Horizontal scan: 540°
Vertical scan: 270°
Connections:
DMX connector: 3Pin XLR
Working Environment
Working temperature: -20-40℃
IP rate: IP20
