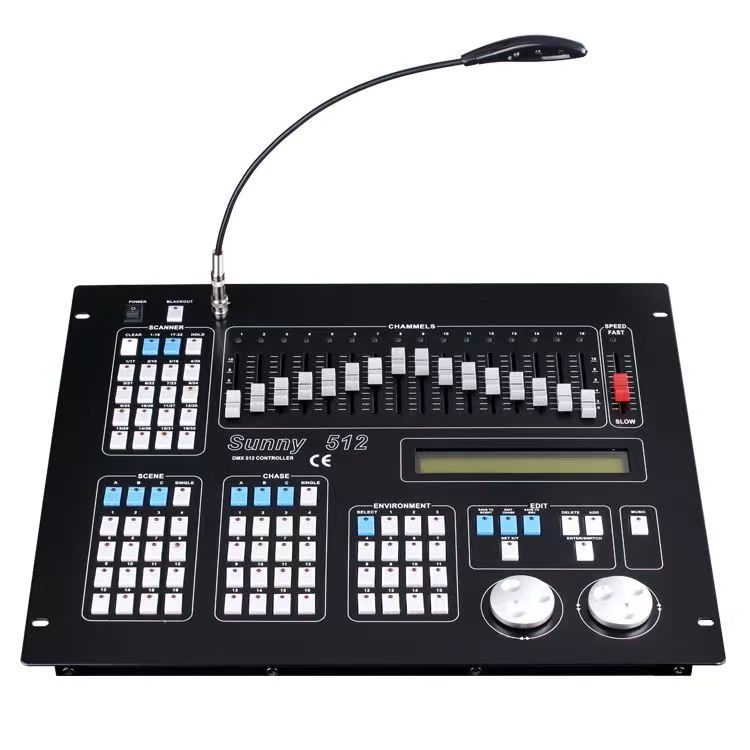

512 Channels DMX-512 Controller FD-K512

Share to:
512 Channels
Independent plug-in board structure
control 32 sets of 16-channel computer lights
large LCD screen with backlight
1600 programmed memory capacity
Can overlap the chase running

Power supply:AC220V,50-60Hz

Output signal:DMX512

Total Channels:512CHs

32 sets of 16-channel computer lights

Product Size:  485 × 400 × 115 mm

Gross Weight:  6.75kg

512 Channels DMX-512 Controller


2 separate output drive ports with isolation, with resistance to 1500V DC electric shock. Independent plug-in board structure, easy to replace;

can control 32 sets of 16-channel computer lights;

large LCD screen with backlight, used to display various operating parameters;

1600 programmed memory capacity. 48 step-by-step procedures, 100 steps more per procedure. The gradient parameter is set independently for each step speed. Optional Sound, music synchronization or manual speed control;

with the help of the push rod, the time range of the program step can be from 0.03s to 180s; 48 directly callable computer light scenes;

At the same time, 32 computer lights can be manually operated (lantern) , manually operated (lantern) with channel release function, x/y of different kinds of computer lights can be controlled by data wheel, also can be controlled by pusher, 16Bit Computer Lights x/y control accuracy;

15 Environment Keys, quick access to different scenes, running lights, manual operation combination;

music trigger signal source can be taken from audio line input or built-in microphone Built-in high-performance green switching power supply, with very low power harmonic distortion and very wide voltage range, in line with the world power requirements (90V-240V) .
