Each in-out processing circuit both adopt modular design
Each in-out has independent power supply
RS-485 Port
Supporting 512channels’s real time transmission
International DMX512 Agreement
Availability: | |
---|---|
Quantity: | |
Voltage:AC90-240V / 50-60Hz
Input and output Agreement:International DMX512 Agreement
Transmission capacity:Supporting 512channels’s real time transmission

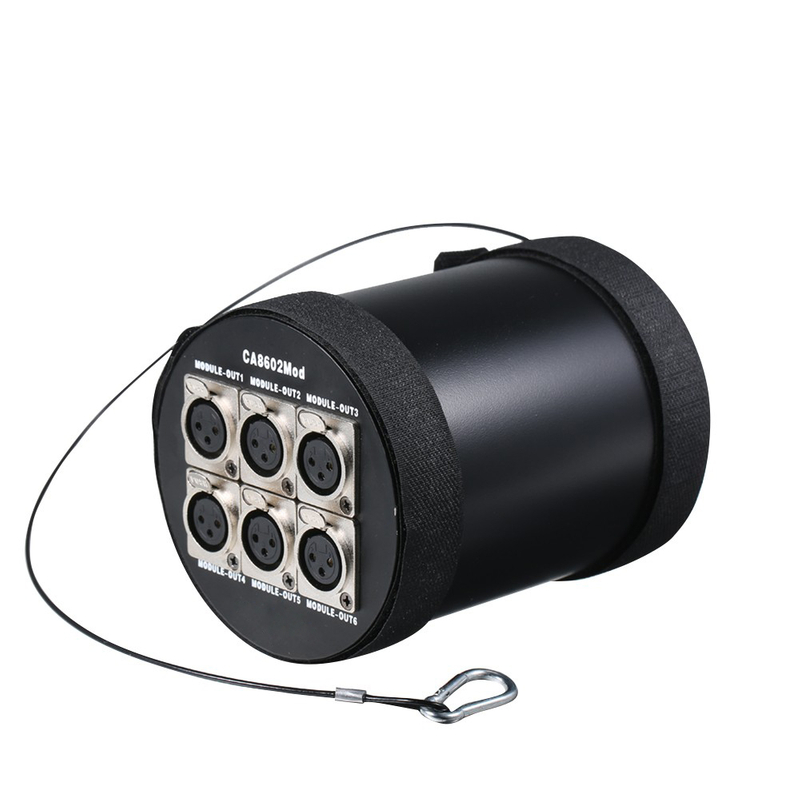

Signal output:Distribute and output 6channels DMX signal in electrical isolation

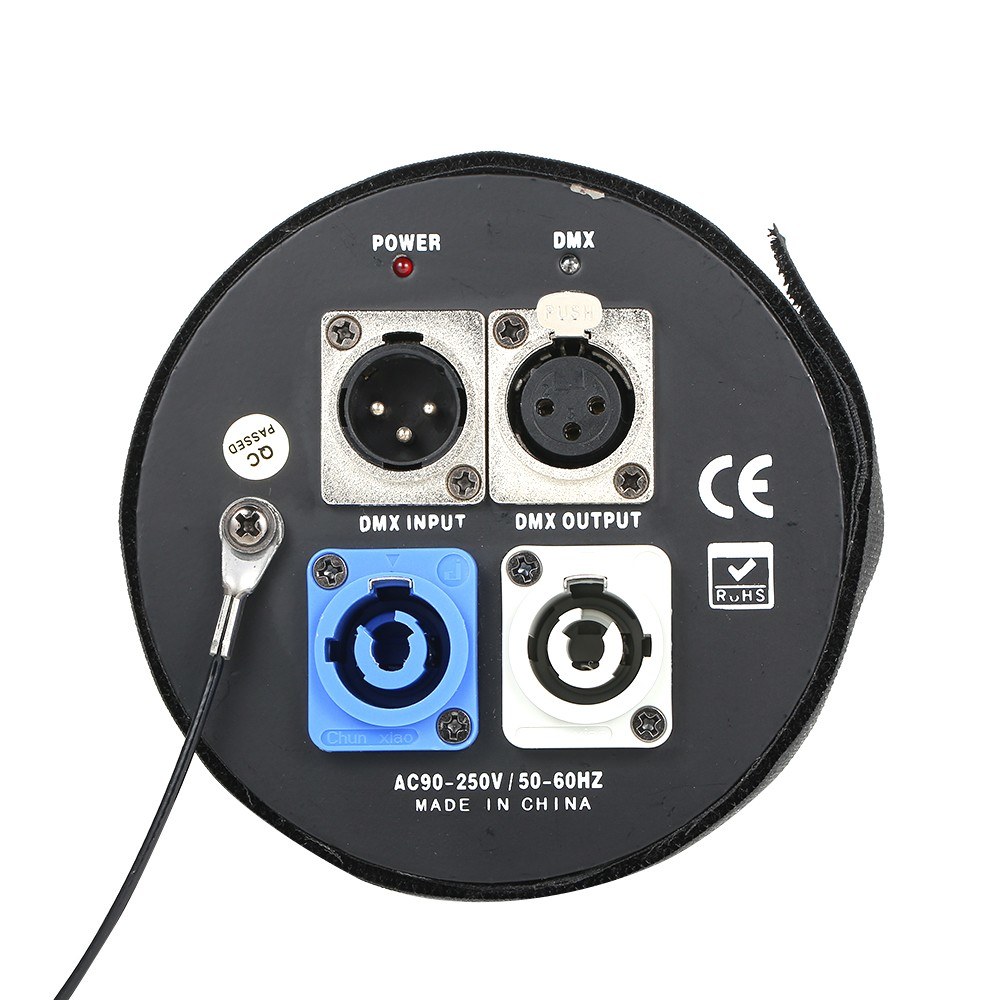

The canon of Signal connection:Input XLR-3-M, output XLR-3-F
The mode of port:RS-485
Political isolation of the input to the output:>AC300V
Appearance size:12*12*17CM“19”1U
Weight:0.9KG
Voltage:AC90-240V / 50-60Hz
Input and output Agreement:International DMX512 Agreement
Transmission capacity:Supporting 512channels’s real time transmission
Signal output:Distribute and output 6channels DMX signal in electrical isolation
The canon of Signal connection:Input XLR-3-M, output XLR-3-F
The mode of port:RS-485
Political isolation of the input to the output:>AC300V
Appearance size:12*12*17CM“19”1U
Weight:0.9KG
DMX Modular Splitter 6 Channels FD-CA06mod

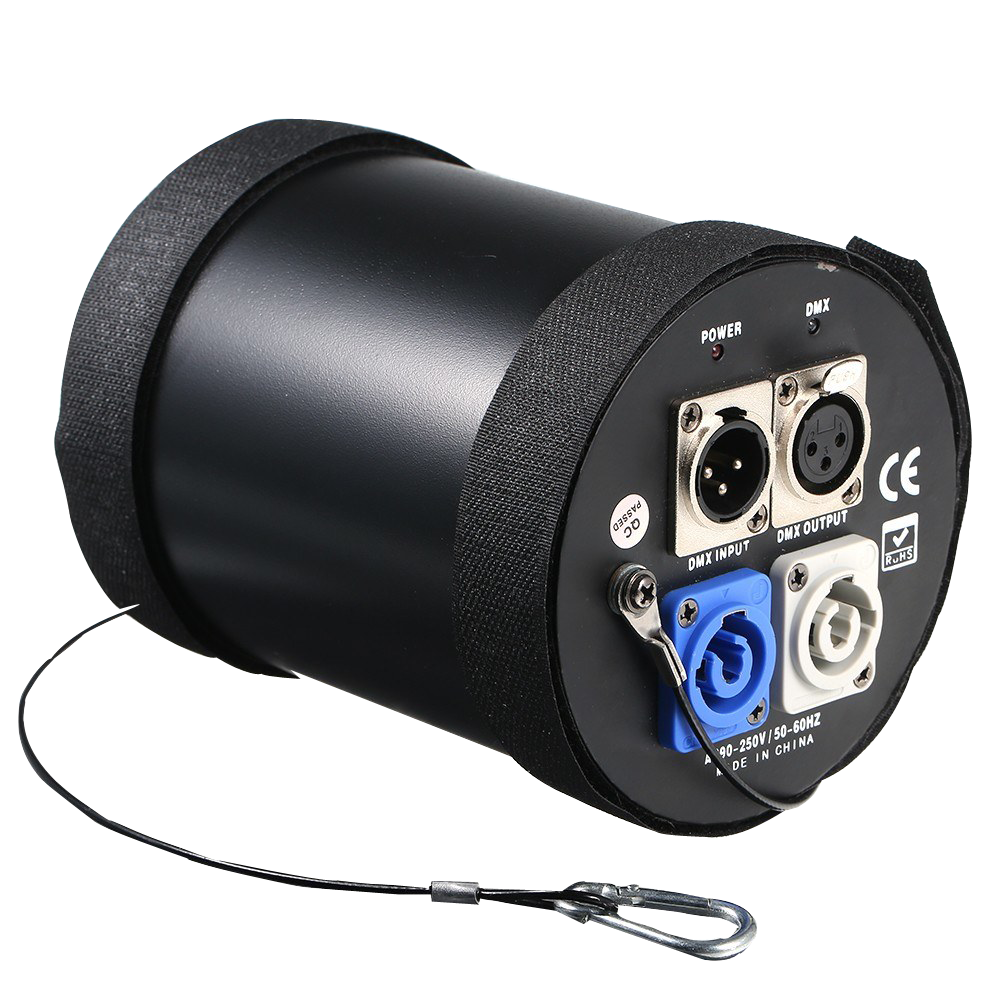

FD-CA06mod is a kind of the Dmx splitter products with the stickers easily installed against the truss at any position .It can strengthen and amplify the DMX signal from the DMX controller.
The ports of in-output, use the separately power supplier, and each output port is in the modular’s design, with the high voltage isolation technology and protection circuit to the ports.
Apply to extend the transmission distance of DMX signal, strengthen the DMX signal, add the quantity of lighting; and also the occasion that need to isolate the electrical connection between the DMX controller and lighting.
Due to between the input and output are completely insolated, so it can avoid burning the precision digital DMX controllers from the control cable broken, or the broken in the lighting equipments, also can avoid disturbing the whole signal system from the external interference signals’ inputting .It can make sure the DMX controller and the whole system safely running, at the same time ,it also can be sure that there is the enough strong signal transmitted to every lighting equipments so that advanced the reliability of the whole lighting controlling system.
1) Each in-out processing circuit both adopt modular design, and user can willfully match the assembly 3 pins or 5 pins in-out modular according to your needs. It is very convenient for such a occasion that‘when the output module was broken caused by strongly attack from the external current’,then the user can fix it at once ,so it has another protection method for the live shows.
2) Each in-out has independent power supply, and each modular board is isolated with the independent protection circuit and optoelectronic isolation. The measures realized the absolutely isolation between the signal and the electrical
The 3 Pin (XLR-3) or 5 Pin(XLR-5) are more durable with the silver metal
DMX Modular Splitter 6 Channels FD-CA06mod
FD-CA06mod is a kind of the Dmx splitter products with the stickers easily installed against the truss at any position .It can strengthen and amplify the DMX signal from the DMX controller.
The ports of in-output, use the separately power supplier, and each output port is in the modular’s design, with the high voltage isolation technology and protection circuit to the ports.
Apply to extend the transmission distance of DMX signal, strengthen the DMX signal, add the quantity of lighting; and also the occasion that need to isolate the electrical connection between the DMX controller and lighting.
Due to between the input and output are completely insolated, so it can avoid burning the precision digital DMX controllers from the control cable broken, or the broken in the lighting equipments, also can avoid disturbing the whole signal system from the external interference signals’ inputting .It can make sure the DMX controller and the whole system safely running, at the same time ,it also can be sure that there is the enough strong signal transmitted to every lighting equipments so that advanced the reliability of the whole lighting controlling system.
1) Each in-out processing circuit both adopt modular design, and user can willfully match the assembly 3 pins or 5 pins in-out modular according to your needs. It is very convenient for such a occasion that‘when the output module was broken caused by strongly attack from the external current’,then the user can fix it at once ,so it has another protection method for the live shows.
2) Each in-out has independent power supply, and each modular board is isolated with the independent protection circuit and optoelectronic isolation. The measures realized the absolutely isolation between the signal and the electrical
The 3 Pin (XLR-3) or 5 Pin(XLR-5) are more durable with the silver metal
