150w Spot Wash Beam 3in1 LED Moving Head Light FD-LM150S

Share to:
150W White LED
0-100% linear dimmer
LCD display
DMX 512 Control
IP rate: IP20
0-100% linear dimmer
  • FD-LM150S
  • Fondlites

Light Source

Leds: 1pcs 150W white LED+ 48pcs 0.5W RGB 3IN1 LEDs


Beam angle:1.5°

Power Supply

Voltage:AC100-240V  50-60Hz

Power :200W

Optical System

Optics: High-precision optical lens.

Dimmer: 0-100% linear dimmer

Strobe: 1-25 times/second

Color wheel: 1 color wheel, 10 fixed color chips + white light, half-color effect, color chips can be positioned arbitrarily, rainbow effect with bidirectional rotation and adjustable speed

Fixed plate: 10 fixed gobos + white light, with gobo shaking function

Focusing: Linear electronic focusing


Horizontal scan: 540° (8/16bit precision scan)

Vertical scan: 270° (8/16bit precision scan)


Display screen: 2.4-inch TFT LCD display

Control protocol: DMX512

Control channels: 17 DMX Channels


Housing Material:Aluminum

Housing Color: Black


DMX connector: 3Pin XLR

Working Environment

Working environment: -20°C to 45°C

IP rate: IP20


Product size: 300*190*465mm

Packing size: 330*210*480mm

Net weight: 13.5kg

Gross weight: 15.0kg

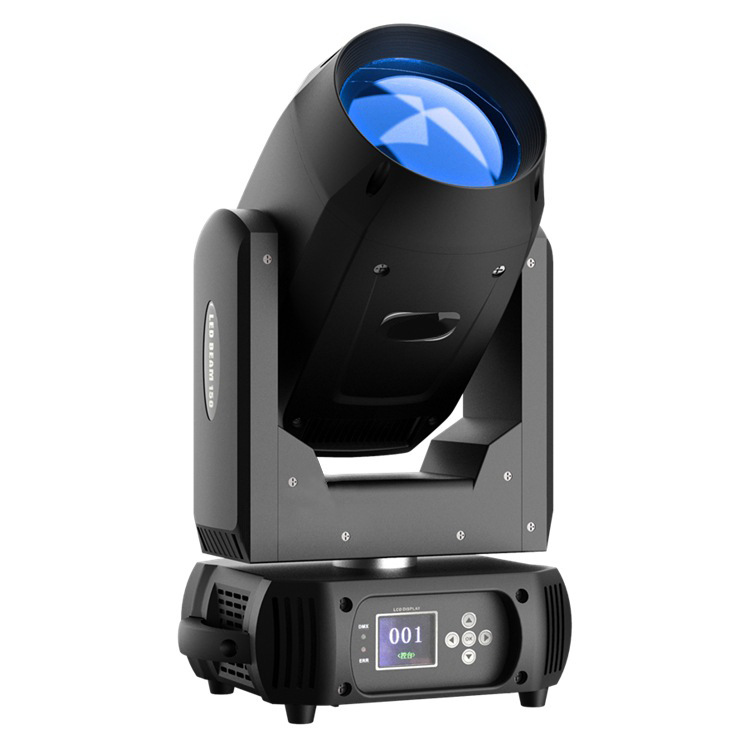

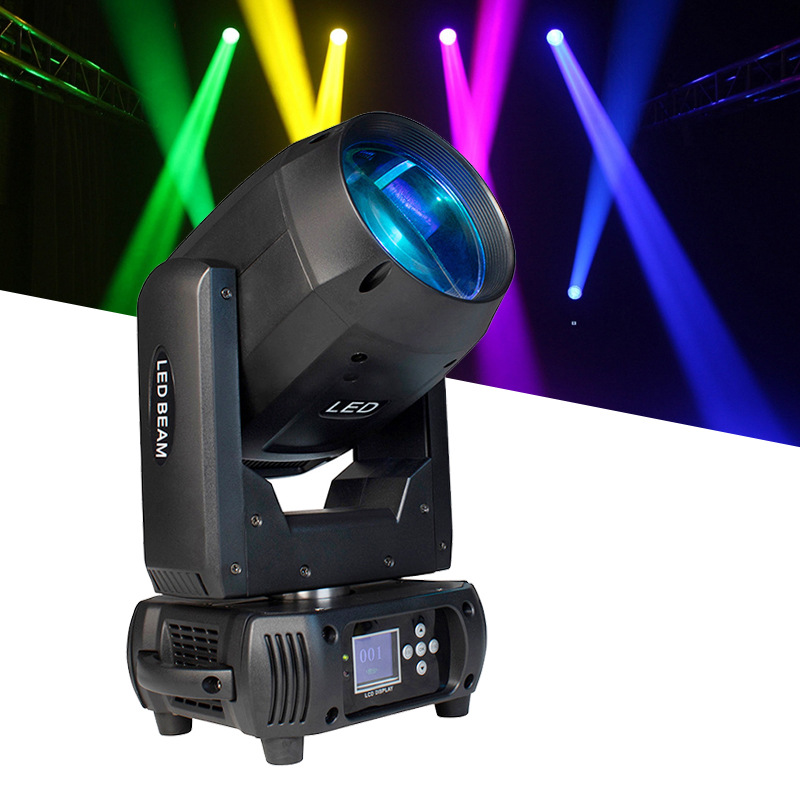

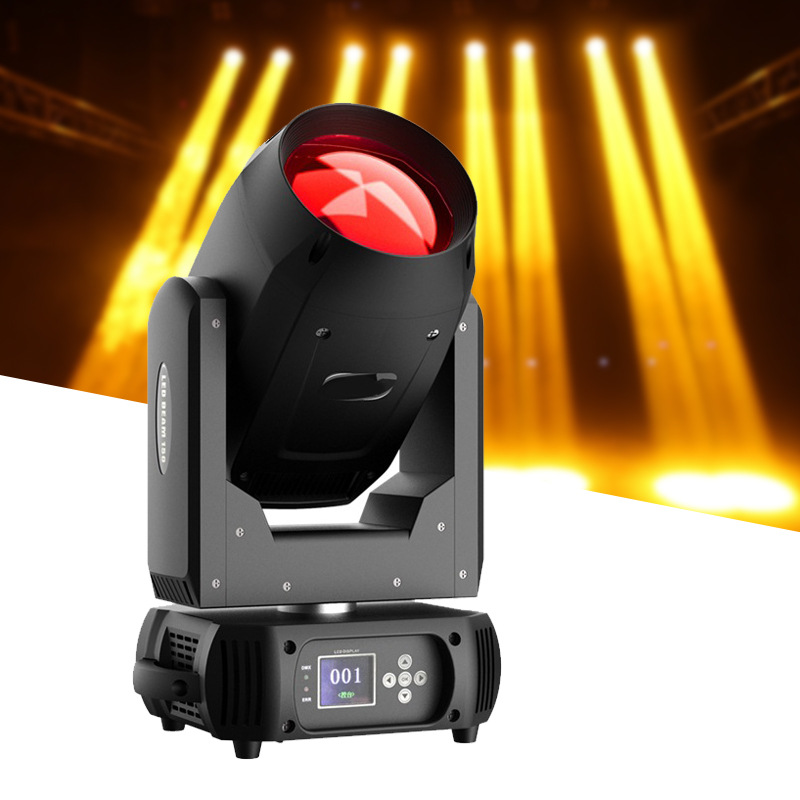

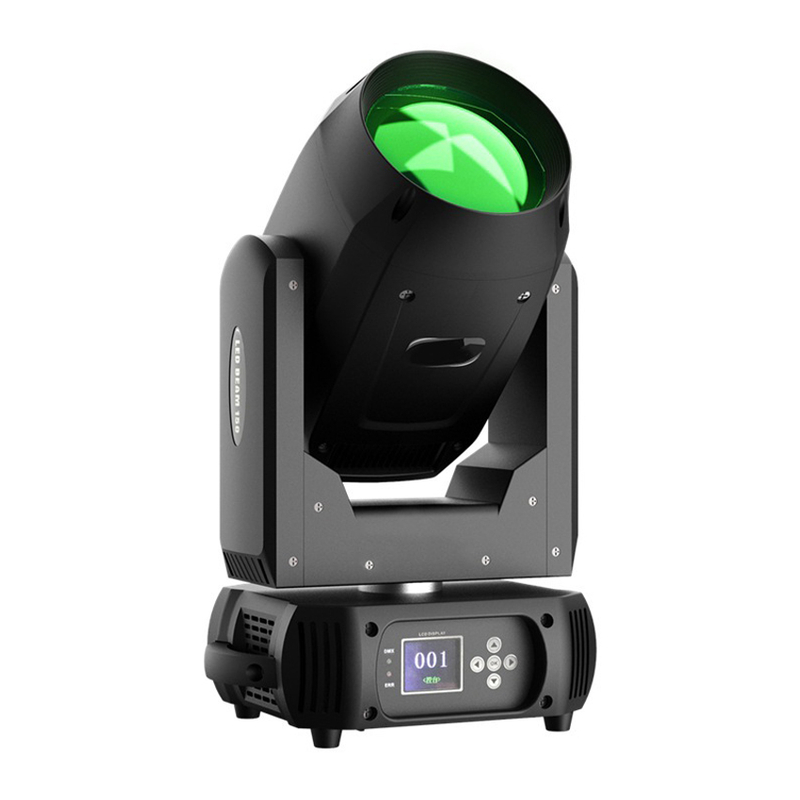

150W Led Moving Head Light For Club


Fondlites FD-LM150S is a beam moving head light with 150W light source, which has the characteristics of small size and high light efficiency;

The unique optical design makes its 10-meter distance more than 100,000 lux, and the beam effect in the air is sharp, thick, full, and penetrating.

Two-way rotation of 24 prisms, which can be cut in and out, and can also be superimposed with 24 prisms; independent atomization effect, 10 fixed patterns and 10 color slices;

Lightweight design of the lamp body, the net weight is only 12.5Kg, and the height of the lamp body is only 480mm. It is very suitable for rental, wedding, dance hall, bar, KTV, night club and other application places.
