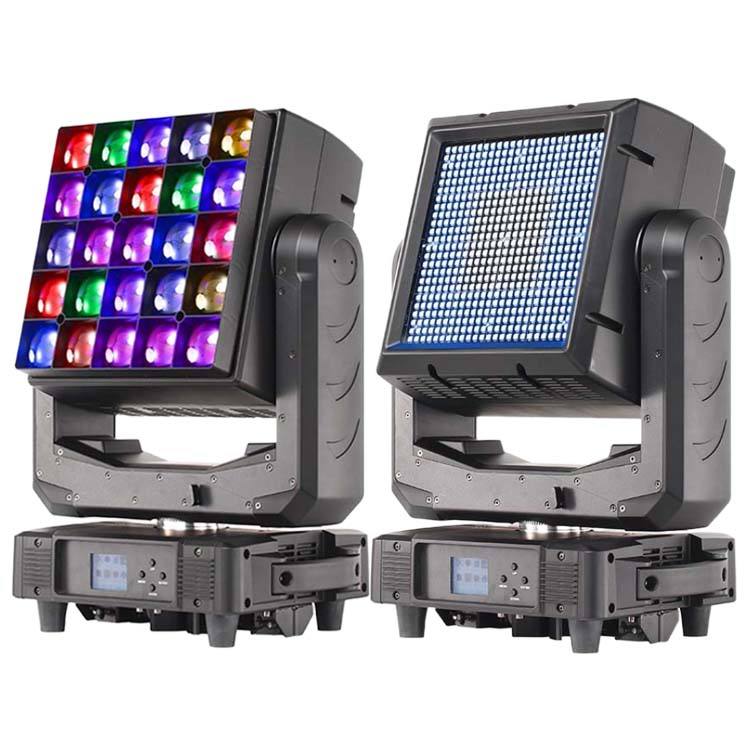

25x40W RGBW Wash Zoom Double Face Strobe Matrix Moving Head Light FD-LM2540D


Share to:
25*40W Osram RGBW LED
LED Lifespan: 50,000 hours
Advanced optical system
Protocols: DMX512, RDM
Beam Angle: 3.5°to 45°
Waterproof IP20
  • FD-LM2540D

  • Fondlites

Light Source
Light Sources: Powerful 25*40W Osram RGBW LED

Light sources-Strobe: 576x0.2W 4in1 RGBW LED

LED Lifespan: 50,000 hours


Input Voltage: 100-220V, 50/60Hz

Power Consumption:  1100W

Power factor PF≥0.95

Optical system
Glass light guide rod + PMMA high-quality optical lens

Beam Angle: 3.5°to 45°

Control and Program
Display:180°reversible 2.4-inch TFT color display

Control Modes: DMX512,Artnet control

DMX mode  :26/33/43/143

Artnet mode : 120 channels

Pan/Tilt Resolution: 16 bit

Housing:Glass light guide + PMMA high quality optical lens

Display: 180°reversible 2.4-inch TFT color display(Chinese or English)

Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction

Data In/Out: 3-pin & 5-pin XLR sockets

Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20

Product Size:420mm×272mm×559.5mm

Product Weight: 24 kg

Flight Case Size:743*462*770mm

Flight Case Weight:78.8kg

25x40W RGBW Wash Zoom Double Face Strobe Matrix Moving Head Light

High Quality 576x0.2W Strobe and 25x40W RGBW Dmx Wash Zoom Beam Face Led Matrix Moving Head Light

Fondlites FD-LM2540D is RGBW Osram LED moving head, a high-power wash light. This model is fitted with 25*40W Osram LED . It features a wide wash range from 3.5°to 45°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM compatibility.

Its new heat dissipation structure which combines technology of water cooling and semiconductor refrigeration allows for rapid heat dissipation from the working temperature. Thanks to the high efficient heat dissipation the metal structure could be replaced with lighter and stonger industrial plastics, bringing the overall weight to 24kg. Instead of using the traditional waterproof glue with associate potential risks.

FD-LM2540 is a fixture with a snap-in structure in order to ensure the integrity of the internal components. This fixture could be used for large stadiums, large performances and other professional venues and all-weather environment.
