FD-LW1840
Fondlites
Light Source
Light Sources: Powerful 18*40W Osram RGBW LED
LED Lifespan: 50,000 hours
Power
Input Voltage: 100-220V, 50/60Hz
Power Consumption: 580W
Optical system
Advanced optical system
Beam Angle: 3.5°to 50°
Control and Program
Display: LCD display
Protocols: DMX512/Master-Slave/Auto Run/sound
DMX Channel:19/25/61CH
Pan/Tilt Resolution: 16 bit
Display:180° reversible TFT Display
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Connectors
Data In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65
Package
Product Size:508*208*351mm
Product Weight: 16kg
Light Source
Light Sources: Powerful 18*40W Osram RGBW LED
LED Lifespan: 50,000 hours
Power
Input Voltage: 100-220V, 50/60Hz
Power Consumption: 580W
Optical system
Advanced optical system
Beam Angle: 3.5°to 50°
Control and Program
Display: LCD display
Protocols: DMX512/Master-Slave/Auto Run/sound
DMX Channel:19/25/61CH
Pan/Tilt Resolution: 16 bit
Display:180° reversible TFT Display
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Connectors
Data In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65
Package
Product Size:508*208*351mm
Product Weight: 16kg

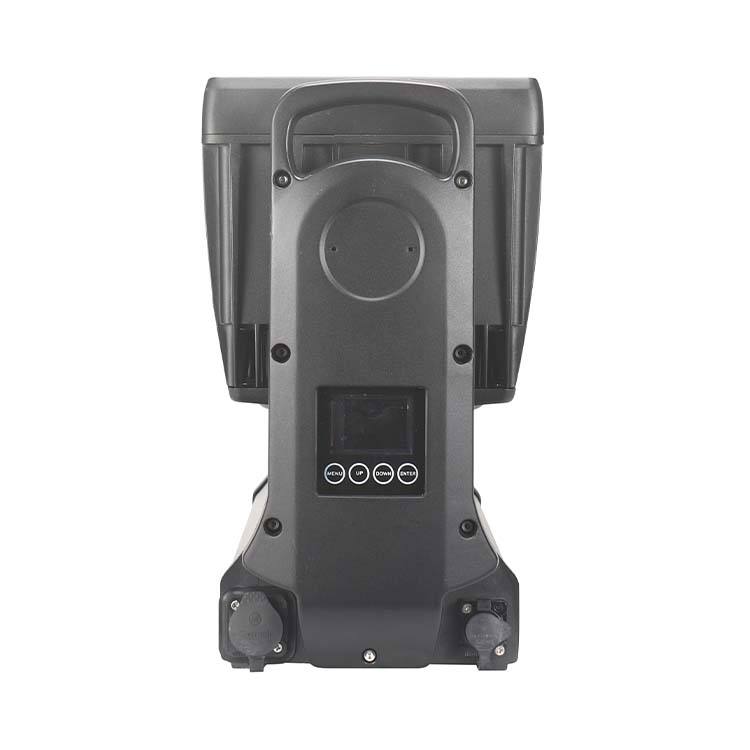

Fondlites FD-LM1840B is RGBW Osram LED moving head, a high-power wash light. This model is fitted with 18*40W Osram LED. It features a wide wash range from 3.5°to 50°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM compatibility.
Its new heat dissipation structure which combines technology of water cooling and semiconductor refrigeration allows for rapid heat dissipation from the working temperature. Thanks to the high efficient heat dissipation the metal structure could be replaced with lighter and stonger industrial plastics, bringing the overall weight to 16kg. Instead of using the traditional waterproof glue with associate potential risks.
FD-LW1840B is a fixture with a snap-in structure in order to ensure the integrity of the internal components. This fixture could be used for large stadiums, large performances and other professional venues and all-weather environment.
Fondlites FD-LM1840B is RGBW Osram LED moving head, a high-power wash light. This model is fitted with 18*40W Osram LED. It features a wide wash range from 3.5°to 50°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM compatibility.
Its new heat dissipation structure which combines technology of water cooling and semiconductor refrigeration allows for rapid heat dissipation from the working temperature. Thanks to the high efficient heat dissipation the metal structure could be replaced with lighter and stonger industrial plastics, bringing the overall weight to 16kg. Instead of using the traditional waterproof glue with associate potential risks.
FD-LW1840B is a fixture with a snap-in structure in order to ensure the integrity of the internal components. This fixture could be used for large stadiums, large performances and other professional venues and all-weather environment.
