Rated Voltage:AC100~240V 50/60Hz
Power consumption:≤850W
Scanner: 40K large mirror fast speed module scanner, scan angle:max±30°;Input signal:±5V;Linearity distortion<2%
Modulation: analog
Beam diameter and Divergence:8*6.5mm;1.2mrad
Control mode: automatic/master-slave/DMX512(27CH)/art-net/ILDA
Control Interface:3 pin DMX512,25DB ILDA,easy ILDA,Art-net,SD card
Demonstration effect:built-in 140 pattern(7 groups x 20 cues)and 20 animation(1 group x 20 cues), SD card unlimited storage.
Control technology: ①RDM data bidirectional transmission ② SD carrd online upgrade ③temperature control system ④DMX512 upgrade
DMX effect: single pattern mode, and with the function of unique blanking,strobe,rotation,movement,billowing,zoom,write in,speed and color etc.
Operating requirement: dry,less dust,0~35℃(environmental temperature), will reduce the attenuation of the cliode and extend the life of the light.

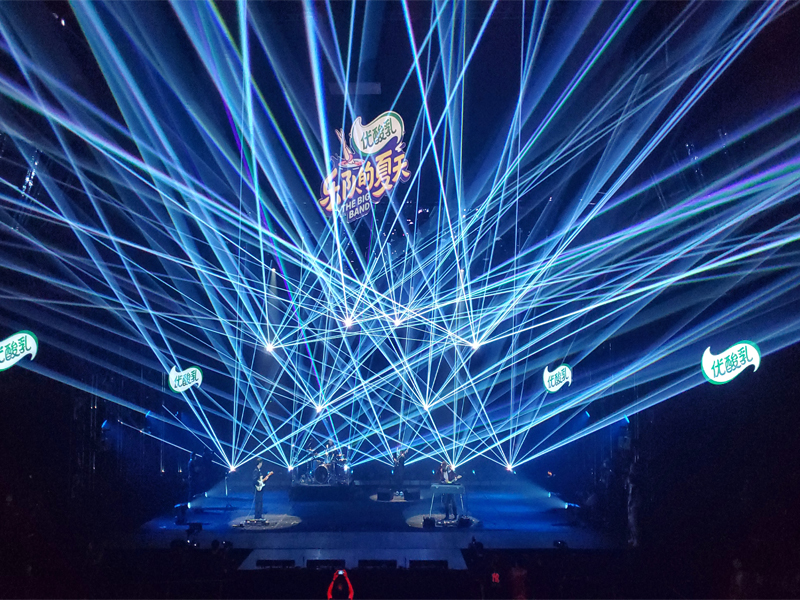

Application: concert, stadium, advertising, etc.
Size:63*51*50cm ON.W.G.W.:28/48kg
