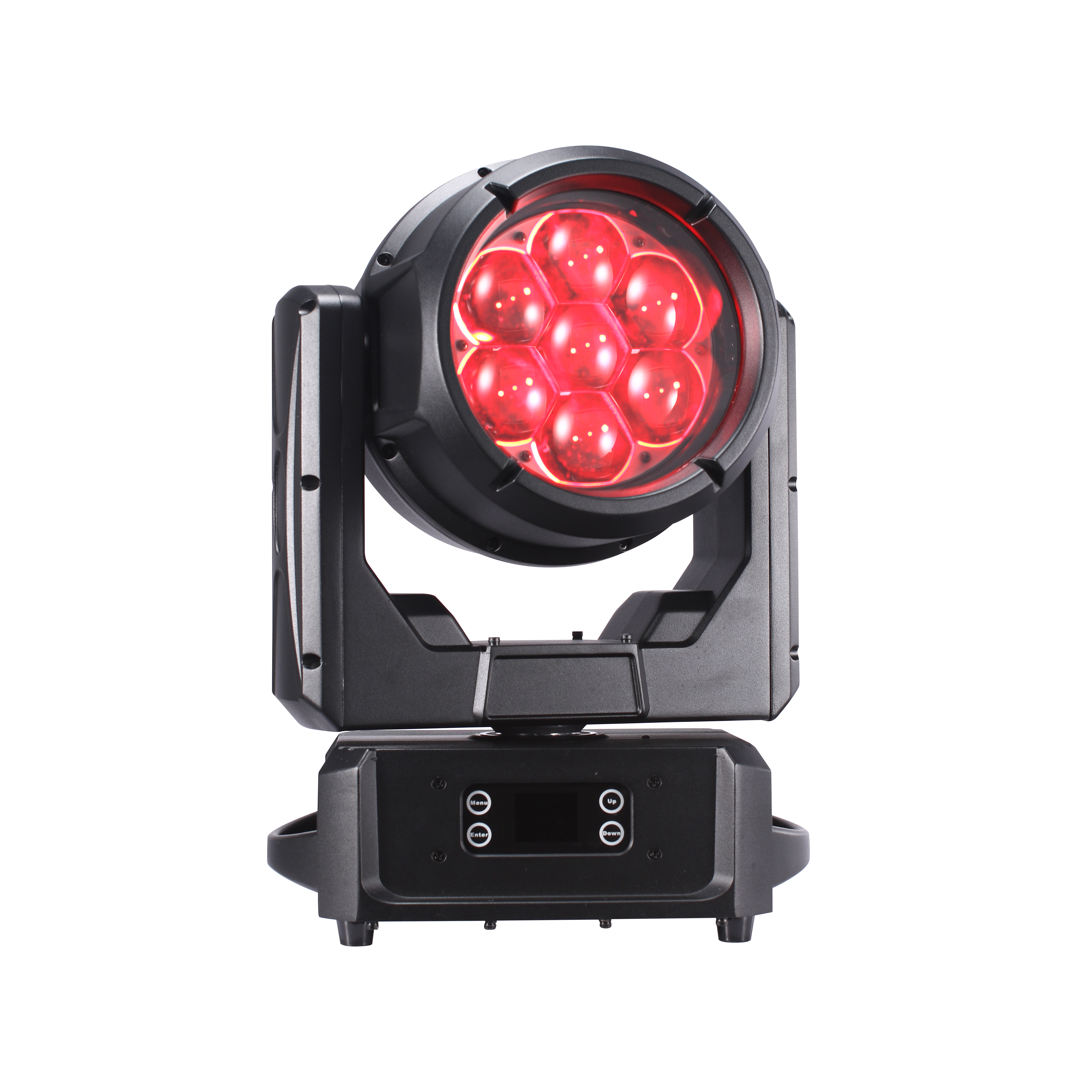

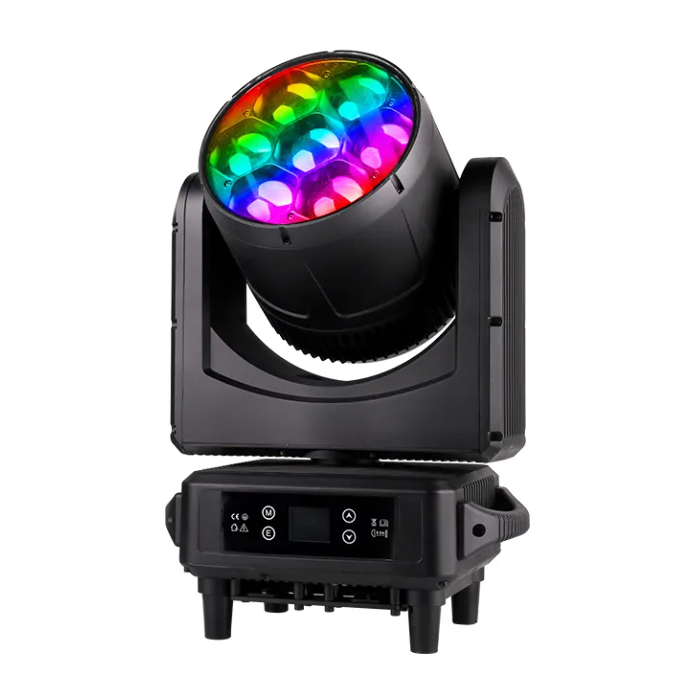

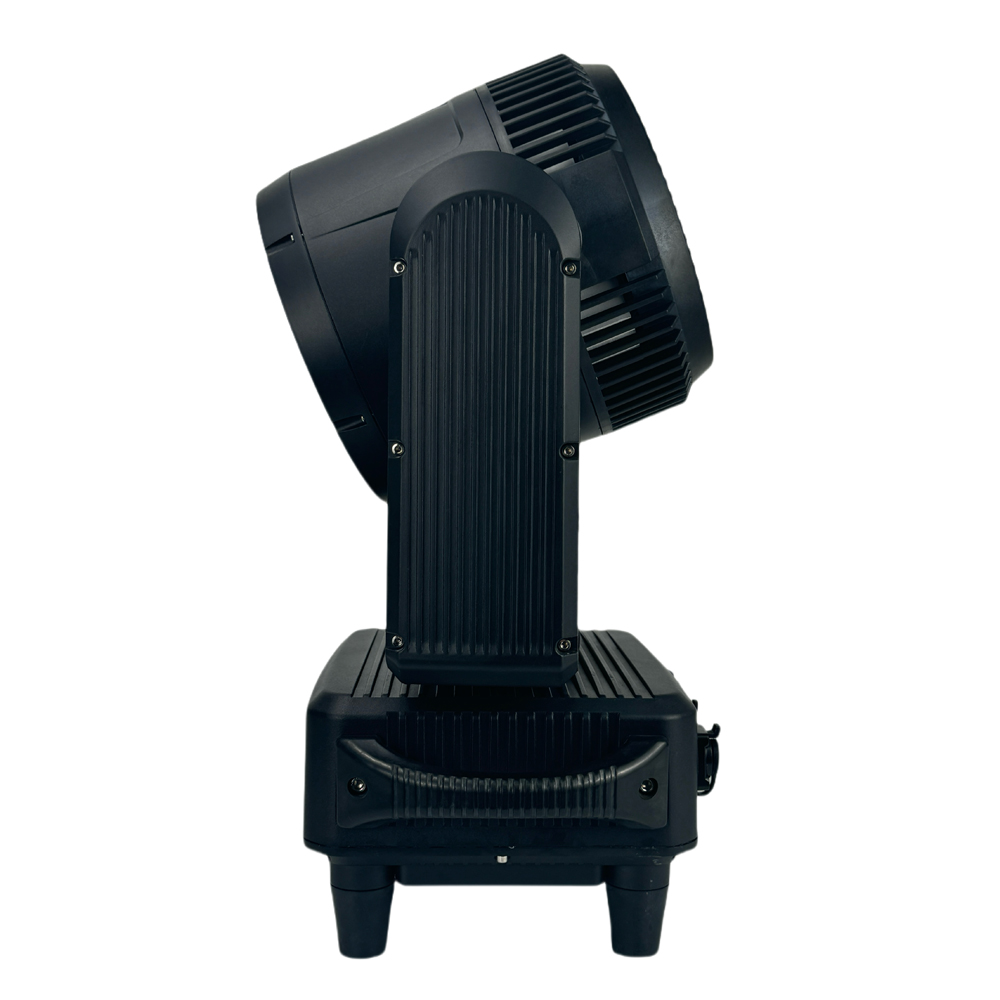

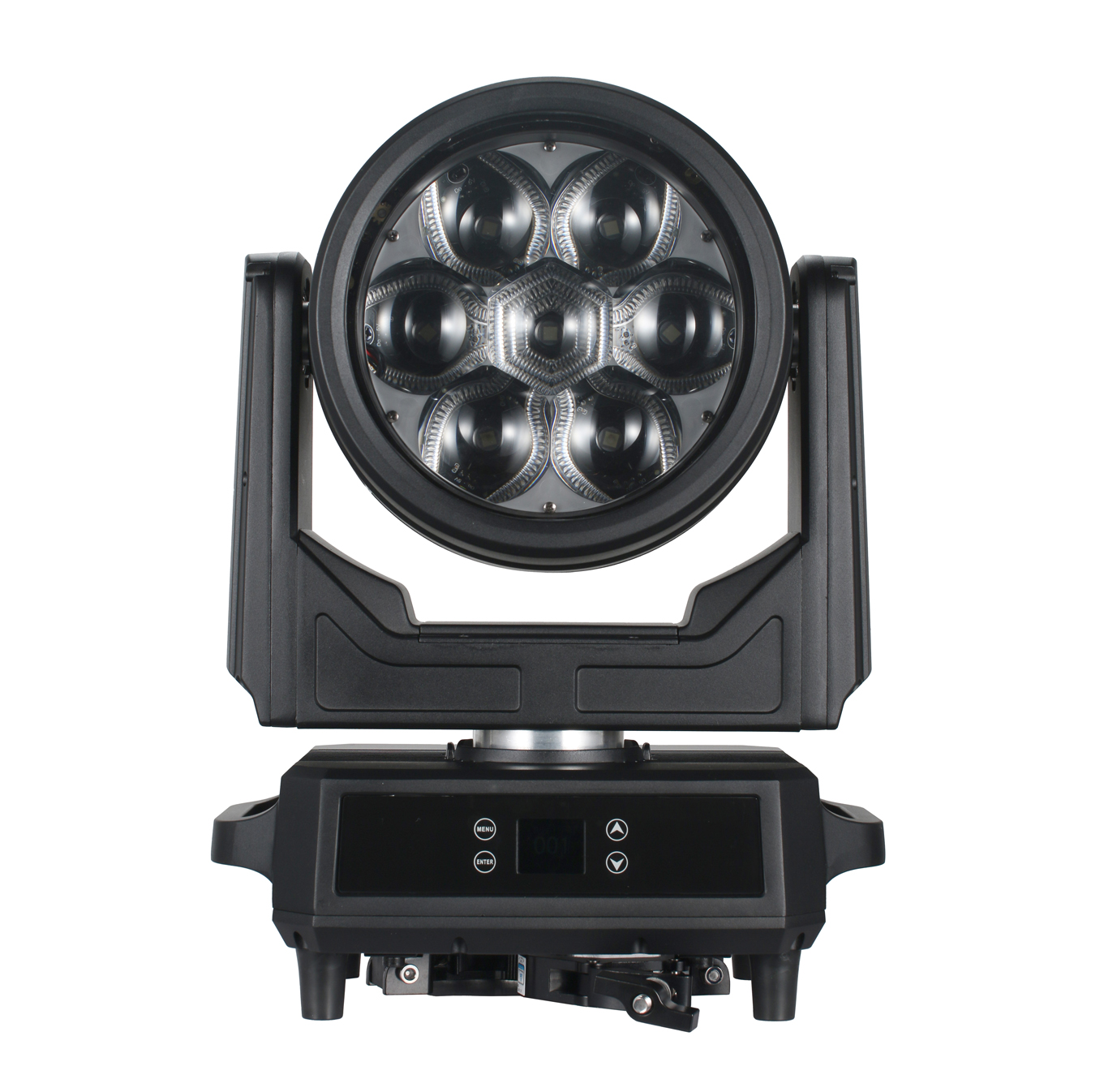

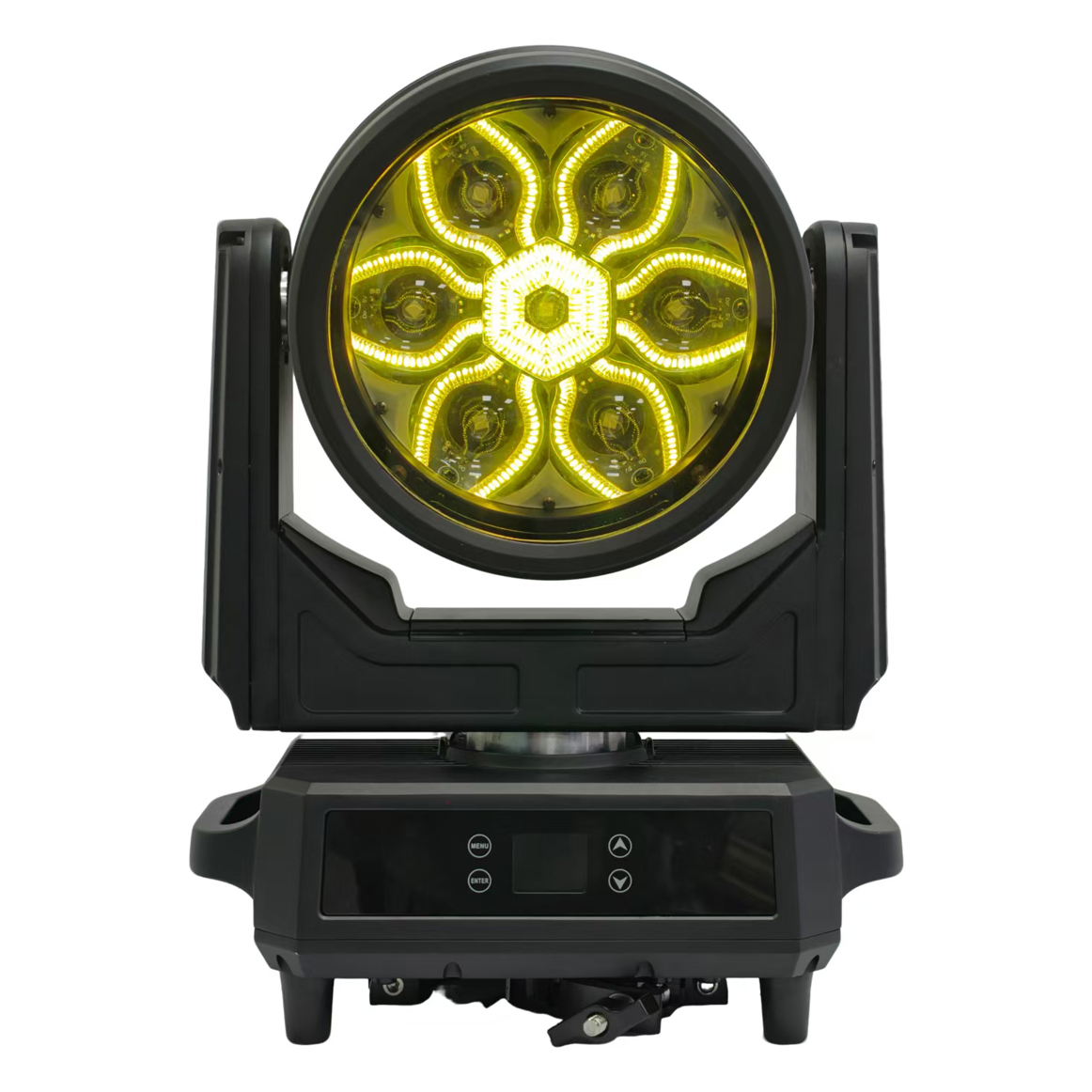

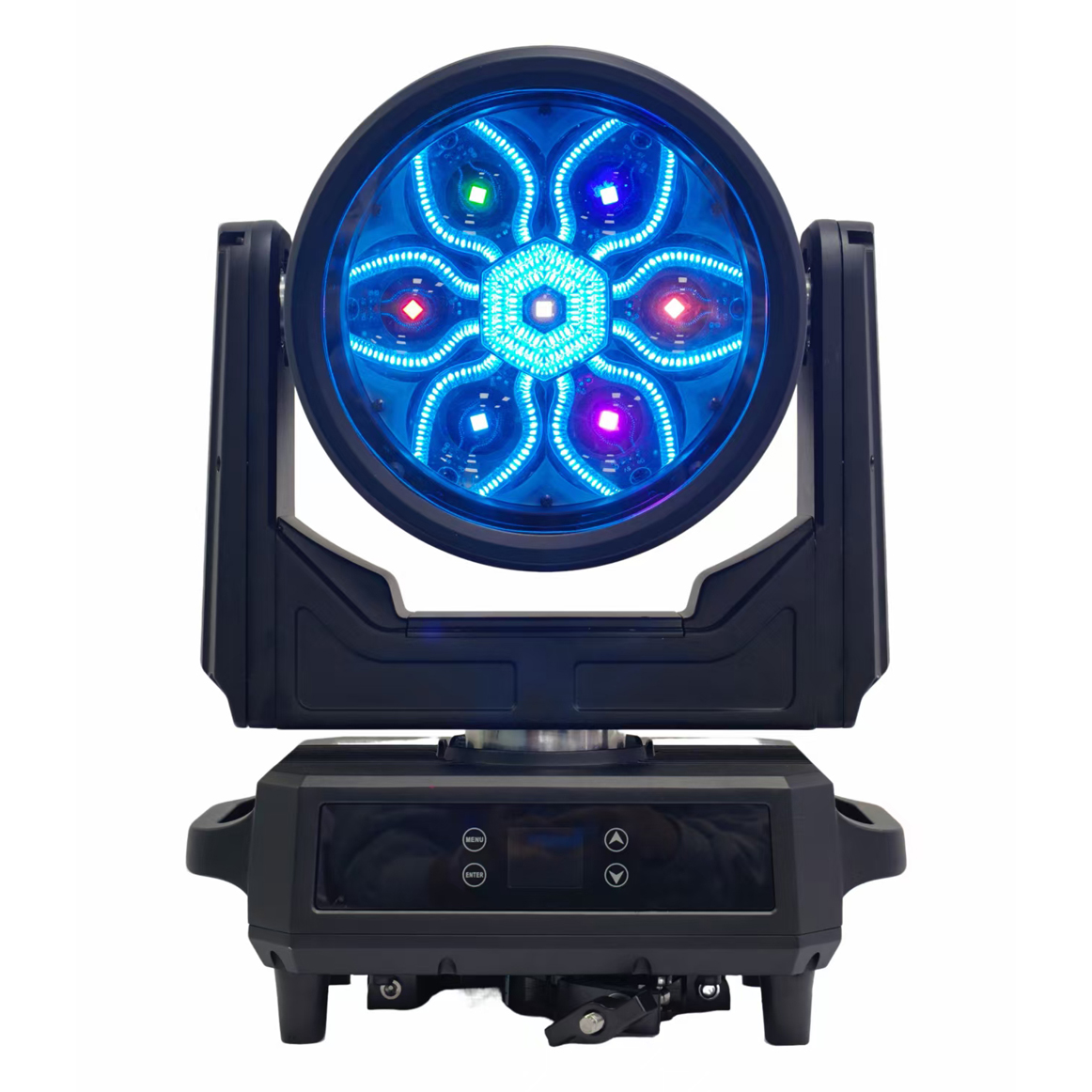

7pcs 60W Waterproof Beam Spot Wash Zoom LED Moving Head Wash Light FD-LW760B

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
7PCS 60W RGBW  LEDs + 210pcs 0.3W 5050
3in1 RGB LEDs
Zoom Range:4° to 60° with a high-optical efficiency,motorised linear zoom
DMX:20/36/57/93/23/39/67/103/106Channels
Color Temperature : 2700K-8000K
Availability:
Quantity:
  • FD-LW760B

  • Fondlites

Power Supply

Voltage:AC100-240V  50-60Hz

Power :650W


Light Source

Led Source: High power 4in1 RGBW 7Pcs 60W LEDs + 210pcs 0.3W 5050

3in1 RGB LEDs

Zoom Range:4° to 60°

Lifespan:50000hours

Color: RGBW


Optical System

Dimmer: 0-100% linear dimmer

Color Mixing: Uniform RGBW Color Mixing System and Rainbow Effect

Zoom Angle: 4° - 60Linear zoom function

Color Temperature : 2700K-8000K

Pixel Effect: Each LED and Color can be control individually

Dimmer: 0-100% linear dimmer



Control

DMX Channel: 20/36/57/93/23/39/67/103/106Channels

Control Modes: DMX512, Auto, Master-Slave

Protocol: DMX-512, RDM,Art-Net,Scan

RDM: Bidirectional communication


Rotating Lens: Lens can control rotating in both direction makes the bee eye

effects


Strobe : 1~30 times/ second electronic strobe and random strobe

Inside aperture : can be controlled at a single point, allowing for free pursuit of

flowing color changing effects


Construction

Housing Material:Aluminum Alloy

Housing Color: Black

Cooling: Temperature controlled, overheating protection Construction


Movement

X-axis : 540° (16bit precision scan)

Y-axis: 270° (16bit precision scan)

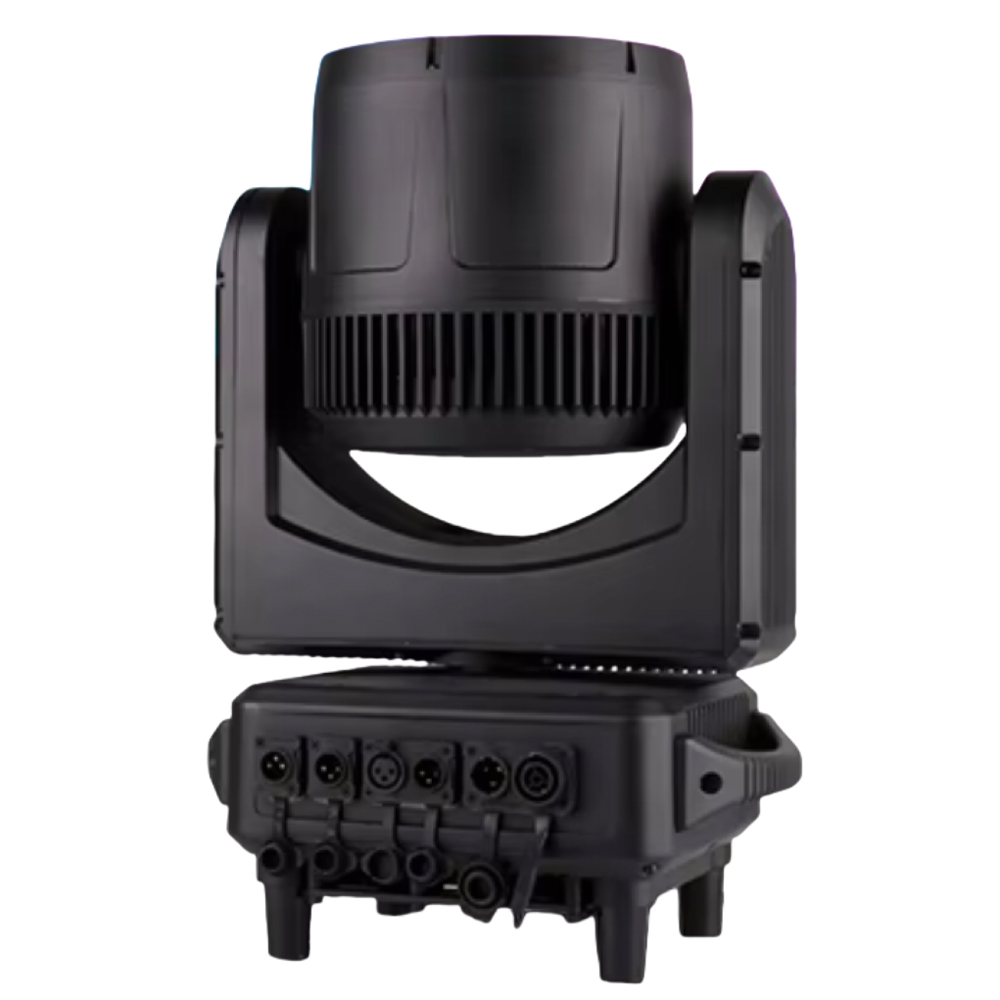

Connections

DMX socket: Seetronic 3-pin XLR waterproof socket in/out

Power Socket: Seetronic Powercon waterproof socket in/out

Art-Net Socket:Seetronic Art-Net waterproof socket in/out


Working Environment

Working environment: -20°C to 45°C

IP rate: IP65


Size / Weight:

Product Size: 392x283×511mm

Carton Packing Size:470*320*620mm

Net Weight:20kgs

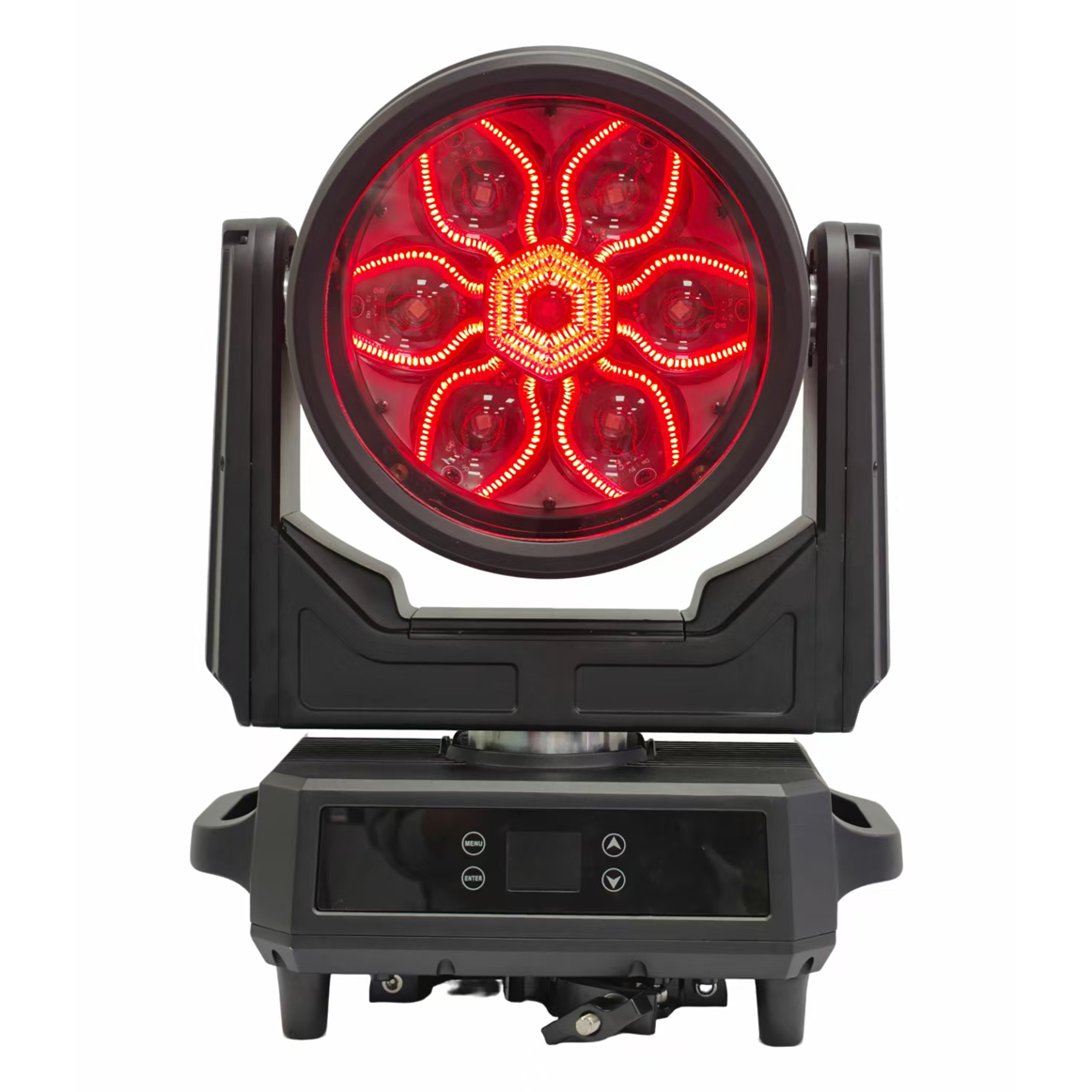

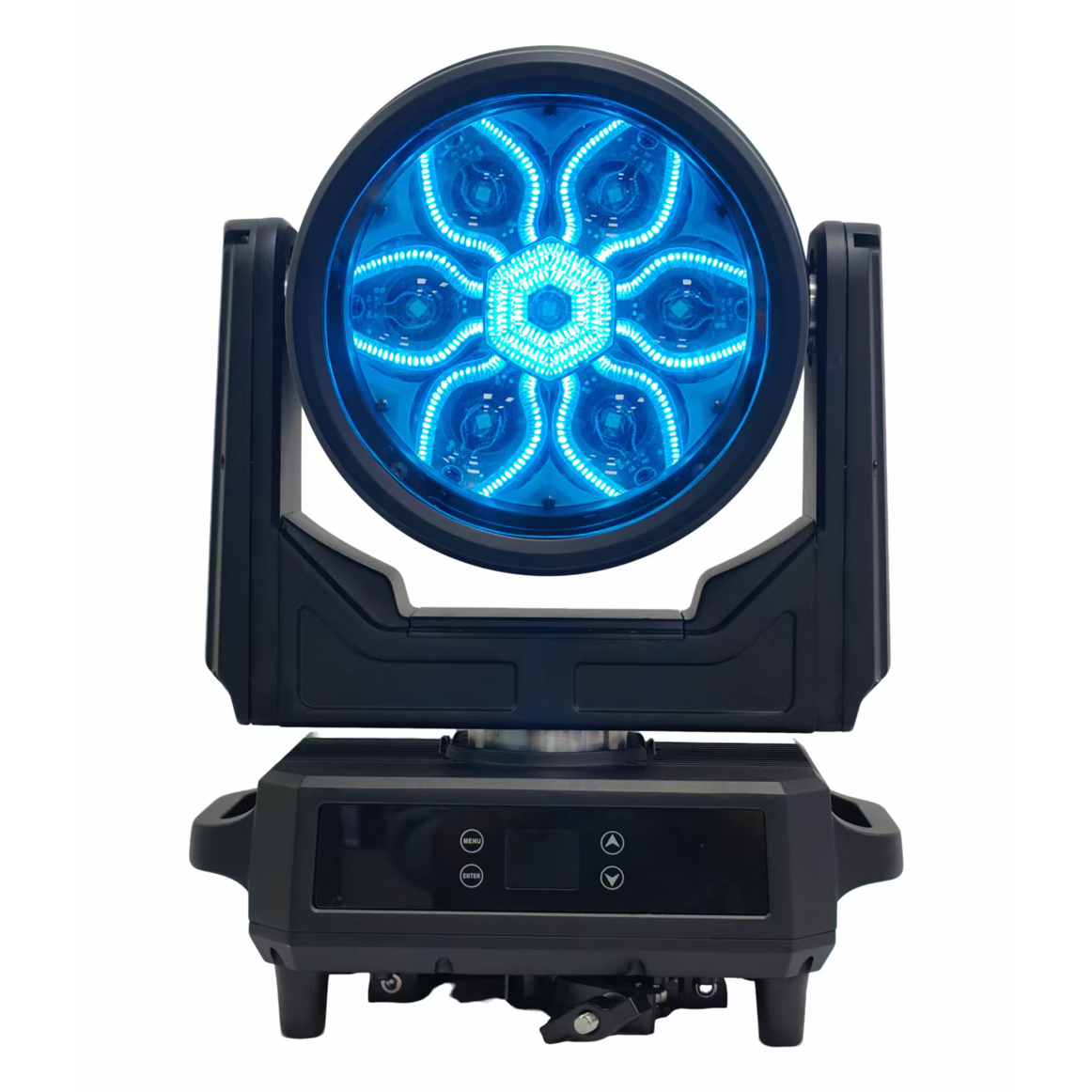

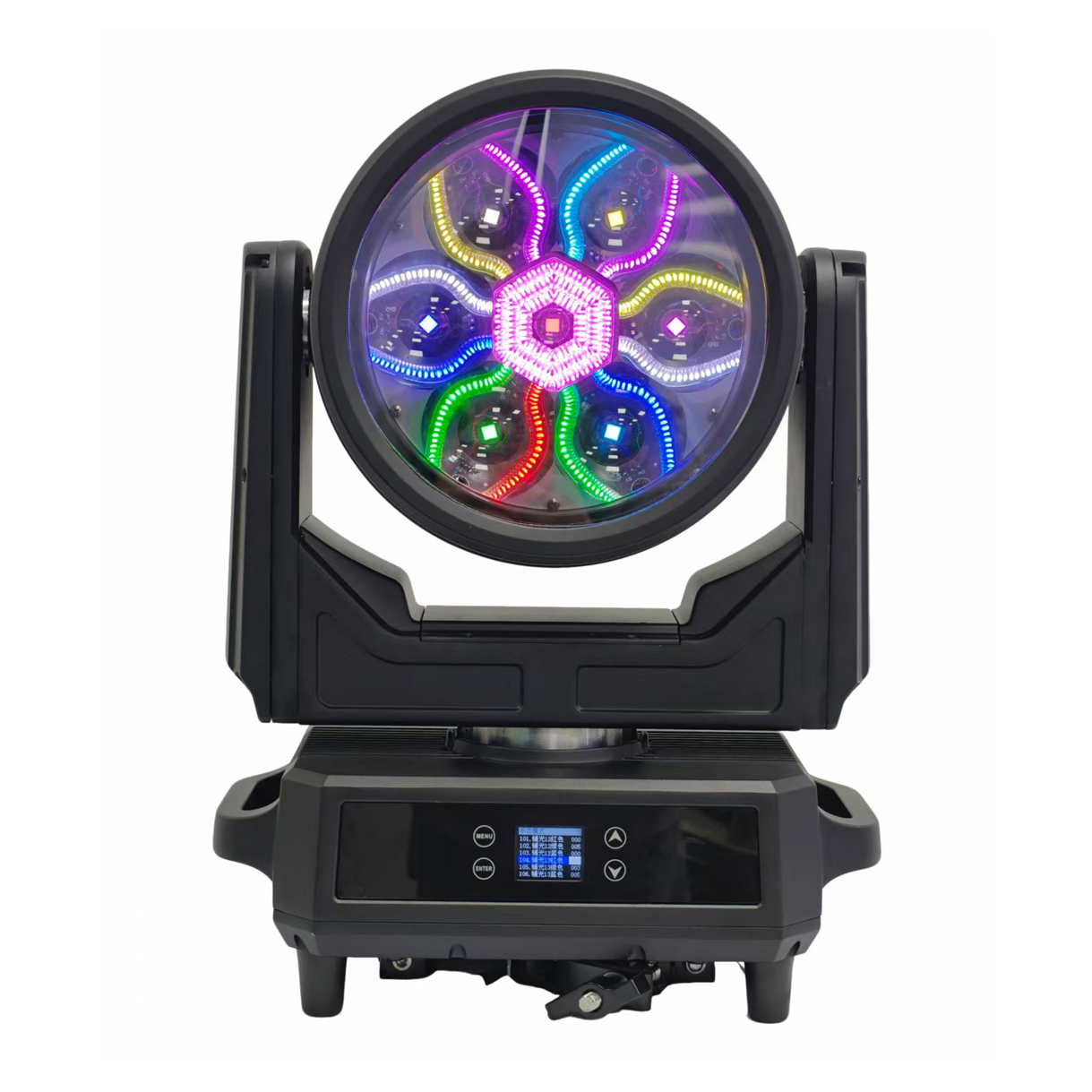

7pcs 60W Waterproof Beam Spot Wash Zoom LED Moving Head Wash Light

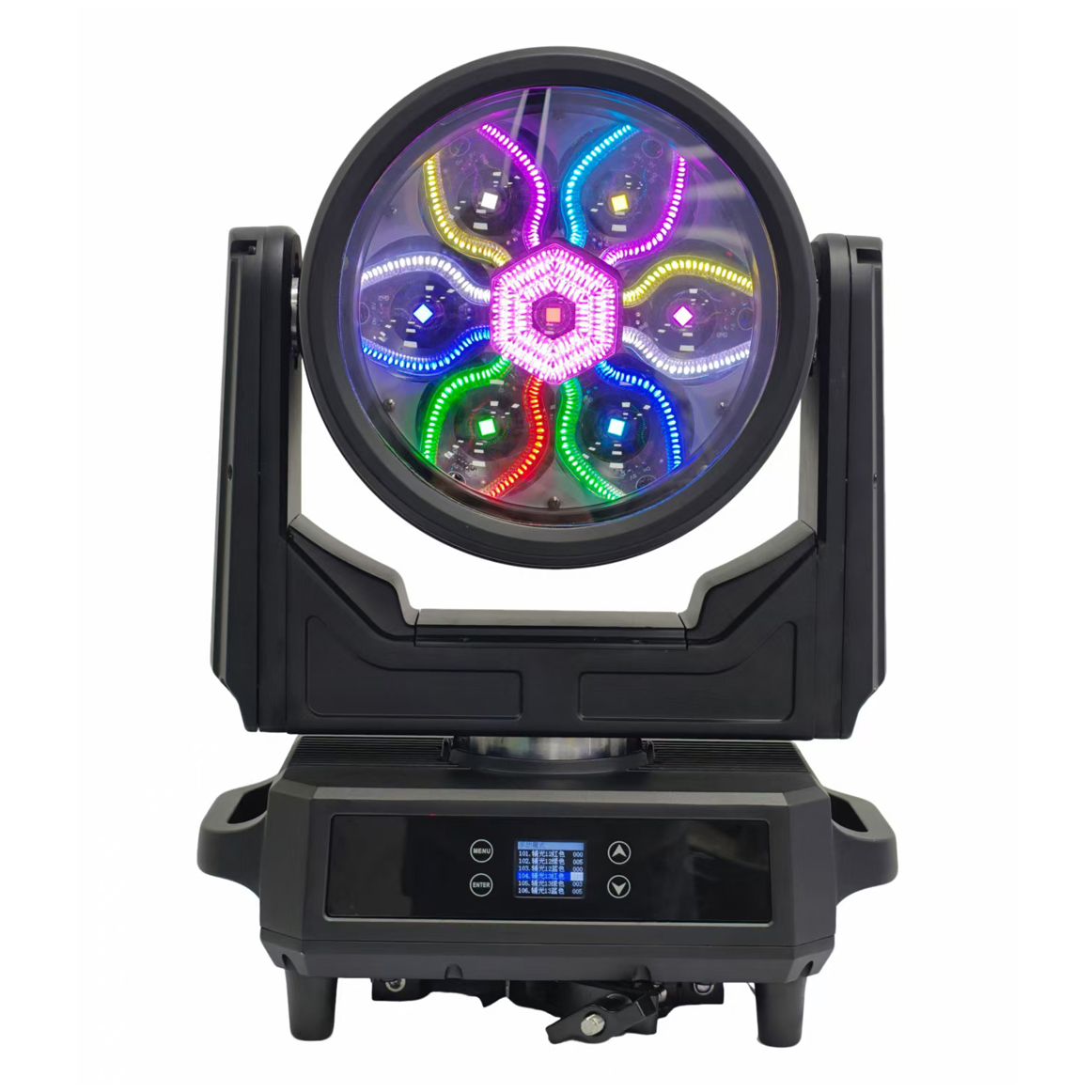

Waterproof 7pcs 60W Wash Moving Head Light

Fondlites FD-LW760 is a novel design, flexible, small size and light weight zoom LED moving head washing light, Beam angle is 4°-60°, the zoom is smooth, fast and quiet. 7pcs 60W high-brightness 4in1 LED lamp beads (RGBW), organically combined with high-definition optical lens, uniform and soft light output, pure color mixing, and flicker-free control function design. The product features include variable speed closing light/strobe effect, built-in various self-propelled programs and macro function effects, which is simple and easy to use. At the same time, the horizontal and vertical axis is very quiet and smooth.


The scanning position memory function can be automatically reset, with fan cooling and automatic temperature detection function, when the system detects that the temperature is too high, it will automatically stop working to protect the lamp.


It is a high-efficiency LED dyeing light that combines beam, image, and unique effect lights at the same time. 4~60 degree ultra-large zoom zoom, free switching from beam to dyeing. Each LED light bead can be individually controlled to create colorful effects. Seamless splicing lens disk design (like honeycomb), aspheric lens structure. It makes the light spread more evenly when dyeing, and there are no gaps. The color temperature can be adjusted linearly, and the single 40W RGBW lamp bead has a high color rendering index, which fully meets the requirements of TV broadcasting.
