Waterproof 381W Beam Moving Head Stage Light for Building Bridge FD-DW381


Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Waterproof IP56
Beam angle: 1.8°
OSRAM 381S lamp
Diameter of lens:165mm
DMX512 Control
Power consumption:480W
  • FD-DW381

  • Fondlites

Light Sources

Bulb : OSRAM 381S lamp

Lifespan:2000 hours

Color temperature : 8500K

Power Supply

Voltage:AC100-240V  50-60Hz

Power :480W

Optical System

Beam angle: 1.8°

Diameter of lens:165mm

Strobe: 0.5-13Hz/s, adjustable speed

Dimmer: 0-100% linear electronic dimmer

Optical system: high-precision glass lens

Color Wheel:14 color+open,bidirectional rotation rainbow effect

Gobo Wheel:17 static gobos+open,gobo with shaking function

Prism:8-facet prism,(8+16)-facet prism,rotatable in both directions and overlayable

Zoom: electronic linear zoom, distance from 3m to infinite

Focus:Variable motorized focus(0-100%)

Frost:An independent frost


Pan: 540°,8/16 Bit movement resolution

Tilt: 270°,8/16 Bit movement resolution

Automatically accurate positioning



Channels: 16channels

Working Environment

Working temperature: -20-50℃

IP rate: IP56


Size: 355x320x562mm


Carton Size:460x450x580mm,G.W.:23kg

Flight case size:820x790x630mm(2in1),G.W.:55kg

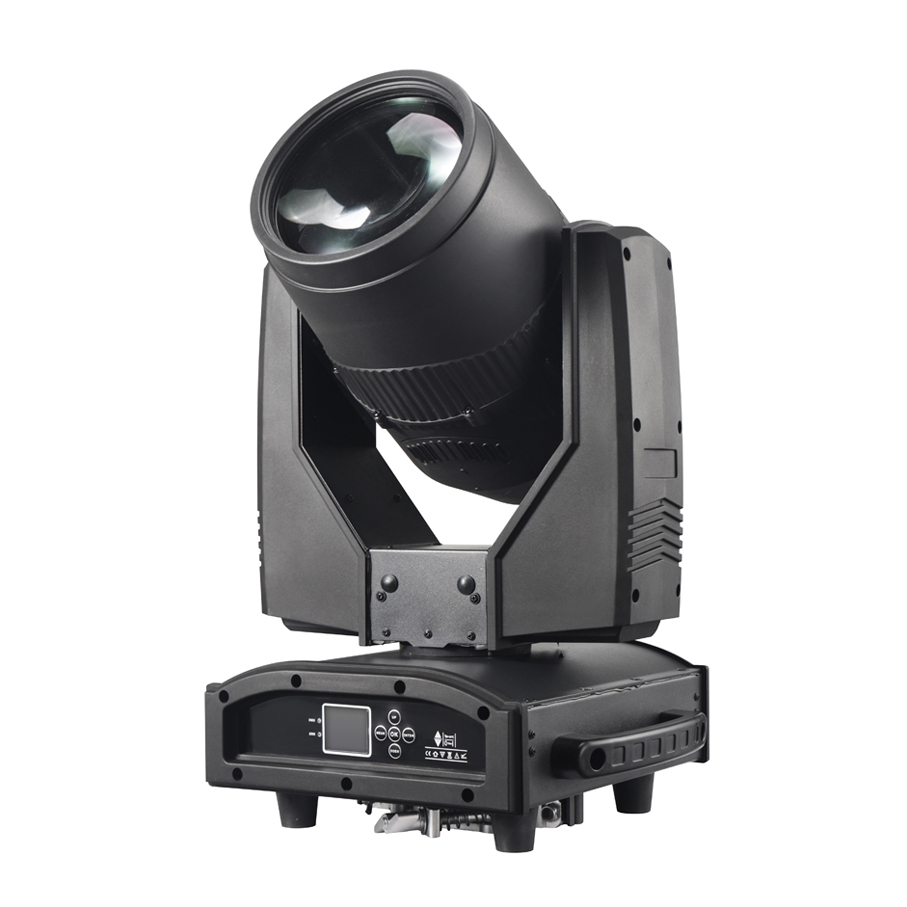

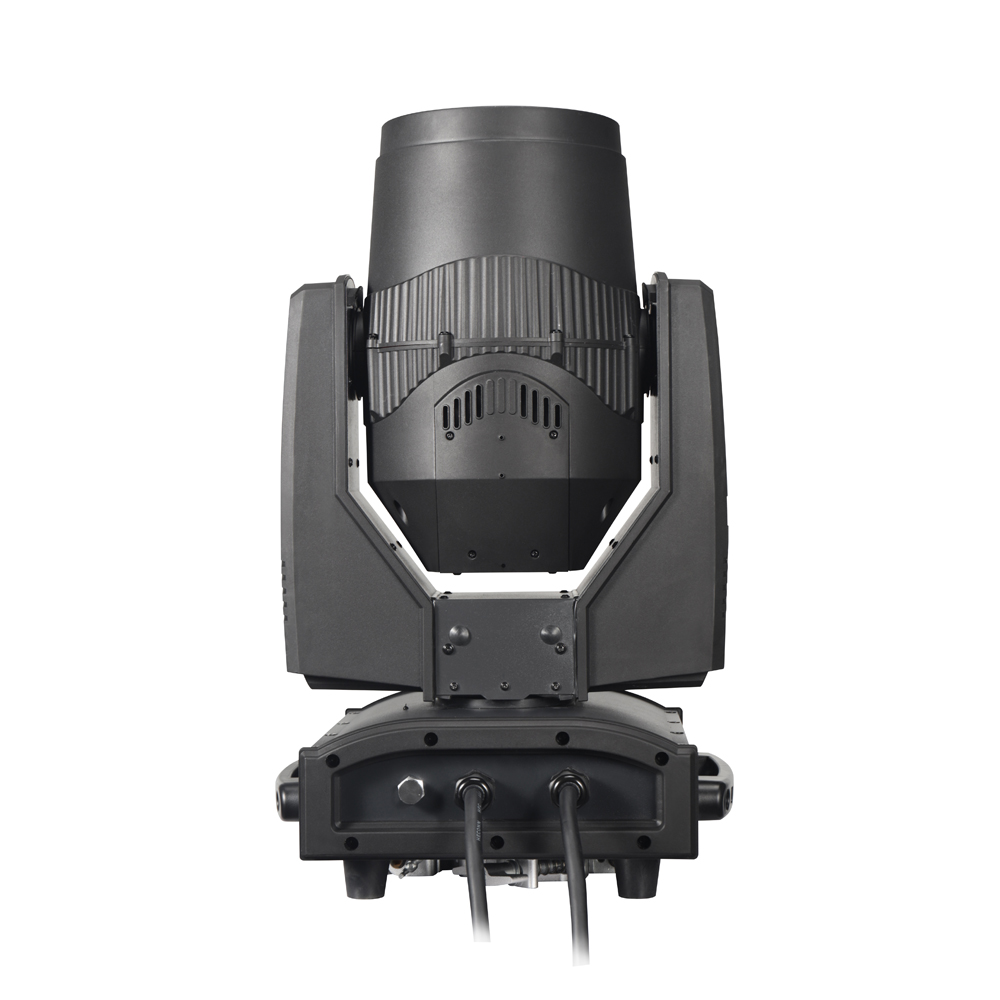

Waterproof 381W Beam Moving Head Stage Light for Building Bridge

381 Waterproof Moving Head Light

The 381W Moving Head Light is an all-weather luminaire that can make a sharpy beam effect, with a waterproof rating of IP56. Equipped with OSRAM 381S bulb and efficient optical system combined with intelligent electronic zoom 1.8°. The large light-emitting lens with a diameter of 165mm; the X/Y positioning is smooth and accurate, the professional color wheel presents a phantom color effect, and the multi-gobo wheel switching is quick and sensitive, and the effect is more colorful. It can flexibly create a uniform and colorful pattern effect, and easily show the wonderful phantom lighting effect. The color mixing is uniform and the color reproduction is excellent, which can create a brilliant stage light and shadow vision, and improve the stage performance level in an all-round way. It is also a waterproof outdoor moving head light, which is completely suitable for dust, rain, sunshine and other harsh environments.
