DMX-4 Splitter FD-CA04Min

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Fully compliant to DMX-512 (1990) specification
Inputs and outputs are true RS-485 rated.
3 pin XLR input and a passive loop through.
★4 way isolated DMX splitter output.
Input isolated from outputs over 1000VDC.
Outputs are isolated from each other over 1000VDC.
1U high 19 inch rack mount construction.
Availability:
Quantity:
Inquire Add to Basket

Power supply, 90~240VAC 50Hz / 60Hz , 15W .

Fully compliant to DMX-512 (1990) specification

Inputs and outputs are true RS-485 rated.

3 pin XLR input and a passive loop through.

4 way isolated DMX splitter output.

Input isolated from outputs over 1000VDC.

Outputs are isolated from each other over 1000VDC.

1U high 19 inch rack mount construction.

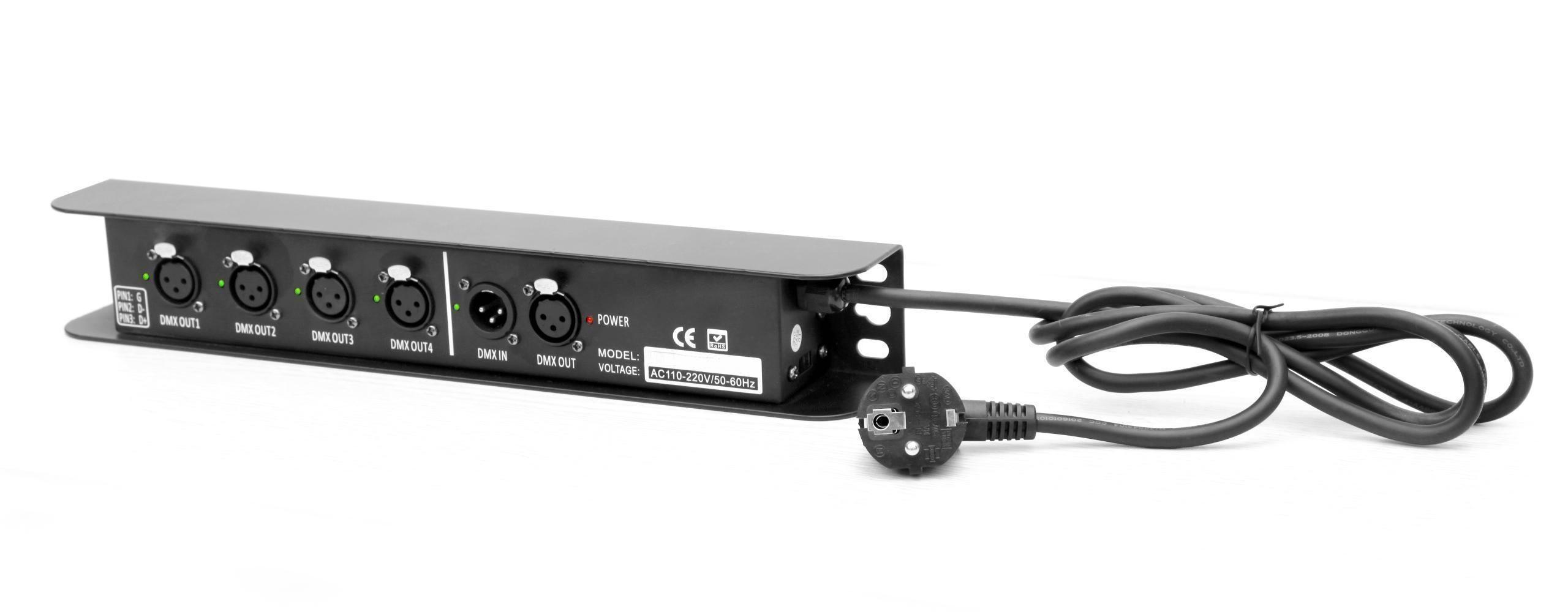

DMX-4 Splitter

中性图片

DMX-4 Splitter is a DMX512 distribution amplifier It is specially designed for connection of DMX receivers (dimmers, color changers, moving light, etc.) in a star configuration.

DMX-4 Splitter can surmount the restriction that similar one can only connect 32 sets of equipment

The multiple output optically isolated DMX512 distribution amplifiers have become necessary in many DMX512 systems.

DMX-4 Splitter provide total electrical ground isolation between different branches of the star. This greatly decreases problems with ground loops.

DMX-4 Splitter amplifies and refits the DMX signal, that it makes the DMX data transmission more reliable.
