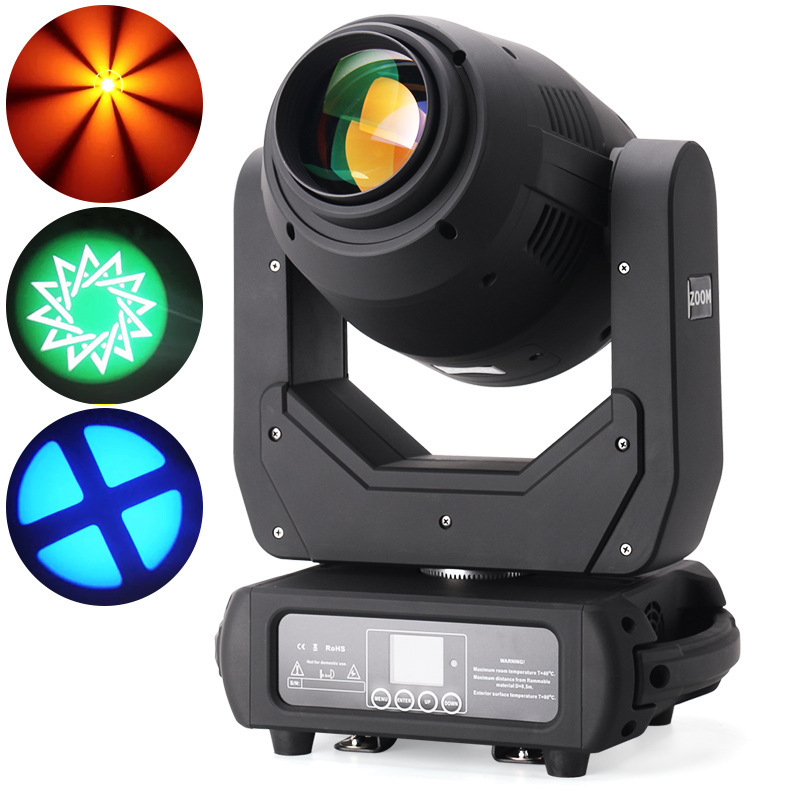

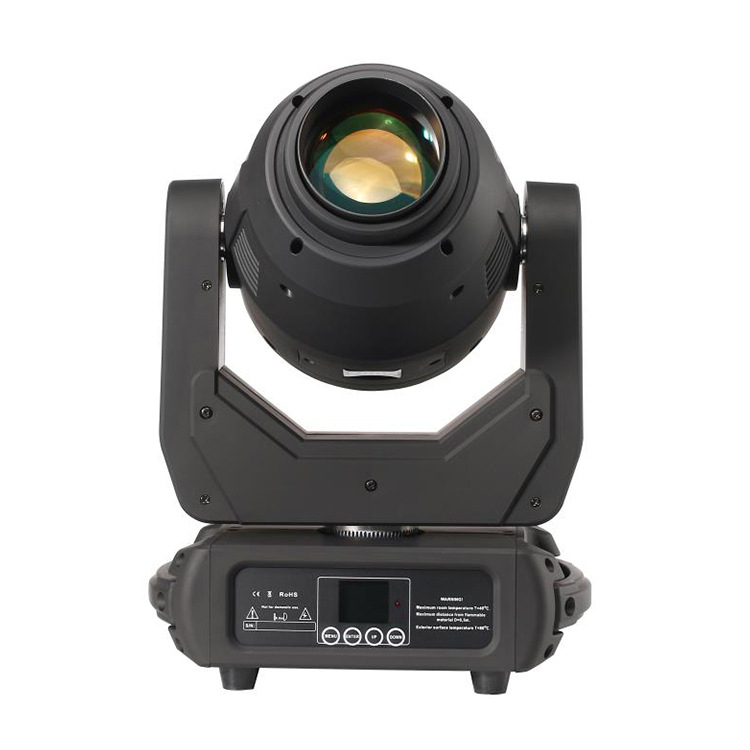

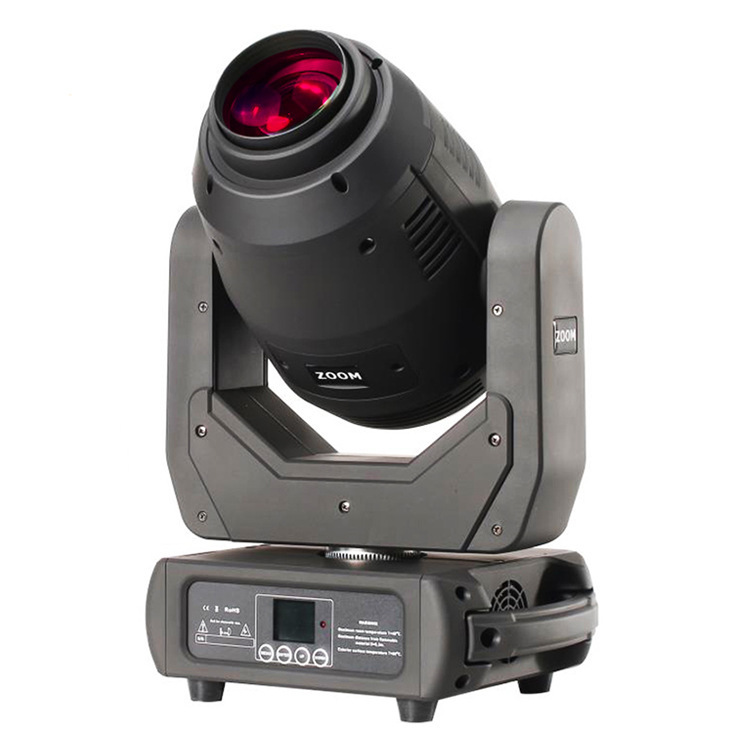

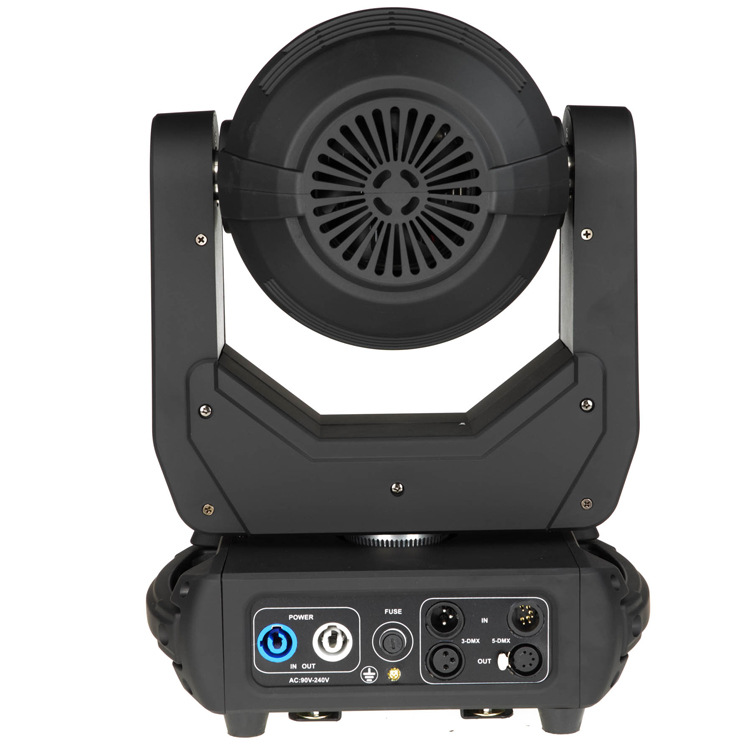

LED Beam Spot Wash 3in1 Zoom Led Moving Head Light FD-LM300BSW

Share to:
300W white LED module
Lamp life: >20000 hours
Color temperature: 7500K
0-100% linear dimmer
LCD display
DMX 512 Control
IP rate: IP20
  • FD-LM300BSW
  • Fondlites

Light Source

Leds:300W white LED module

Color temperature: 7500K

Lamp life: >20000 hours

CRI: >75

Zoom angle:5°~30°

Power Supply

Voltage:AC100-240V  50-60Hz

Power :400W

Optical System

Optics: High-precision optical lens.

Dimmer: 0-100% linear dimmer

Strobe: 1-25 times/second

Color wheel: 1 color wheel, 9 colors + white light, half color, rainbow effect.

Static Gobo wheel : 10 fixed gobos + white light

Rotating gobo wheel: 7 gobos + white light

Atomizing mirror: with dyeing effect


X-axis: 540°, 16Bit

Y- axis: 232°, 16Bit


Control panel: LCD display

Control protocol: DMX512

Control channels: 16/18 DMX Channels


Housing Material:Aluminum

Housing Color: Black


DMX connector: 3Pin XLR

Working Environment

Working environment:-20°C ~ 40°C

IP rate: IP20


Product size: 365×280×600mm

Net Weight: 16.5Kg

LED Beam Spot Wash 3in1 Zoom Led Moving Head Light Stage Light

O1CN01UmY9H21H9Vs53Pav1_!!2211829820715-0-cib (1)

Fondlites FD-LM300BSW is a breakthrough high-power LED moving head light, with smooth and precise linear electronic zoom, the zoom angle is 5.5°-30°, the volume is half smaller than similar products 300W moving head light.

The product uses a high-efficiency 7500K 300W white LED light source, which is perfectly combined with the entire set of individually designed high-definition glass optical systems. The light spot is clear and uniform and full. The product has a series of professional performances, including rotating gobo wheel, fixed gobo wheel, color wheel, 3 prisms, linear electronic focusing, fogging, linear dimming, strobe, etc.
