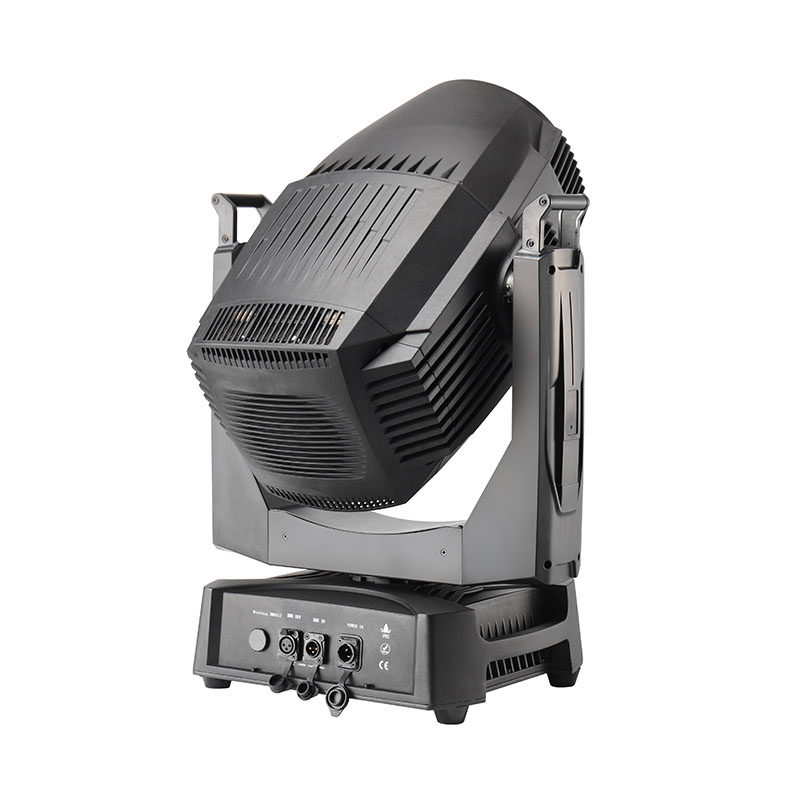

FD-LW1000BSW
Fondlites
Light Source
Light Sources: Powerful 800W LED
LED Lifespan: 20000 hours
Beam Angle: 5°-50°
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM
Light source
Light Sources: Powerful 800W LED
LED Lifespan: 20000 hours
Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 145 mm
Beam Angle: 5°-50°
Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM
DMX Channel: 34
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Rotating Gobos
6 Interchangeable high-precision glass gobos, plus open
Adjustable-speed rotating gobo in both directions
Image diameter: 23 mm
Outside diameter: 28 mm
Thickness: 1.1 mm
Max. thickness: 4mm
"SLOT & LOCK" system for easy gobo replacement
Static Gobos
6 high-precision gobos, plus 2 open
Framing System
Shutter Blades: 4 Blades, each with separate movement and full blackout
Movement: Smooth with variable speed, ultrafast for creating mid-air effects
Positioning: The blades can be precisely positioned
Rotation: +- 90° of the complete framing system
Color Wheel
Color Wheel 1: 6 colors plus open
CMY Linear 100%
CTO adjustment
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-220V~ 50/60Hz
Power consumption: 850 W
Power In/Out：Power Connector in/out
Data In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65
Package
Product Size:705*326*473mm
Product Weight:42.84 kg
Flight Case Size:935 *465*605mm
Flight Case Weight:71kg
