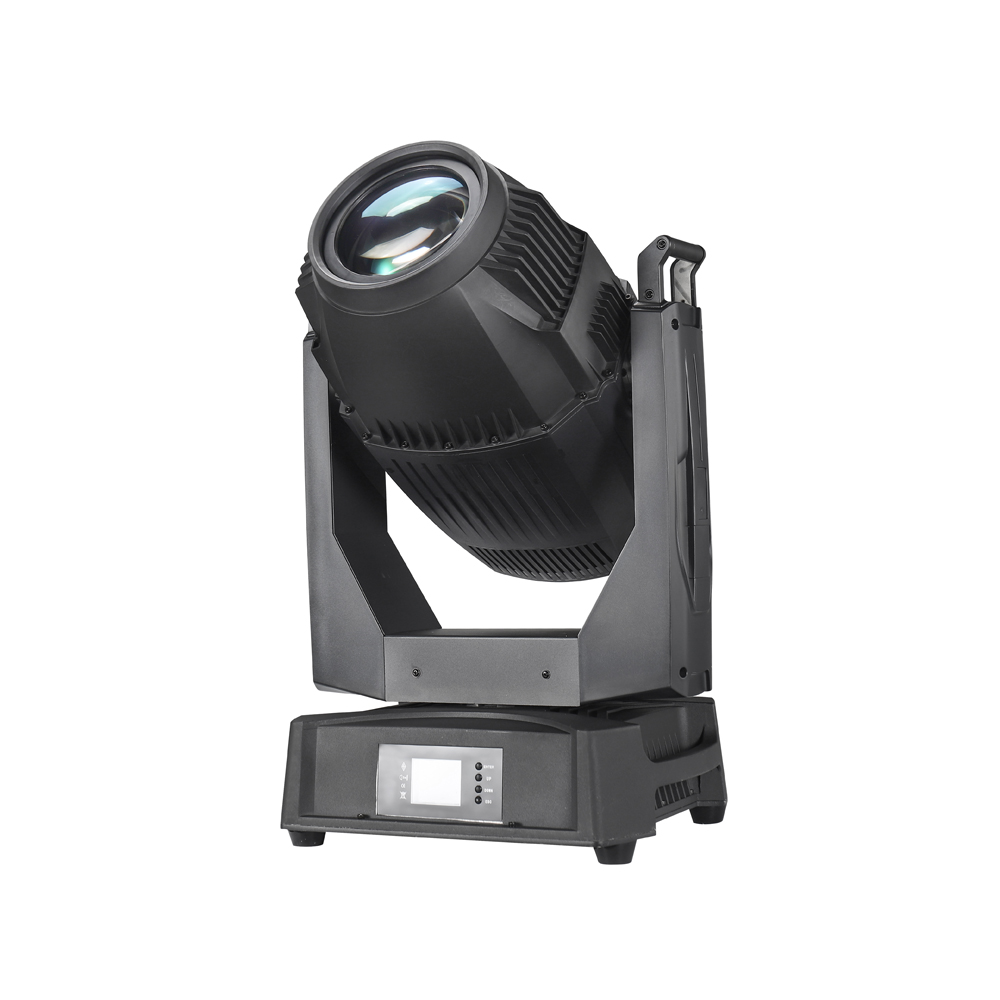

FD-LW400S
Fondlites
Light source
Light Sources: Powerful 400W LED engine
LED life expectancy: 20000 hours
Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 156 mm
Beam Angle: 4°-45°
Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM
DMX Channel: 20
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Rotating Gobos
7 Interchangeable high-precision glass gobos, plus open
Adjustable-speed rotating gobo in both directions
Image diameter: 18 mm
Outside diameter: 23 mm
Thickness: 1.1 mm
"SLOT & LOCK" system for easy gobo replacement
Static Gobos
10 high-precision gobos, plus 4 open
Color Wheel
Color Wheel 1: 7 colors plus open
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-220V~ 50/60Hz
Power consumption: 470 W
Power In/Out：Power Connector in/out
Data In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: -25°C
Protection Rating: IP65
Package
Product Size:419 mm*326 mm*663 mm
Product Weight:32.5 kg
Flight Case Size:935 mm*465 mm*605mm
Flight Case Weight: 71kg
