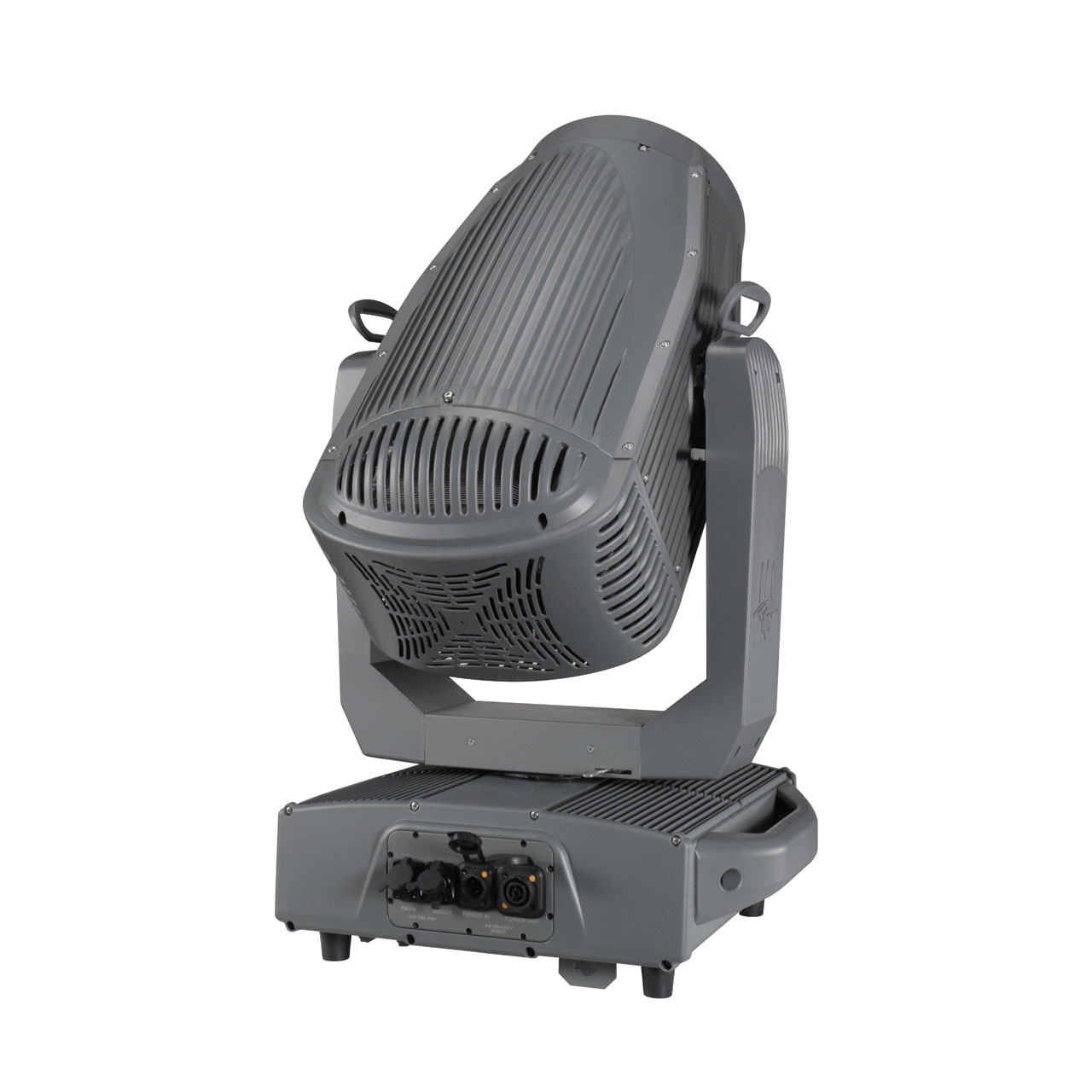

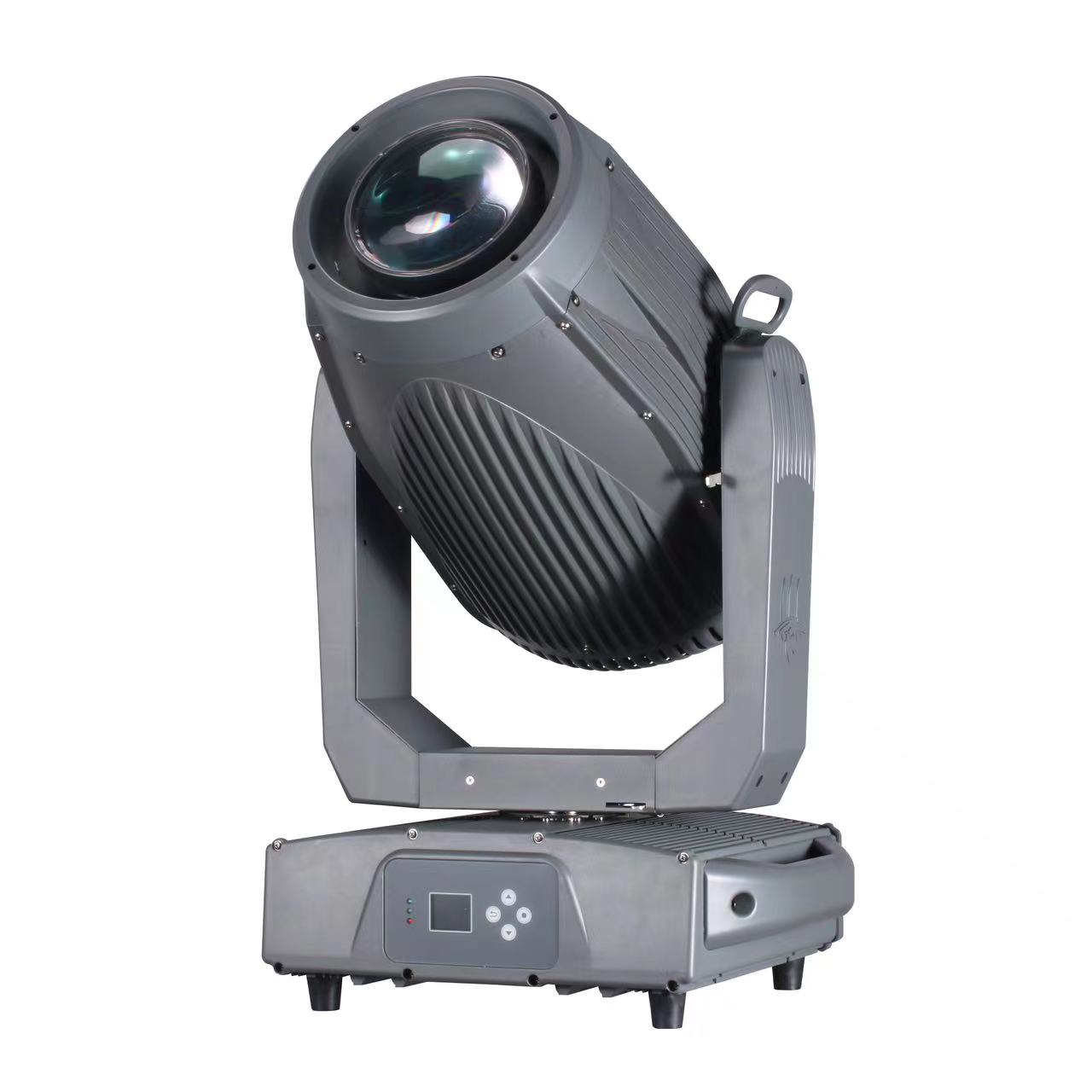

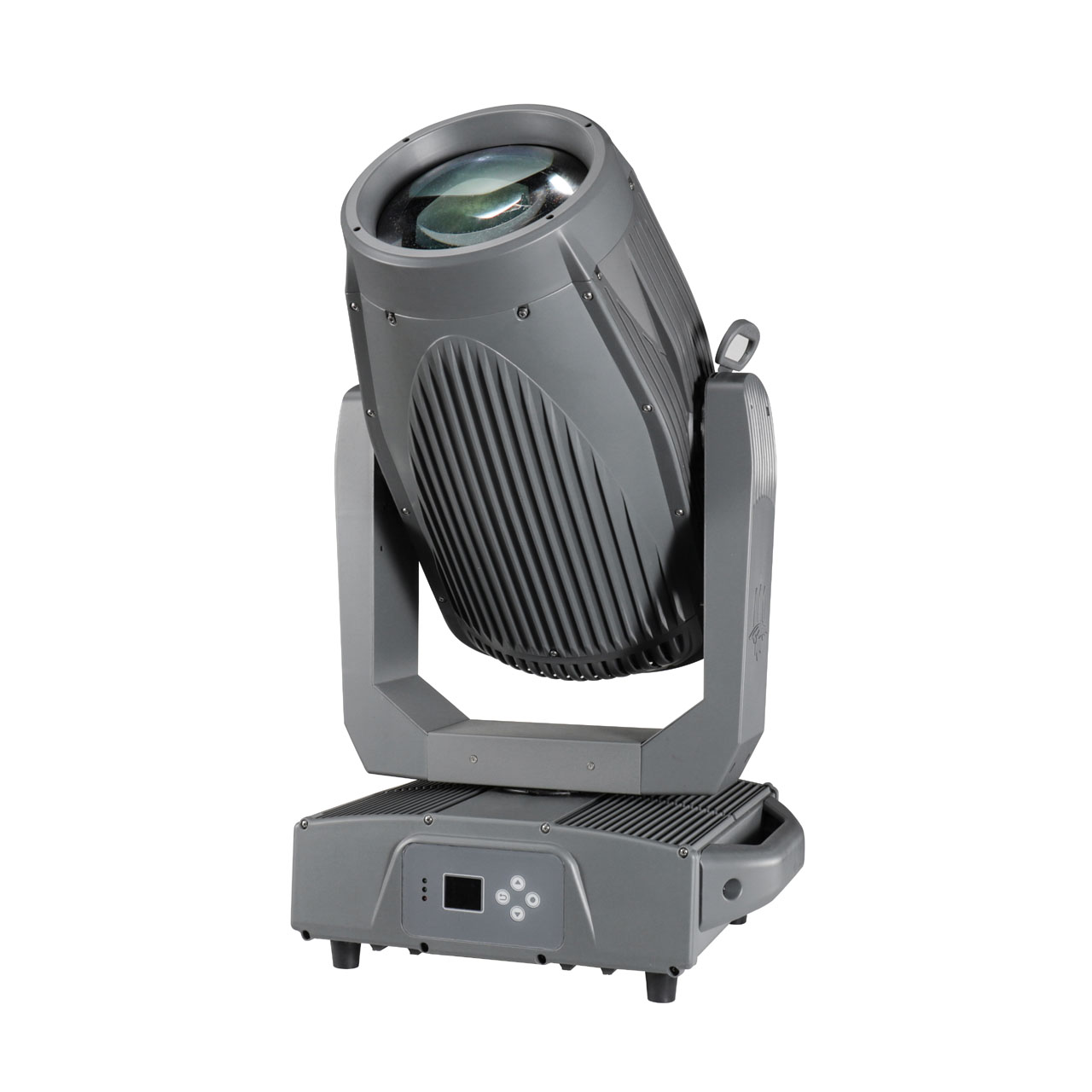

FD-DW550
Fondlites
Light source
Light Sources: 482W Osram
LED life expectancy: 3000 hours
color temperature:7600±300K
Power consumption: 550W
Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 200mm
Beam Angle: 0°-1.8°
Control
4-buttons touch panel
Display: LCD display
Protocols: DMX512/Auto/Sound,RDM
DMX Channel: 16/20 DMX512 channels
Pan/Tilt Resolution: 16 bit
Motor:Three-phase motor drive
Positioning:XY magnetic coding positioning
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Static Gobos
13 fixed patterns + 1 white light
Color Wheel
Color Wheel: 14 colors + rainbow effect + independent atomization effect;
Atomization
1 Independent atomizing staining effect
Prisms
8 Prism, rotating
Electrical
Power supply with electronic auto-ranging
Input voltage range: 100-220V~ 50/60Hz
Cooling system:adopt super high-quality copper tube full-enclosed radiator, gyroscope automatically adjust cooling system, effectively control the temperature of lamps.
Connectors
Power In/Out：Power Connector in/out
DMX In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: -25°C
Protection Rating: IP65
Package
Light Size:40*33*66cm
Net Weight:24kg
Packing size:51*44*67.5 cm
