5pcs 60W RGBW Zoom Dyeing Matrix Color Strobe Light FD-B560

Share to:
5pcs 60W RGBW LED
0-100% linear dimmer
16 bit precision scan
5 touch keys LCD display
DMX512 Control
  • FD-B560
  • Fondlites

Light Sources

Leds: 5pcs 60W RGBW LED


Strobe Leds: 42pcs 0.5W white LED+84pcs 0.5W RGB 3in1 LED

Beam angle: 2.8°- 31°

Spot angle: 5°-46°

Beam angle: 96°

Spot angle: 116°

Strobe light output luminous flux: 4,1000lm

Power Supply

Voltage:AC100-240V  50-60Hz

Power :500W

Optical System

Optics: High-precision optical lens.

Dimmer: 0-100% linear dimmer

Focus: electronic focus

Strobe: 1-20 times/second


X-axis/Y-axis: 16 bit precision scan

Electronic dimming: 16-bit

X-axis/Y-axis rotation angle: infinite rotation

Fixed lock: vertical lock

X-axis/Y-axis position automatic correction


Control panel: 5 touch keys LCD display

Control protocol: DMX512, RDM, voice control, self-propelled mode

Control channels: 24/29/105 channels


DMX connector: 3PinXLR

Working Environment

Working temperature: -20-45℃

Maximum ambient temperature: 45°C

Maximum surface temperature: 65°C

Minimum operating temperature: 0°C

IP rate: IP20


Product Size: 520*180*290mm

Net weight: 11kg

Carton size: 550*200*315mm

Net weight: 13kg

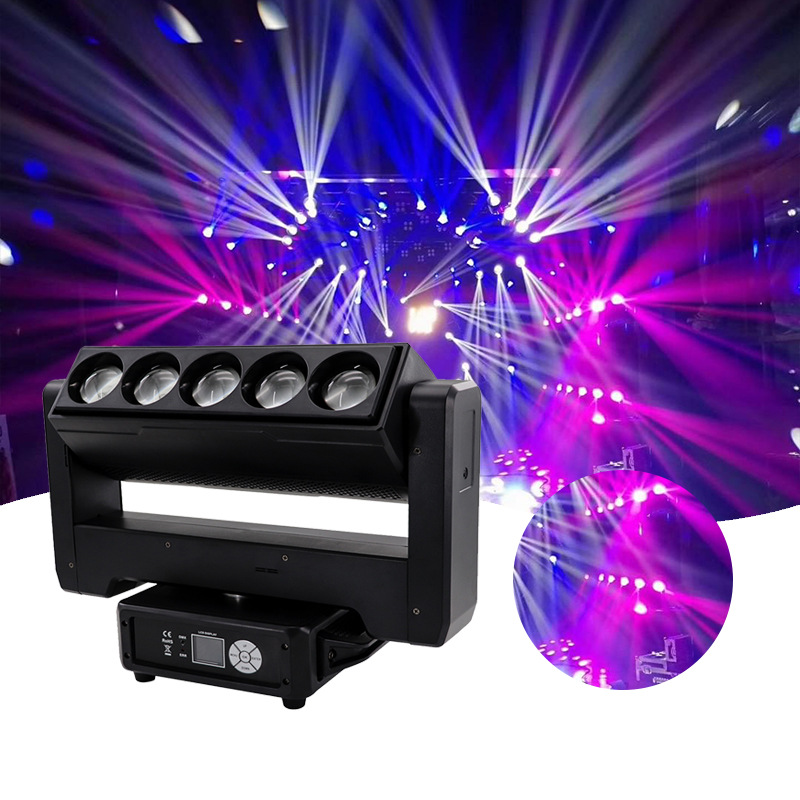

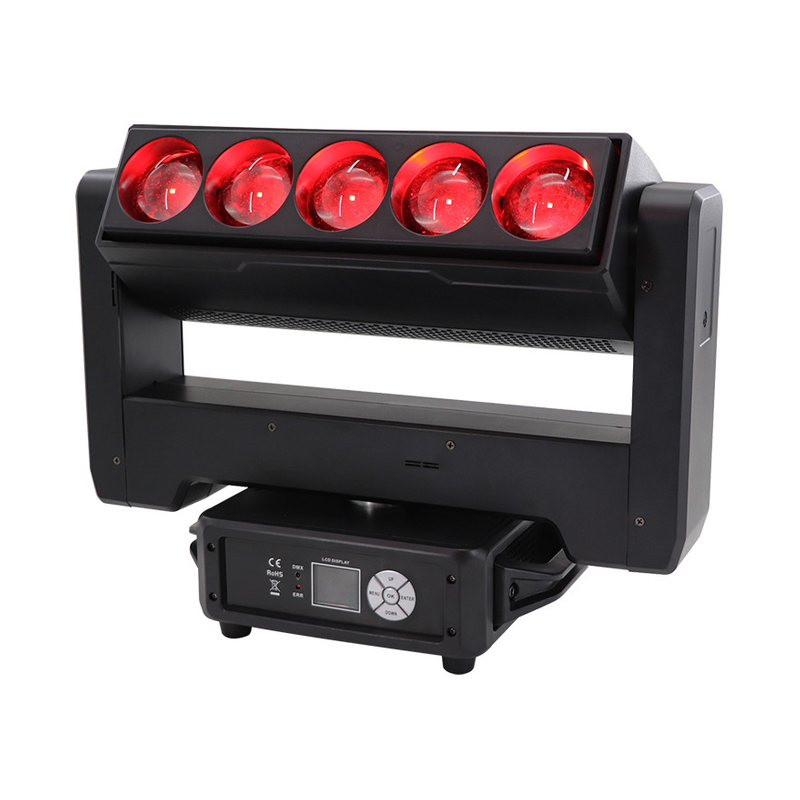

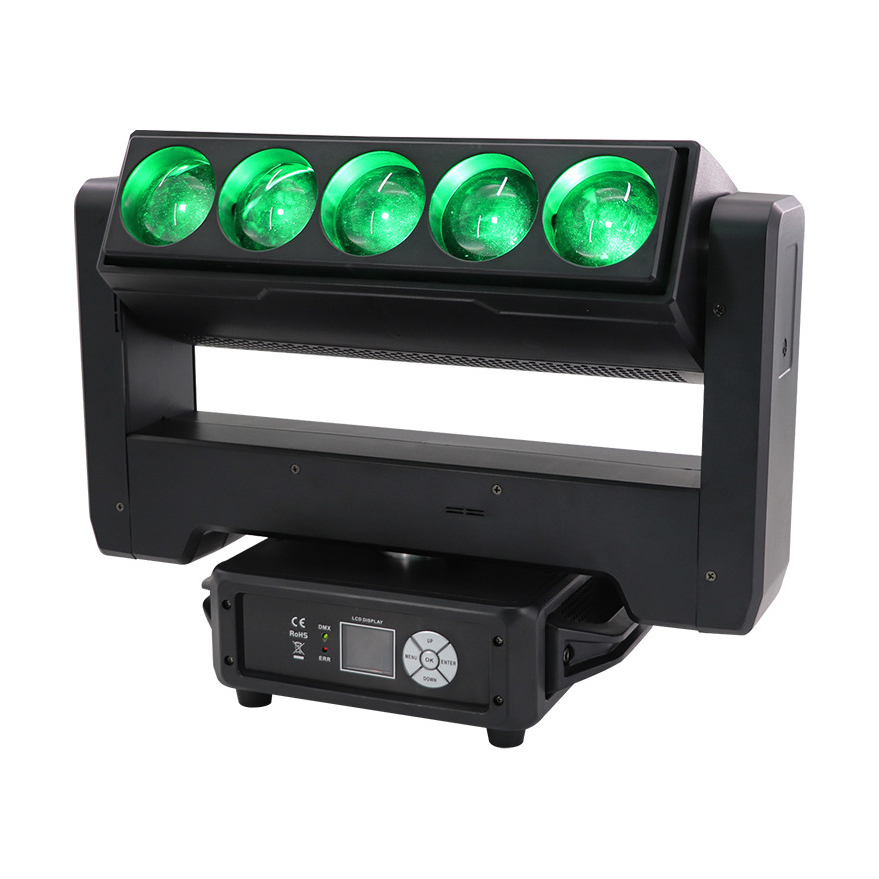

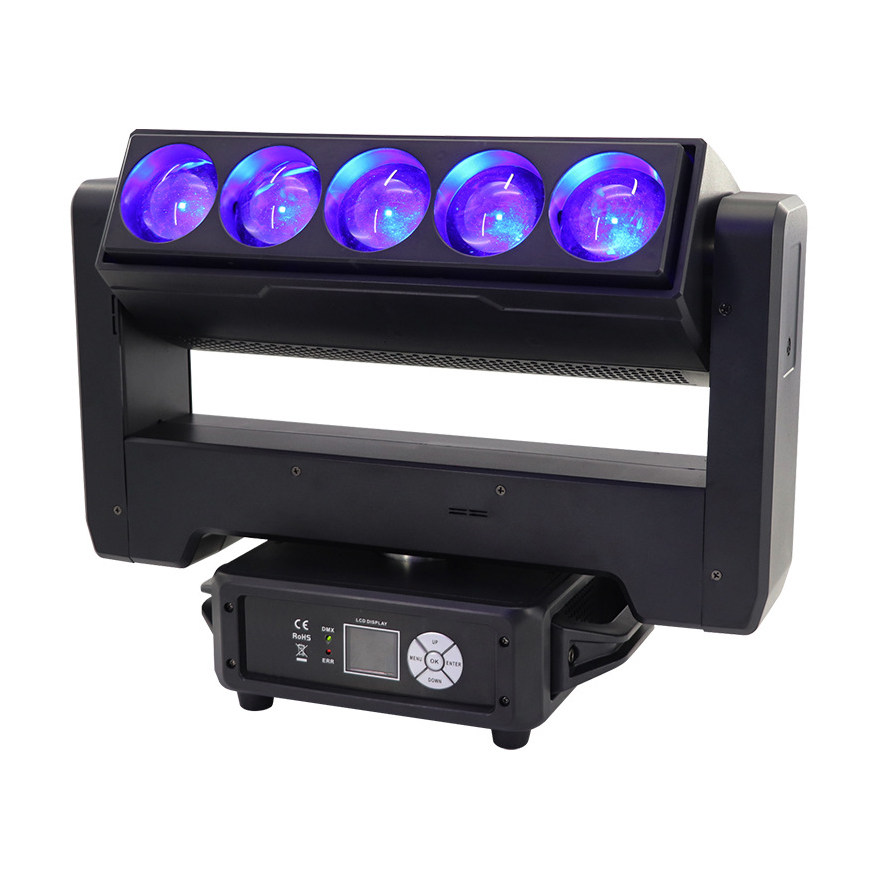

5pcs 60W RGBW Zoom Dyeing Moving Head Light Matrix Light Full Color Strobe Light


FD-B560 is an effect light suitable for concerts, bars, clubs, weddings, TV stations, variety shows and other fields. The moving head functions include dyeing and stroboscopic functions. In addition to point-by-point control, the five lamp beads can also be flexibly zoomed and focused, with a maximum dyeing angle of 110°. The other end of the head is equipped with a strobe function, and a variety of strobe speeds are optional. And the large rotation angle of the XY axis can realize the full encirclement of the stage by the light; the multi-function of one light provides a richer effect for the lighting engineer to create.


Can be installed horizontally or vertically

Universal operating position

There are 2 pairs of keyholes at the bottom

2 light hooks for 50mm light stand

Safety rope connection hole
