600W Zoom Outdoor Water Dynamic Gobo Projector Light FD-IWD600Z


Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Bright white 600W LED
Acceptable customized gobo
5°- 50° linear motorized zoom
0-100% variable linear dimmer
Light weight and compact design
Waterproof Rate IP65
  • FD-IWD600Z

  • Fondlites

Led Source

Light Source: 600W Color White LED

Color Temperature: 6600K

Average LED Life: 20,000 Hour


Input Voltage: 100-240V AC, 50/60Hz

Power Consumption: 750W

Optical System

Zoom: 5° – 50° linear electronic

Prism(selectable): 4-facet circular rotating prism

Focus: Motorized linear focus

Strobe: 0-25Hz variable speed, pulse and random strobe

Dimmer: 0-100% variable linear dimming curves


6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect

Rotating gobos

1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos

Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect

Glass gobo outside Φ28mm, insideΦ19mm

Water Dynamic effect

2 independent Water Streak glass wheels, two directional reciprocating rotation


DMX Channel: 13CH

Control Mode: DMX, Auto, Sound, Program, Manual

Full Color 180° Reversible LCD

DMX In/Out: 3 pin waterproof signal cable

Power In/Out: 3 pin waterproof power cable


Protection Rate: IP65

Body Finish: Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available

Cooling System: The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatly


Net Weight: 26.20kg

Gross Weight: 29.10kg

Product Dimension: 262×321×544mm

Package(Carton): 335×422×807mm

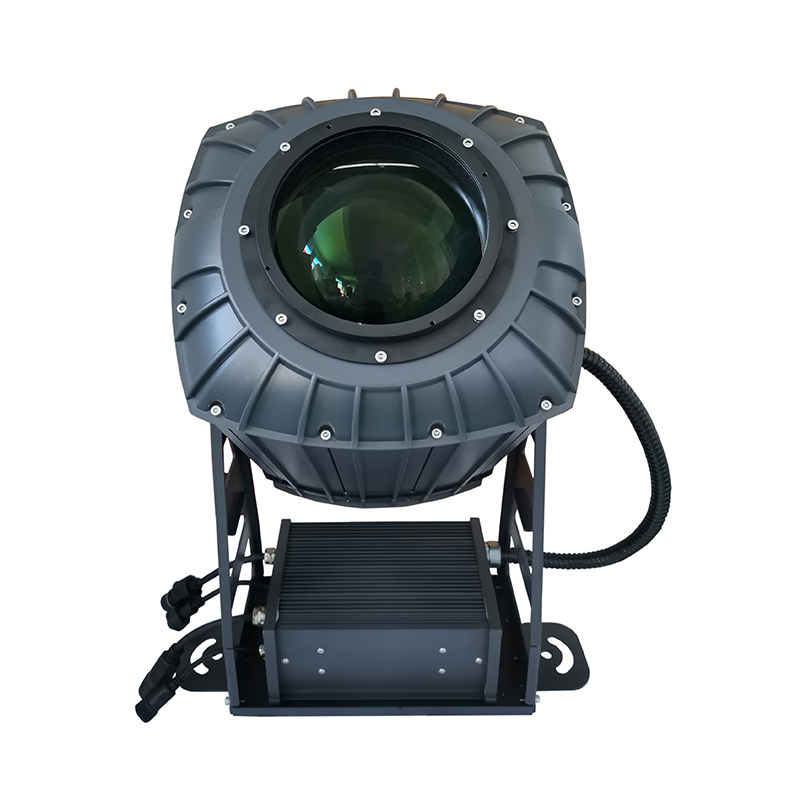

600W Zoom Outdoor Water Dynamic Gobo Projector Light

600W Zoom Outdoor Water Dynamic Gobo Projector Light

FD-IWD600Z 600 watt waterproof water projection lamp with compact structure and attractive appearance. It’s a professional water wave effect gobo light projection for the cultural tourism market, night view of distinctive town, theme park and bridge piers etc.

Beam angle of the ocean wave pattern logo gobo projector is adjustable from 5 degree to 50 degree. The rippling water effect gobo projector light has a color wheel can present 6 color changeable rainbow water effect. The advertising water ripple projection light features its high quality glass gobos. Compared with plastic and metal gobo, glass gobo offers the ability to project complex and intricate designs. It can be used and re-used over and over again for multiple events with its high heat resistance and clarity. The rotating gobo wheel is with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos.

A very capable gobo projector water wave that produces a number of nice water wave lighting effects. The light output is quite bright and produces a nice display.

The water effect projector also fits 5 freely control modes including DMX, auto, sound, program, manual and 13 DMX channels. There are 30 self-configured automatic programs for users’ convenient usage. Users could configure program freely via setting the function value on the LCD display of the gobo projectors for sale, even though there is no controller.
