Waterproof Ip65 100W Outdoor Led Logo Pattern Gobo Projector Light FD-IM100

Share to:
Modularized component
4 acceptable customized flower color gobos
Beam anlge 30°, 40°, 50°, 60°selectable
30 self-configured automatic programs
Advaned cooling design
Unique and fashionable outlook
  • FD-IM100
  • Fondlites

Led Source

Light Source:100W Color White LED

Color Temperature: 9200K

Average LED Life: 20,000 Hour


Input Voltage: 100-240VAC, 50/60Hz

Power Consumption: 130W max. at full output

Optical System

Focus: Motorized linear focus

Beam Angle: 30°/ 40°/ 50°/ 60° selectable

Strobe: 0-20Hz variable speed, synchronization, pulse and random strobe

Dimmer: 0-100% variable linear dimming curves

Rotating gobos

4 inter-changeable glass cloud gobos, Shake / Bi-directional rotating rainbow effect

Glass gobo outside Φ27mm, insideΦ24mm


DMX Channel: 7CH

Control Mode: DMX, Auto, Sound, Program,W-DMX(Selectable)

DMX Input: 3-pin Male signal cable

DMX Output: 3-pin Female signal cable


Body Material: Aluminum

Body Color: Gray

IP Rate: IP65


Net Weight: 9.55kg

Gross Weight:11.55kg

Dimension: 206×310×296mm

Package(1 in 1 Carton):295×500×445mm

Waterproof Ip65 100W Outdoor Led Logo Pattern Gobo Projector Light

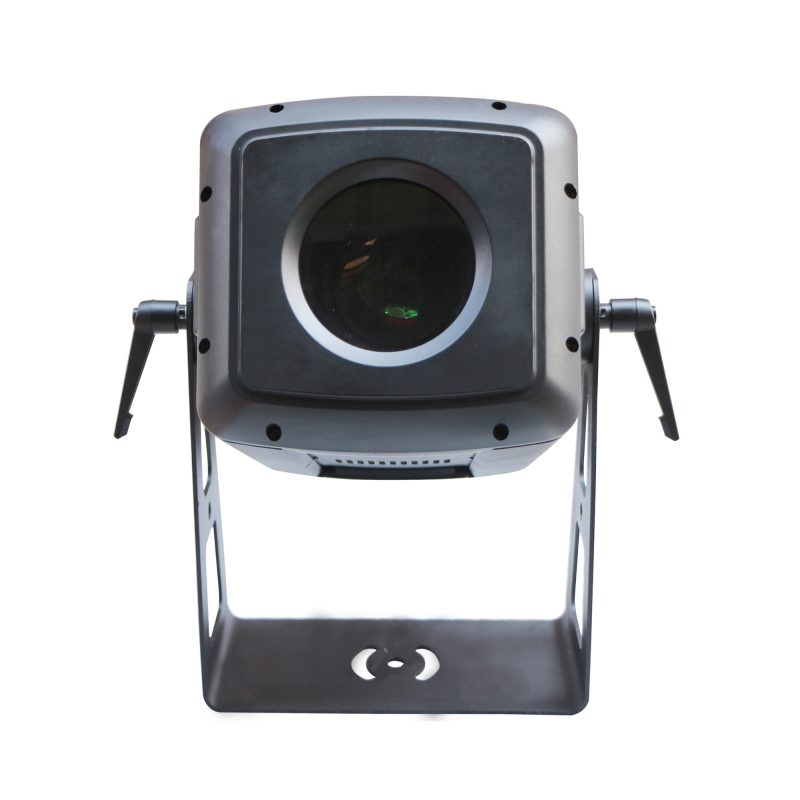

100W LED Outdoor Image Projection Light

The 100W gobo lighting can be showcased on the walls, ceiling of your venue, to immerse your guests in nature. Have you ever attended a night wedding and immersed yourself in the blue sky and white cloud? Custom wedding gobos of clouds played an important role in the veneue. In gobo design, white clouds are usally matched with blue sky. Dancing on the sea with clouds in the background is a popular part of wedding.

The cloud wall projection lamp or cloud ceiling projection lamp installs with 100W pure white LED, 4 changeable rotating cloud gobos. The beam anlge (30°, 40°, 50°, 60°) is freely selectable. Other optical functions like focus, dimmer, and strobe are equipped.

It’s simple and easy to change color gobo via opening the cover with hatches on the top the ceiling projection light. Users could change various of color glass gobos according to different venues, together with the built-in self-configured programs.
