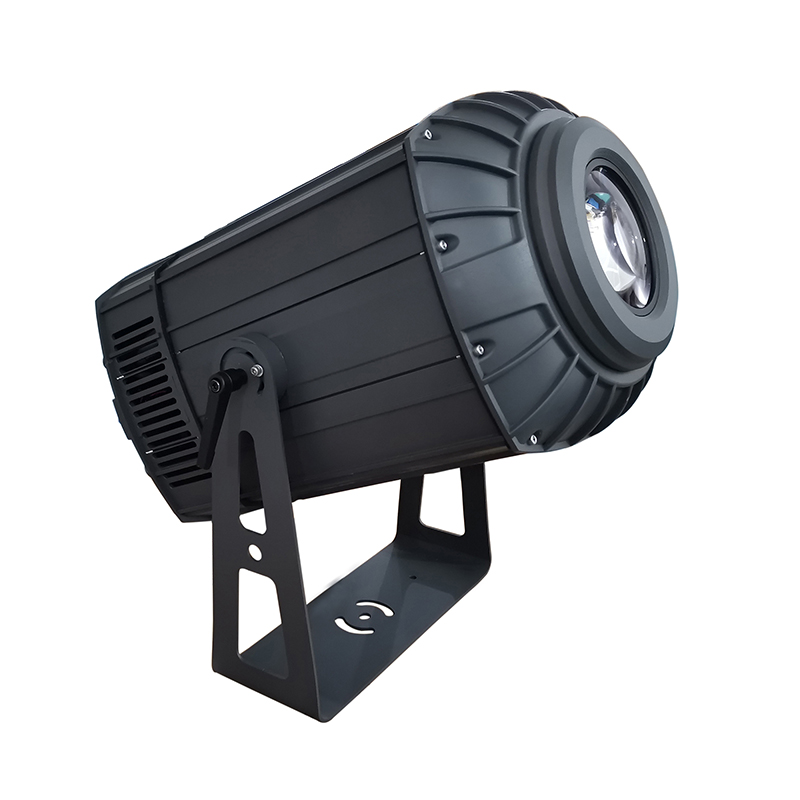

China Outdoor Zoom Customized Gobo Projector Light LED Image Projection FD-IWD300Z


Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
300W White LED
Built-in LED display
30 self-configured auto programs
4 control modes
Vivid and natural water streak
Waterproof IP65
  • FD-IWD300Z

  • Fondlites

Led Source

Source: 300W White LED

CT: 6500K

Life: >20,000 hrs


Power Supply: AC 100-240V, 50/60Hz

Power Consumption: 400W

Optical System

Zoom: 11°-46° linear zoom

Focus: Motorized linear focus

Prism: 4-facet circular rotating prism

Dimmer: 0-100% smooth dimmer

Strobe: 1-25 Hz variable speed


1 Color Wheel with 6 filters plus open, full and half color function, two directional rainbow effects.


1 rotating Gobo Wheel with 7 interchangeable glass gobos( Or 6interchangeable glass gobos plus open). Index, shake and two directional rotation.

Glass gobo outside Φ28mm, insideΦ22mm

Water Dynamic Effect

2 independent water wave glass wheels, two directional reciprocating rotation


Control Mode: DMX, Auto, Sound, Program

DMX Channel: 13CH

DMX Input: 3-pin Male signal cable

DMX Output: 3-pin Female signal cable


Protect Rate: IP65


Net Weight: 17.85kg

Gross Weight: 20.10kg

Dimension: 480 x 262 x 537mm

Package(1in1 carton): 620 x 425 x 350mm

China Outdoor Zoom Customized Gobo Projector Light LED Image Projection

China Outdoor Zoom Customized Gobo Projector Light LED Image Projection FD-IWD300Z

Powered by a bright 300W LED source, FD-IWD300Z is a LED exterior gobo projector which will create an exciting and charming atmosphere. It is a mid-end product specially designed for outdoor advertising and landscape lighting. To meet different kinds of requirements, R&D team design it into a multi-functional logo projector light. Users could choose it as a individual image projector light, a individual water wave light projector, or a multi-functional light combination of image and water wave effect according to their needs. 300W custom logo projector lights are welcomed.

Our 300W advertising logo projector outdoor comes with 1 color wheel with 6 filters plus open, 1 rotating gobo wheel with 7 interchangeable glass gobos(or 6 interchangeable glass gobos plus open), 2 independent water streak glass wheels and 4-facet circular rotating prism, which make the advertising logo projector light can bring you with endless creative freedom and amazing experience. The zoom range is from 11 degree to 46 degree.

The landscape led projector features 4 freely control modes including DMX, auto, sound, program, and 13 DMX channels. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.

The 300W advertising projectors outdoor is so fashion, effective and affordable with excellent good quality and high reliability. The aluminum housing and protect rate IP65 make it endure raining, cooling and dirty.

300W logo light projector outdoor can be used as an alternative medium for projecting company logo, trade name, signage, advertising, greeting and welcome, wedding monograms, warning, navigation and information signs, marking for weddings site, warehouse, meeting rooms, clubs, bars, restaurants, showrooms, promotion, and other environments.
