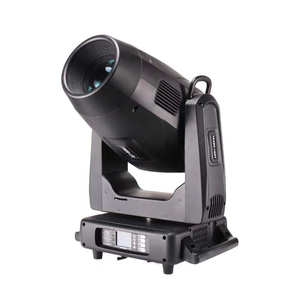

Waterproof Framing Shutter 700W LED Cmy Moving Head Lighting FD-LW700BSW

Share to:
Powerful 640W LED
LED Lifespan: 20000 hours
Advanced optical design
Beam Angle: 5°-50°
Display: LCD display
Protocols: DMX512, RDM
  • FD-LW700BSW
  • Fondlites

Light source
Light Sources: Powerful 640W LED
LED Lifespan: 20000 hours

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 145 mm
Beam Angle: 5°-50°

Control and Program
4-buttons touch panel
Display: LCD display
Protocols: DMX512, RDM
DMX Channel: 34
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit

Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction

Rotating Gobos
6 Interchangeable high-precision glass gobos, plus open
Adjustable-speed rotating gobo in both directions
Image diameter: 23 mm
Outside diameter: 28 mm
Thickness: 1.1 mm
Max. thickness: 4mm
"SLOT & LOCK" system for easy gobo replacement

Static Gobos
6 high-precision gobos, plus 2 open

Framing System
Shutter Blades: 4 Blades, each with separate movement and full blackout
Movement: Smooth with variable speed, ultrafast for creating mid-air effects
Positioning: The blades can be precisely positioned
Rotation: +- 60° of the complete framing system

Color Wheel
Color Wheel 1: 6 colors plus open
CMY Linear 100%

Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-220V~ 50/60Hz
Power consumption: 850 W
Power In/Out:Power Connector in/out
Data In/Out: 3pin or 5-pin XLR, True One connector


Product Size:705*326 *473 mm

Product Weight:43 kg

Flight Case Size:935 *465*605mm

Flight Case Weight:71kg

Work environment

Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65

700W LED Beam Spot Wash Framing CMY Moving Head Light IP65


The 700W LED Spot Profile FD-LW700BSW is a multi-environmental, maintenance-free white LED moving head with IP65-rating and a bright color output, generating a narrow beam of light in spot position.

It features in strong beam effect, clear gobo, fast and smooth running, precise positioning and uniform pure color, sharp framing cutting.

The fixture has a super high and long lighting distance range, with 6 glass rotating gobos, 6 fixed gobos+open, one 3-facet prism, 6 colors with white.

Its framing system allows the fixture to perform beam-shaping images and projections via individually controllable blades with module rotation.

It is capable of an even field beam projection with sharp imaging and no color aberrations.

This 700W LED Spot Profile Moving Head Light could be used for large stadiums, large performances and other professional venues and all-weather environment.
