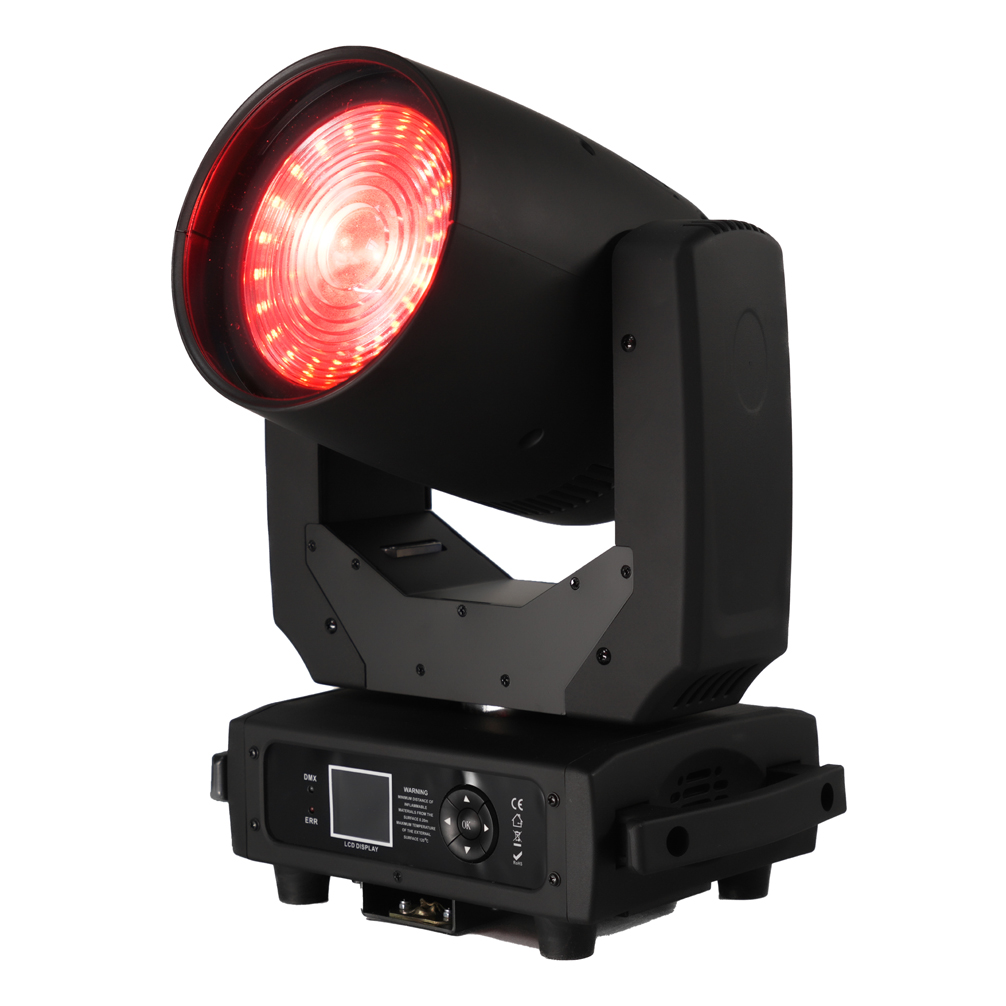

FD-LM150L
Fondlites
Light Source
Wash Beam with Fresnel Lens
1 pcs 120W RGBL LED
24 pcs 5050 X 0.1W RGB LEDs for ring
Power
Input Voltage: 100-220V, 50/60Hz
Power Consumption: 150 W
Optical system
Advanced optical system
Wash Beam with Fresnel Lens
zoom effect
Frost
Control and Program
Channel mode : 20CH-1/36CH/108CH/20CH-2/26CH
Very fast pan/tilt movements
LCD display
Beam angle/zoom: 4°-48°
Electronic dimmer: 0 - 100 %
Electronic shutter: 0 - 20 Hz
Fuse :4A
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Connectors
Power connection: Power Twist In/Out
DMX connection: 5-pin XLR In / Out
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20
Package
N.W :8 KG G.W: 9KG
Packing size:52*37.5*29CM
