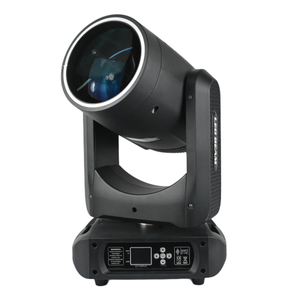

FD-LM280BSW
Fondlites
Light Sources
Led Source : 280W Led
Lifespan:20000 hours
Beam Angle:9－30°
Power Supply
Voltage:AC100-240V 50-60Hz
Max Power :300W
Optics
Beam angle: 9－30°
Dimmer: 0-100% linear dimmer
Fixed Color Wheel : 9 color +white
Static Gobo Wheel : 9 gobos +white
Rotating Gobo Wheel: 7 gobos +white
Prism: one 3 prism;
Atomization: 1 independent atomization effect, the light spot is soft and natural
Control
Control：DMX512, Auto-run, master/slave
Channels: 17 channels
Movement
Horizontal scan: 540°
Vertical scan: 270°
Connections:
DMX connector: 3Pin XLR
Working Environment
Working temperature: -20-40℃
IP rate: IP20
Package
Net weight: 13kg
Size:30*20.5*54.2mm
