Availability: | |
---|---|
Quantity: | |
FD-LM1940B
Fondlites
Light Source
Light Sources: Powerful 19*40W Osram RGBW LED
LED Lifespan: 50,000 hours
Power
Input Voltage: 100-220V, 50/60Hz
Power Consumption: 640 W
Optical system
Advanced optical system
Beam Angle: 3.5°to 50°
Control and Program
Display: LCD display
Protocols: DMX512, RDM
DMX Channel: 21/23/35/78/92/97/99ch
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Color
Rich Color, 65536 Level Dimming
Connectors
Data In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65
Package
Product Size:434*298*530mm
Product Weight: 22 kg
Flight Case Size:800*495*720mm
Flight Case Weight:74kg
Light Source
Light Sources: Powerful 19*40W Osram RGBW LED
LED Lifespan: 50,000 hours
Power
Input Voltage: 100-220V, 50/60Hz
Power Consumption: 640 W
Optical system
Advanced optical system
Beam Angle: 3.5°to 50°
Control and Program
Display: LCD display
Protocols: DMX512, RDM
DMX Channel: 21/23/35/78/92/97/99ch
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Color
Rich Color, 65536 Level Dimming
Connectors
Data In/Out: 3pin or 5-pin XLR, True One connector
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP65
Package
Product Size:434*298*530mm
Product Weight: 22 kg
Flight Case Size:800*495*720mm
Flight Case Weight:74kg

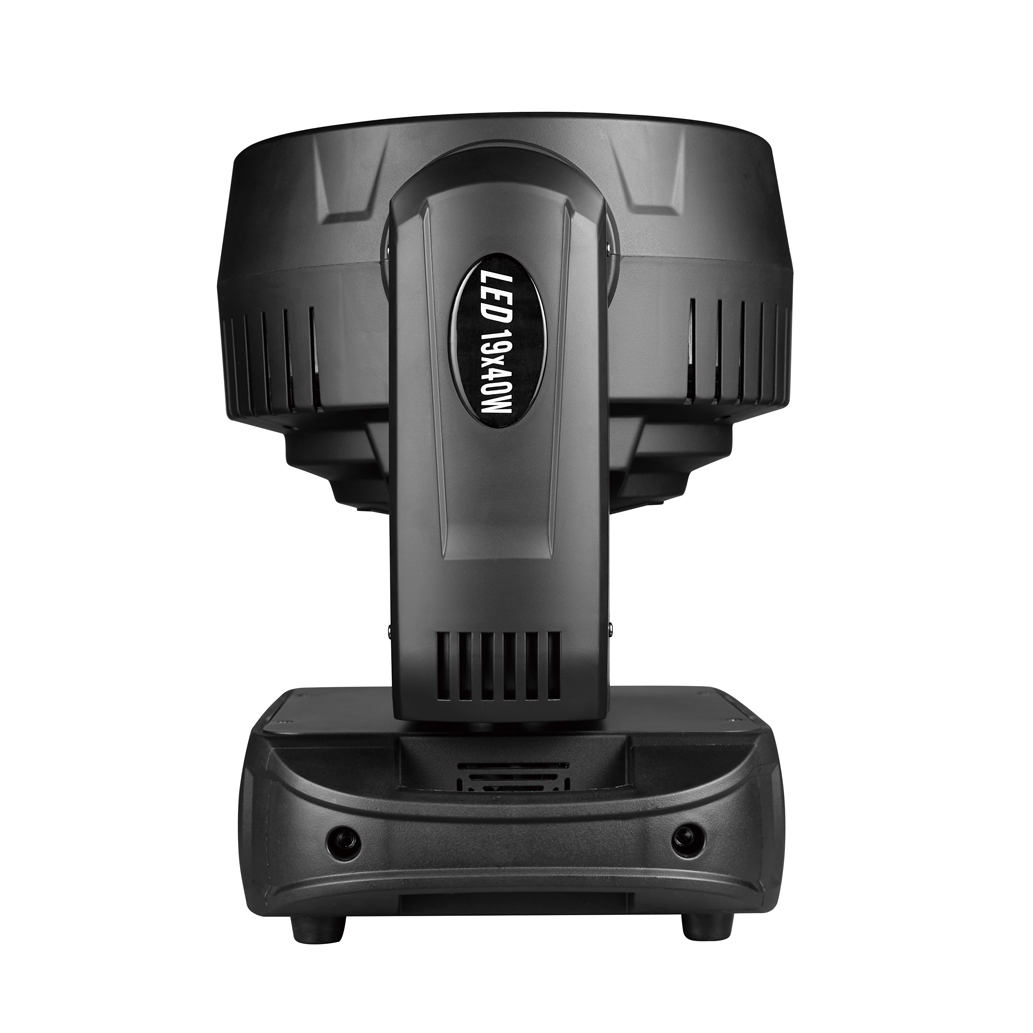

19*40W LED Big Eye Zoom Wash Moving Head Light
Fondlites FD-LM1940B is RGBW Osram LED moving head, a high-power wash light. This model is fitted with 19*40W Osram LED with a output of almost 100,000 lumens at 15 meters. It features a wide wash range from 3.5°to 50°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM compatibility.
Its new heat dissipation structure which combines technology of water cooling and semiconductor refrigeration allows for rapid heat dissipation from the working temperature. Thanks to the high efficient heat dissipation the metal structure could be replaced with lighter and stonger industrial plastics, bringing the overall weight to 22kg. Instead of using the traditional waterproof glue with associate potential risks.
FD-LM1940B is a fixture with a snap-in structure in order to ensure the integrity of the internal components. This fixture could be used for large stadiums, large performances and other professional venues and all-weather environment.
19*40W LED Big Eye Zoom Wash Moving Head Light
Fondlites FD-LM1940B is RGBW Osram LED moving head, a high-power wash light. This model is fitted with 19*40W Osram LED with a output of almost 100,000 lumens at 15 meters. It features a wide wash range from 3.5°to 50°, 16 bit dimming,with four optional dimming curve models, pixel effects and RDM compatibility.
Its new heat dissipation structure which combines technology of water cooling and semiconductor refrigeration allows for rapid heat dissipation from the working temperature. Thanks to the high efficient heat dissipation the metal structure could be replaced with lighter and stonger industrial plastics, bringing the overall weight to 22kg. Instead of using the traditional waterproof glue with associate potential risks.
FD-LM1940B is a fixture with a snap-in structure in order to ensure the integrity of the internal components. This fixture could be used for large stadiums, large performances and other professional venues and all-weather environment.
