FD-LM740B
Fondlites
Light Source
Light Sources: Powerful 7*40W Osram RGBW LED
LED Lifespan: 50,000 hours
Power
Input Voltage: 100-220V, 50/60Hz
Power Consumption: 350 W
Optical system
Advanced optical system
Beam Angle: 4.5°to 45°
Control and Program
Display: LCD display
Protocols: DMX512/Master-Slave/Auto Run/Music/RDM
DMX Channel: 21CH/49CH
Firmware Upgrade: Upgrade via DMX link
Pan/Tilt Resolution: 16 bit
Pan & Tilt
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction

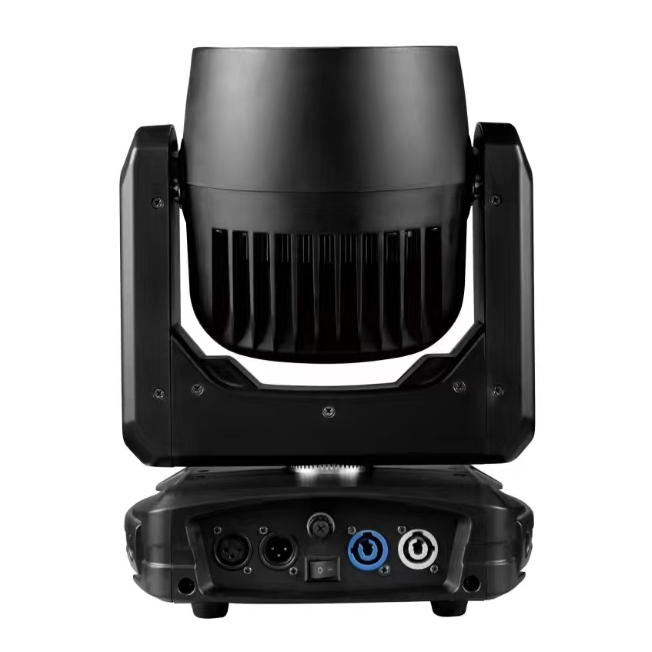

Connectors
Data In/Out: 3-pin XLR sockets
Work environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
Protection Rating: IP20
Package

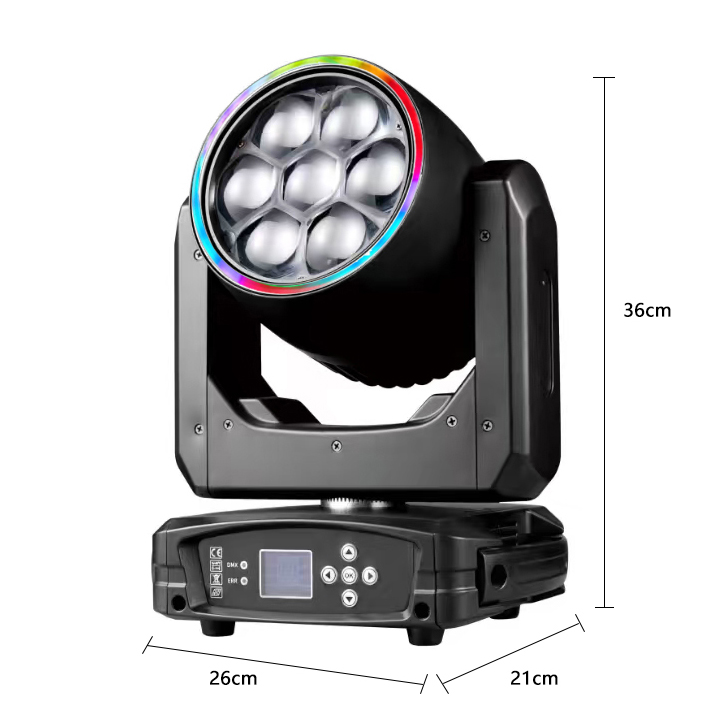

Product Size:360mm×260mm×210mm
Product Weight:6kg
Carton Size：46*29*37cm
Gross Weight：7.6kg
4in1 Flight case Size:76*51*56cm
Flight case Gross Weight:47kg
