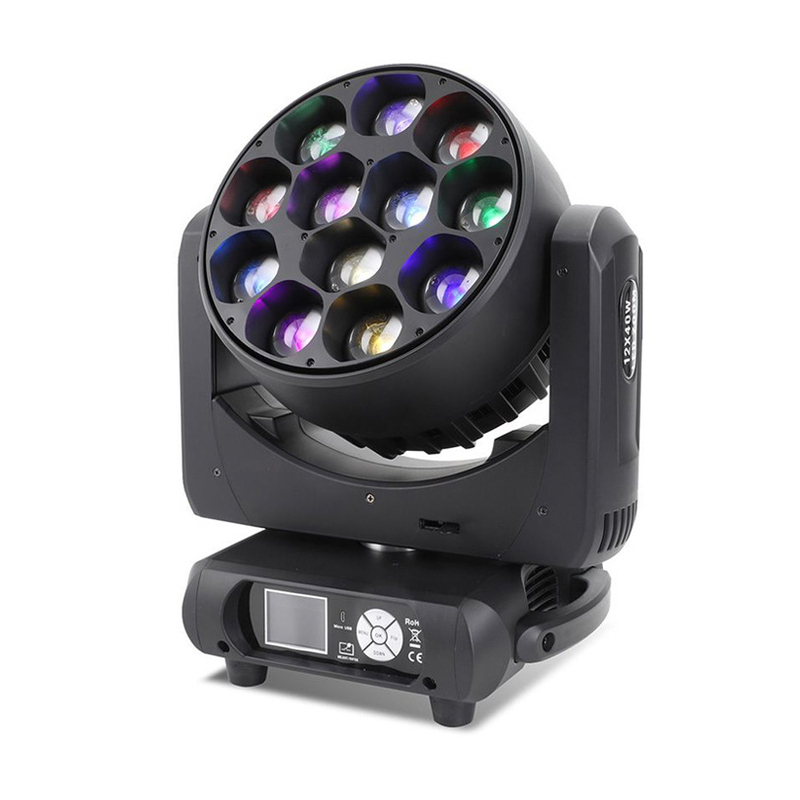

12x40W Led Wash Moving Head Mini Light for Stage Show FD-LM1240

Share to:
12pcs 40W LED lamp beads
Color: RGBW
0-100% linear dimmer
1-25 times/second
DMX512 Control
  • FD-LM1240
  • Fondlites

Light Sources

Light source : 12pcs 40W LED lamp beads


Color: RGBW

Power Supply

Voltage:AC100-240V  50-60Hz

Power :550W

Optical System

Dimmer: 0-100% linear dimmer

Focus: electronic focus

Strobe: 1-25 times/second


Horizontal scan: 540°

Vertical scan: 270°


Control:DMX512, Auto-run, master/slave,RDM

Channels: 11/17/18/58CH

Display mode: LCD touch color screen, can be reversed 180 ° display


Housing Material:Aluminum

Housing Color: Black


DMX connector: 3/5 pin XLR

Working Environment

Working temperature: -20-40℃

IP rate: IP20


Gross weight: 19KG

Carton size: 580*500*375MM

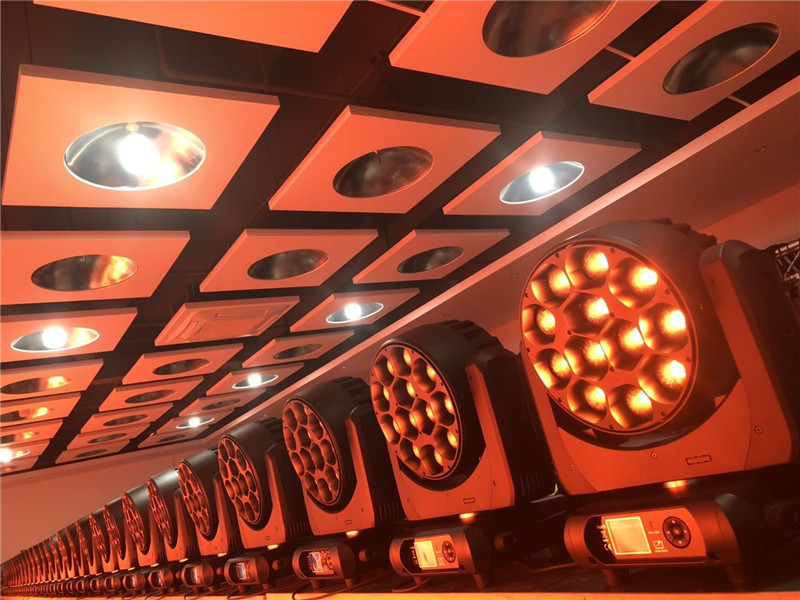

12pcs 40W Led Moving Head Light for Stage Show


FD-1240 is a zoom LED moving head washing light with novel design, flexible, small size . Beam angle is 5°-50° with smooth, fast and quiet zoom . 12pcs 40W high-brightness and stable OSRAM 4-in-1 LED lamp beads (RGBW), organically combined with 12pcs high-definition optical lenses. The product features include variable speed closing light/strobe effect, built-in various self-propelled programs and macro function effects, and it is simple and easy to use. there are two channel modes to choose from, using a quick-locking pendant.

It is a high-efficiency LED dyeing light that combines beam, image, and unique effect lights at the same time. 5~50 degree ultra-large zoom zoom, free switching from beam to dyeing.

Each LED light bead can be individually controlled to create colorful effects. The front lens can be rotated infinitely in both directions, and through the combination of color and dynamic graphics, its effect is like blooming and closing like petals. Seamless splicing lens disk design (like honeycomb), aspheric lens structure. The color temperature can be adjusted linearly, and the Osram single 40W RGBW lamp bead has a high color rendering index, which fully meets the requirements of TV broadcasting.
