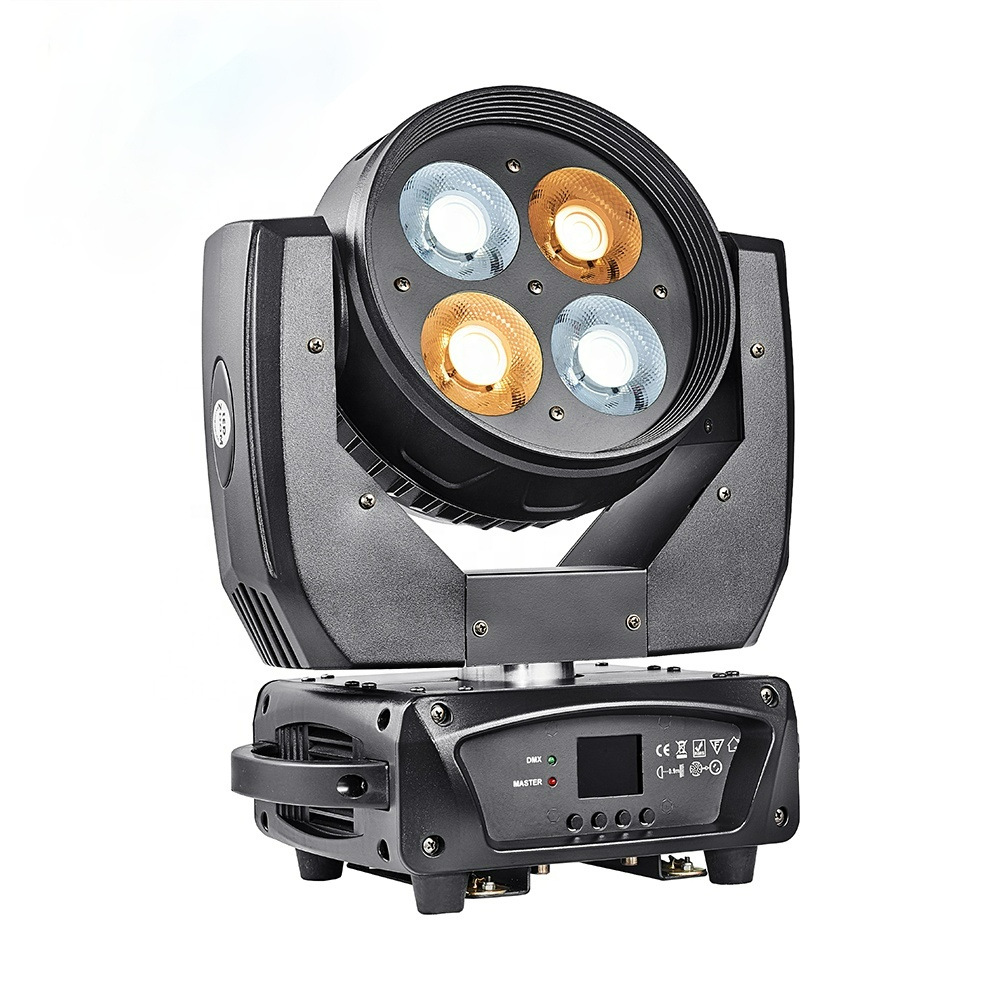

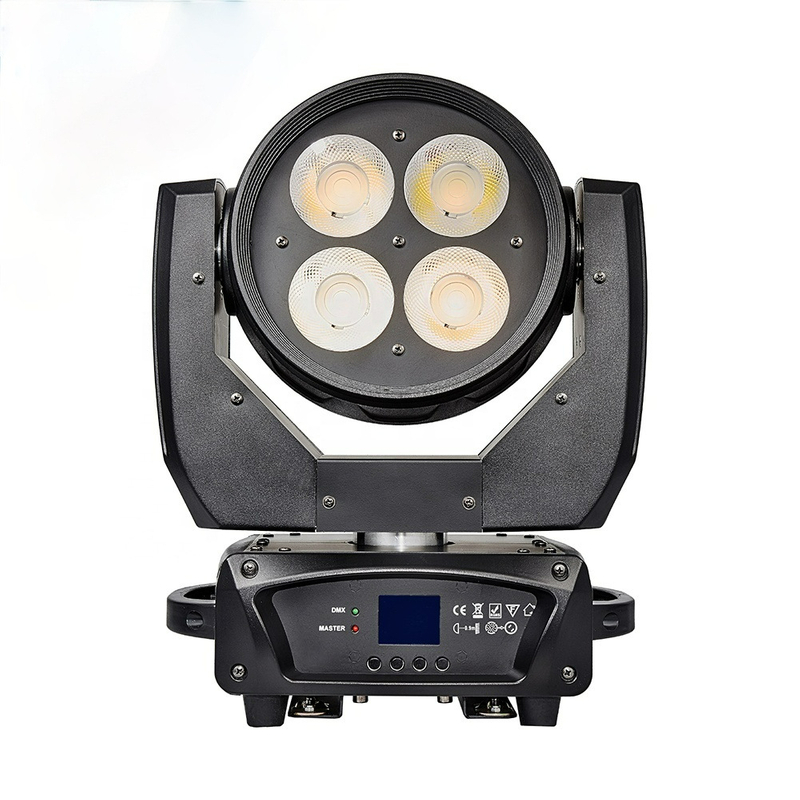

FD-LM450
Fondlites
Light Source
Leds: 4pcs 50w high brightness LED (warm white 2*50W+white 2*50W)
Lifespan:50000hours
Beam angle: 15°
Color: Cool white&Warm white mixed color
Projection distance: 4-30 meters
Power Supply
Voltage:AC100-240V 50-60Hz
Power :260W
Optical System
Optics: High-precision optical lens.
Dimmer: 0-100% linear dimmer
Strobe: 1-25 times/second
Movement
X-axis : 540° (8/16bit precision scan)
Y-axis: 270° (8/16bit precision scan)
Control
Control panel: LCD display
Control protocol: DMX512, master-slave,Auto-run
Control channels: 14 DMX Channels
Construction
Housing Material:ABS+aluminum plate+PMMA
Housing Color: Black
Cooling system:Mute Fan
Connections
DMX connector: 3Pin XLR
Working Environment
Working environment: -35°C to 45°C
IP rate: IP20
Packages
Product Size: 450*270*390mm
Gross weight: 7.5kg
